System Components

System component pages include technical data sheets, setup instructions, and operation information.

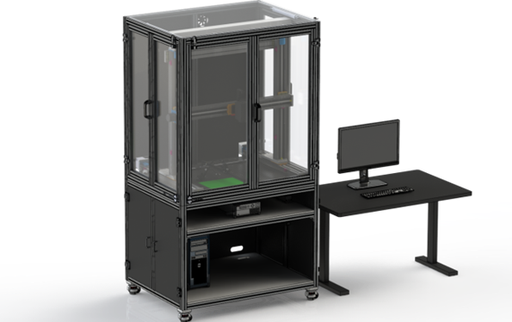

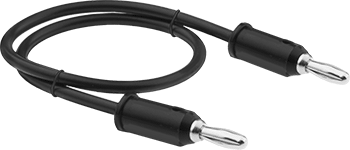

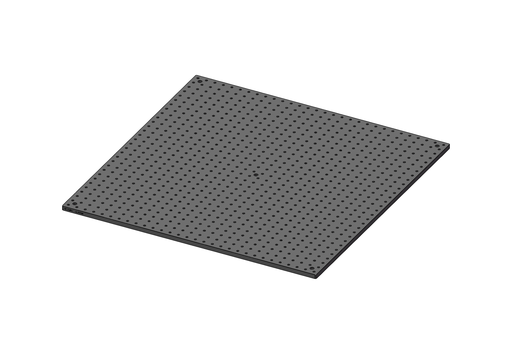

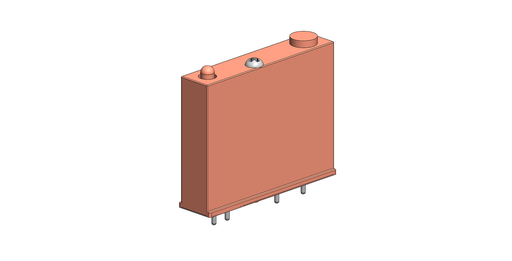

Device XYZ Needle Probe Test Leads -20AWG stranded copper wire -Flexible silicone wire insulation -1.5m red test lead, 2mm banana, tinned end -1m red test lead, 5mm banana, tinned end -1.5m black test lead, 2mm banana, 5mm banana	System Enclosure 750 Product Information: https://www.optotherm.com/shop/pn0412	Optical Mounting Table 750 Product Information: https://www.optotherm.com/pn0411	High Frequency Relay Module, Set of 8 (Replacement Part) -100VDC max, 0.5 Amp max, >20V 10VA max -Set of 8

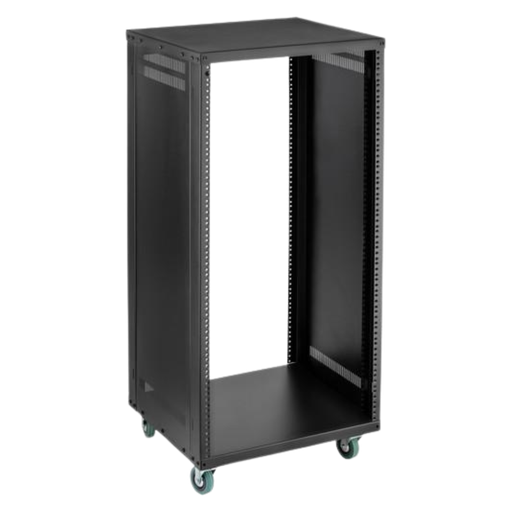

Sentris System Equipment Rack x1 22 RU Equipment Rack x1 Equipment Rack Shelf x1 Equipment Rack Drawer x1 16A Equipment Rack Power Distribution Unit (PDU)	Device Flip Probing Platform	Device Probing Platform Product Information: https://www.optotherm.com/pn0334	Sentris Toolbox Product Information: https://www.optotherm.com/pn0333

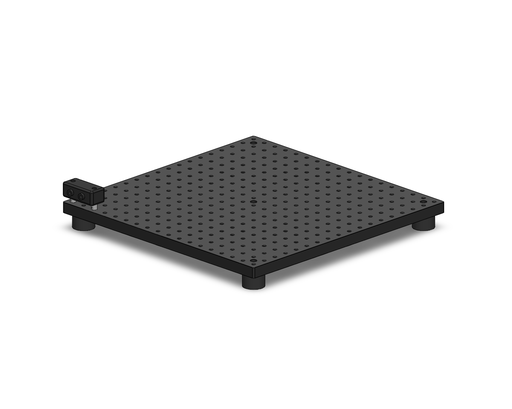

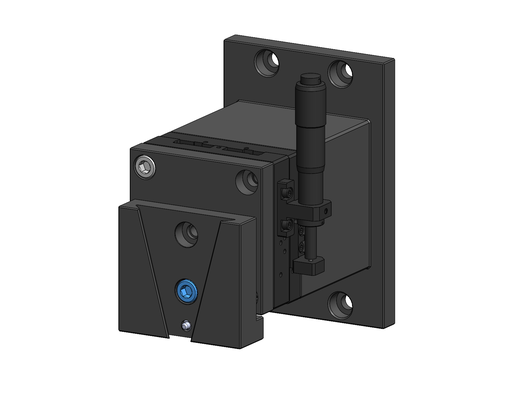

Liquid Coolant Heat Exchanger with Hardware Product Information: https://www.optotherm.com/pn0317	Optical Mounting Table 450 Included: - 4 Vibration isolation mounts - ESD Hub	450 Camera Bracket - Quick Mount to Vertical B Stage Product Information: https://www.optotherm.com/pn0313	Manual Z Camera Positioning Stage 380

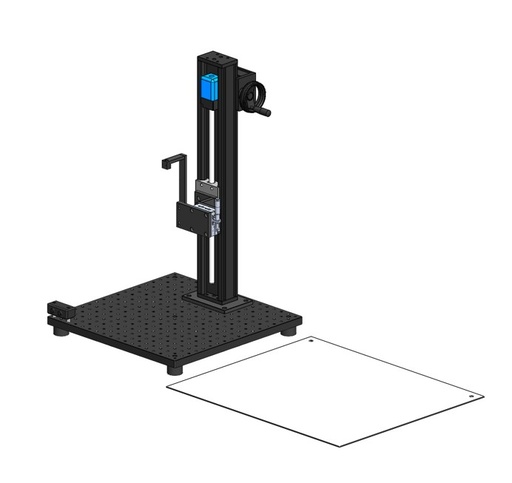

Camera Positioning System Manual Z 450 Product Information: https://www.optotherm.com/pn0314	Model Comparison Software Module MC is a process of comparing the thermal behavior of an electronic device to known operational devices as the devices are electrically exercised.	Sentris Warranty - Additional 1 Year -Description- Add one additional year to the existing Sentris system one-year warranty UNIT PRICE IS 10% OF TOTAL SYSTEM LIST PRICE	Thermal Training Test Chip Product Information: https://www.optotherm.com/pn0308

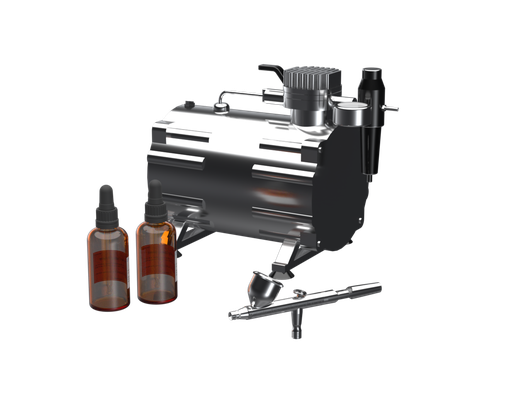

Emissivity Coating Equipment -Description- The emissivity coating increases the surface emissivity to approximately 0.50, depending on coating thickness and uniformity. After the coating is applied, Emissivity Tables or Region Emissivity software compensation can then be performed to obtain accurate temperature measurements. The coating can easily be removed with a nonflammable and low-toxicity solvent. -Included Components- Airbrush kit, emissivity coating, emissivity solvent -Features- The emissivity coating is only 1-2 microns, optically transparent but diffuses light, nonflammable, low-toxicity, and can withstand continuous temperatures of up to 200°C (392°F). -More Information- https://www.optotherm.com/shop/1180	Camera Positioning System Auto Z 600 Position a single camera to perform microscopic testing on a device. Motorized Z stages enable homing and the ability to reposition the cameras automatically to known precise positions. Includes 600x600mm optical mounting table, motorized Z axis stage, linear stage motor controller, ESD Mat, and system toolbox. Product Information: https://www.optotherm.com/shop/1176	Circuit Board XYZ Probe Positioner Set -Description- Make probe connections to pads, vias, and components on PCBs and PCBAs. The two XYZ probe positioners mount to a metric mounting table, reach up to 300mm away from their base, and are fully adjustable to all angles. Recommended for probing circuit boards up to 18x24 inches (~508x610mm). -Included Components- (x2) XYZ probe positioners, assorted needle probes, and mounting hardware -Features- Up to 300mm reach, course and fine adjustments, fully adjustable to all angles -More Information- https://www.optotherm.com/shop/1165	Device Probing Microscope Camera Product Information: https://www.optotherm.com/pn0293
