System Components

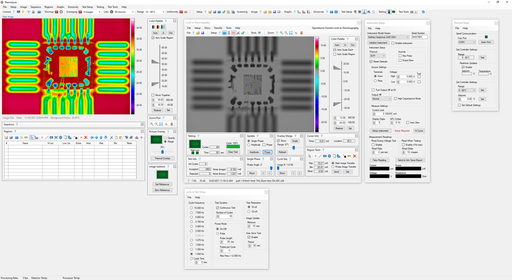

Thermalyze provides an extensive set of analysis tools to help you characterize the performance of electronic and micro-mechanical devices.

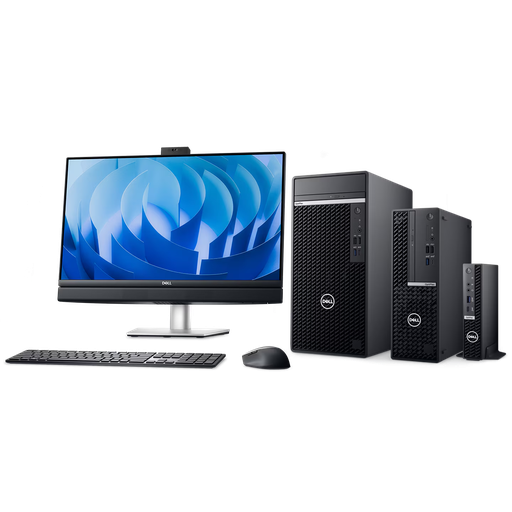

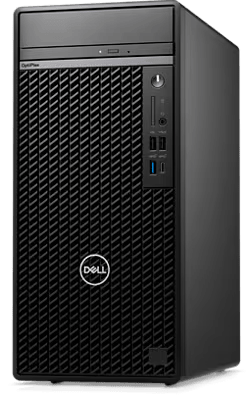

Fully configured computer tower for use with Power over CameraLink (PoCL) cameras. All hardware and software preinstalled and tested.
Includes:
-Dell OptiPlex Plus Tower PC
-Dell wireless keyboard and mouse
-4 port RS232 serial hub (USB)
-PCIe CameraLink Board

Includes:
-Dell OptiPlex Plus Tower PC

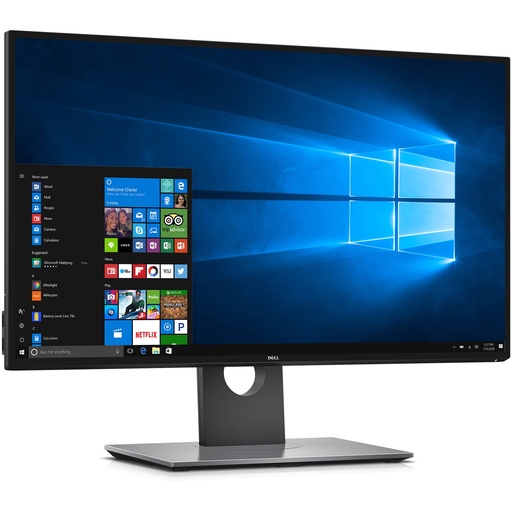

-Dell UltraSharp 27 inch Monitor
-Dell Soundbar
-Dell wireless keyboard and mouse
-4 port RS232 serial hub (USB)
-PCIe CameraLink Board

Fully configured computer tower for use with USB cameras. All hardware and software preinstalled and tested.
Includes:
-Dell OptiPlex Plus Tower PC
-Dell wireless keyboard and mouse
-4 port RS232 serial hub (USB)
-4 Port USB 3.0 PCIe Card
-[PN0178] Thermalyze Seat License USB Dongle

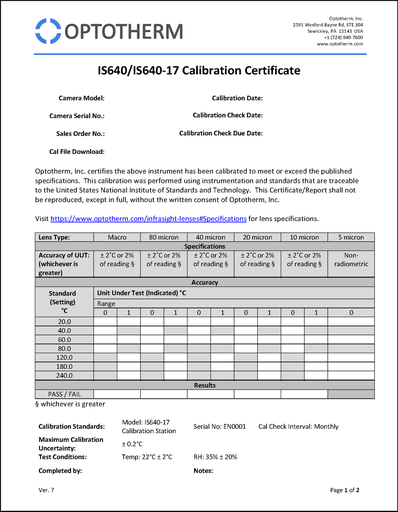

Lens Calibration is required for each lens and must be performed at Optotherm's calibration facility.

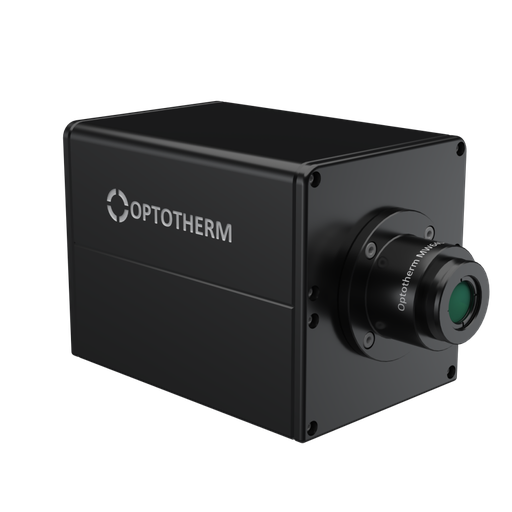

640x480 pixel, Mid Wavelength Infrared (MWIR) camera
*This product is export controlled and requires documentation and/or an export license prior to exporting*

640x480 pixel Short Wavelength Infrared Camera
5 micron detector pitch

*This product is export controlled and requires documentation and/or an export license prior to exporting*

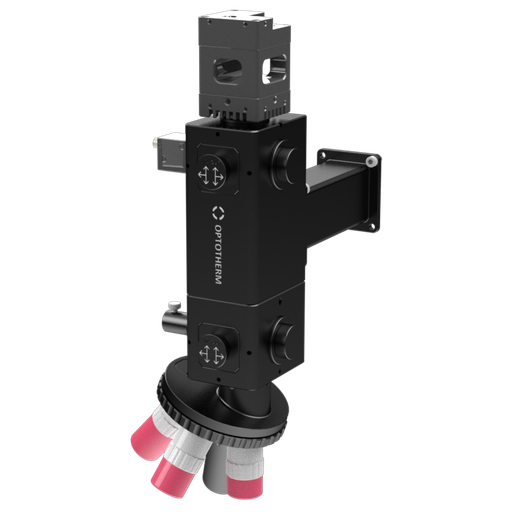

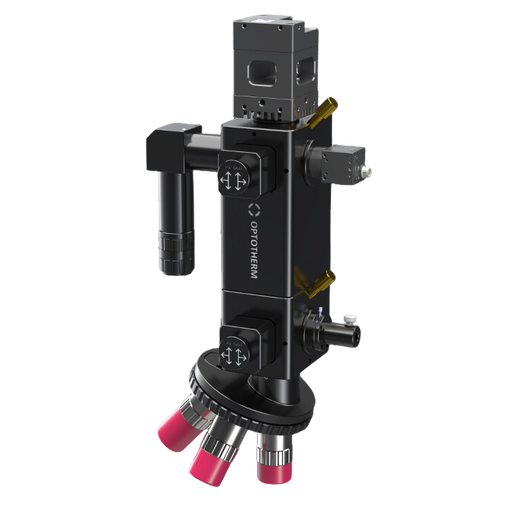

Univid Universal Video Microscope for mounting infinity microscope objectives and visible, NIR, and/or SWIR cameras.

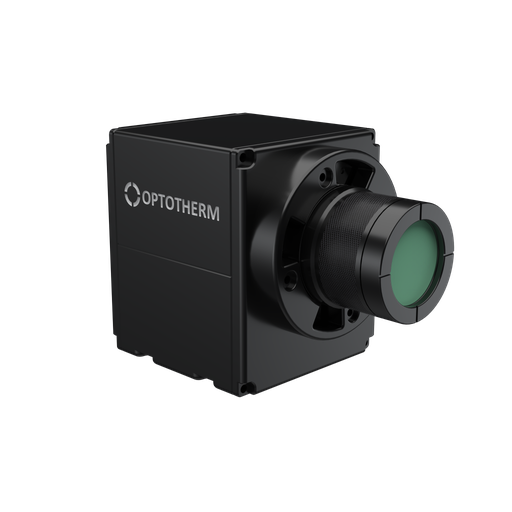

The IS640-17 LWIR camera (Infrasight 640-17) was designed for applications requiring high sensitivity, resolution, and accuracy. The design based on uncooled microbolometer technology to provide high performance and reliability at an affordable price point. A solid aluminum chassis improves thermal uniformity within the camera detector, optics, and electronics and facilitates optimum calibration accuracy over the ambient temperature operating range.
Includes IS640-17 camera, storage case, calibration certificate, and 5m USB3.0 cable.

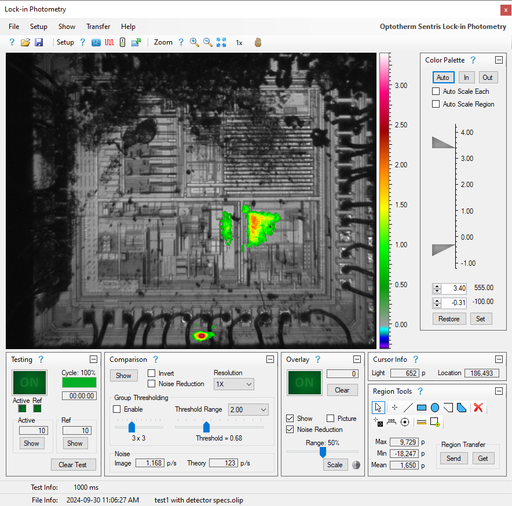

Thermalyze software module for Lock-in Photometry (LIP) testing. LIP is a tool similar to Emission Microscopy (EMMI) and Photon Emission Microscopy (PEM) and is used to detect and locate faults on semiconductor devices by detecting emitted photons in the short-wave infrared (SWIR) region of the electromagnetic spectrum.

Fully configured computer tower for use with Power over CameraLink (PoCL) cameras. All hardware and software preinstalled and tested.
Includes:
-Dell OptiPlex Plus Tower PC
-Dell wireless keyboard and mouse
-4 port RS232 serial hub (USB)

Does not include:
-PCIe CameraLink Board
