System Components

-Description-

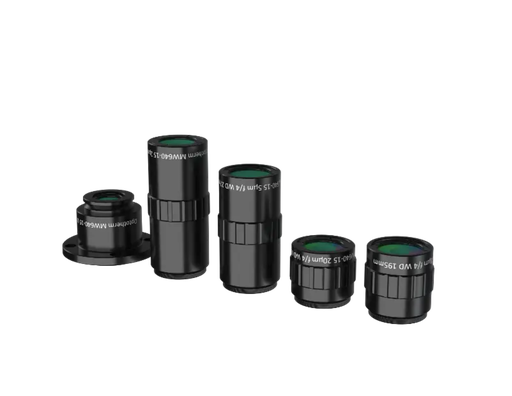

MW640-15 MWIR camera lens for temperature measurement and analysis.
Lens calibration is required to achieve radiometric measurements.

-More Information-
https://www.optotherm.com/shop/4534

-Description-

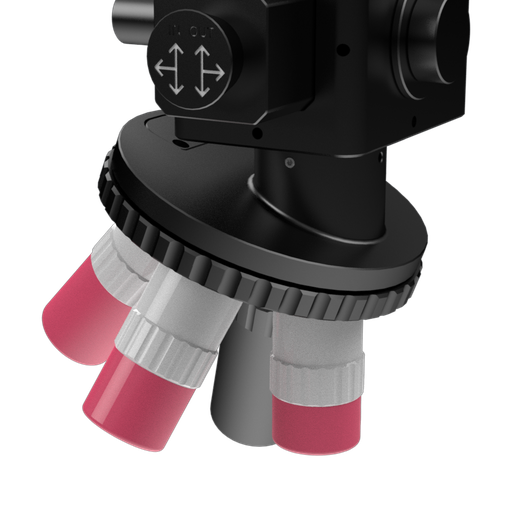

SWIR camera lens for microscopic analysis and Lock-in Photometry testing.

-More Information-
https://www.optotherm.com/shop/4532

Passive isolation table with a pneumatic cushion system. Reduces vibrations from nearby equipment and people.
Can be used with optical mounting tables ≤600x600mm.

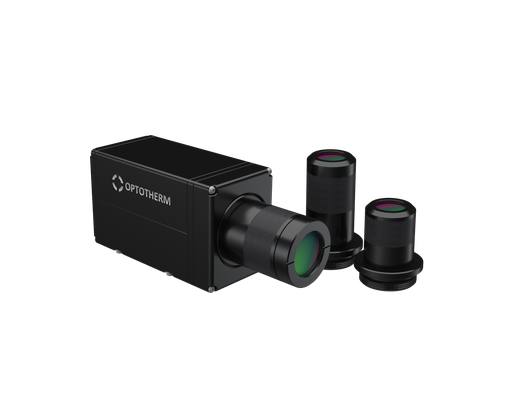

Lenses for the LW320-12 LWIR camera for microscopic temperature measurement and analysis.
Product Information: https://www.optotherm.com/shop/4382

-Description-

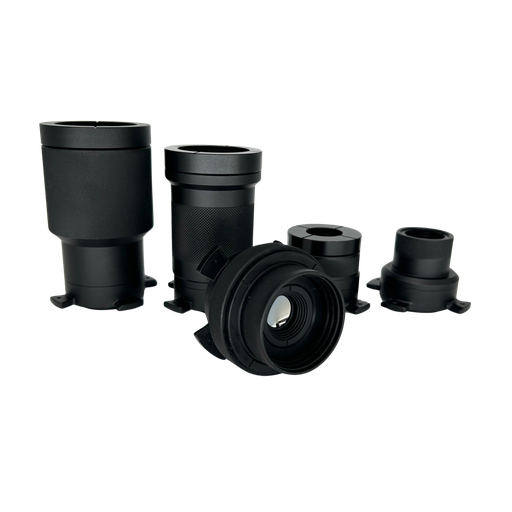

IS640-17 LWIR camera lens for temperature measurement and analysis.
Lens calibration is required to achieve radiometric measurements.

-More Information-
Product Information: https://www.optotherm.com/shop/4381

Relay for the Univid Microscope bypass / body shutter. Powers and controls the shutter during Lock in Photometry (LIP) tests.
Includes connections for up to two (x2) shutters.

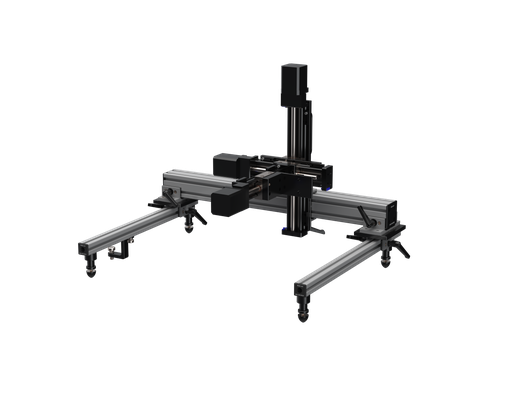

Position electronic device & mini PCB / PCBA testing equipment. Motorized Z stages enable homing and the ability to reposition the cameras automatically to known precise positions.
Includes motorized X&Y axis stages, linear stage motor controller, and necessary hardware.
254x254mm XY axis travel.
Product Information: https://www.optotherm.com/shop/1176

Shutter for the Univid Microscope bypass / body. Used to test devices that cannot be cycled with Lock in Photometry (LIP).

Univid Microscope lens adapter for wide FOV optics.
Product Information: https://www.optotherm.com/shop/1996

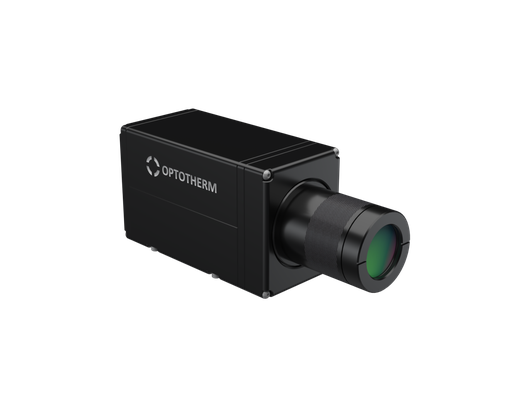

Long Wavelength Infrared (LWIR) radiometric Camera, 320x240p, 12-micron detector pitch
Includes LW320-12 camera, storage case, calibration certificate, and 5m USB3.0 cable.
Product Information: https://www.optotherm.com/shop/2217

*This product is export controlled and requires documentation and/or an export license prior to exporting*

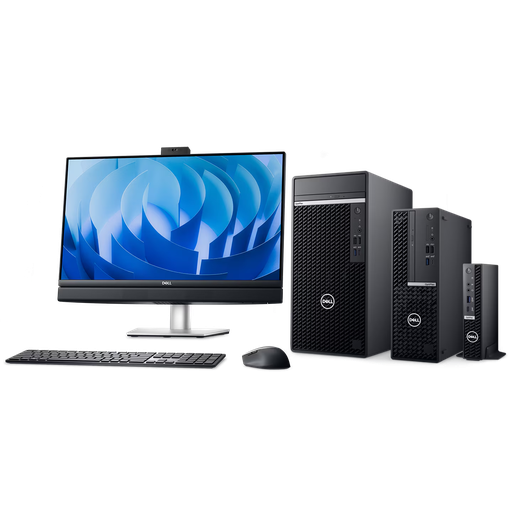

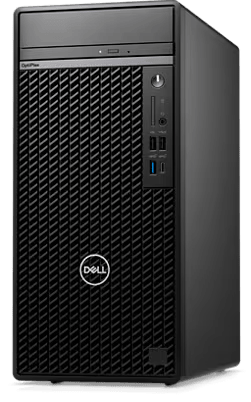

Fully configured computer tower for use with cameras requiring CameraLink communication. All hardware and software preinstalled and tested.
Includes, Dell OptiPlex Plus tower PC, wireless keyboard and mouse, 4 port RS232 serial hub (USB)
Does not include PCIe CameraLink Board

-Description-

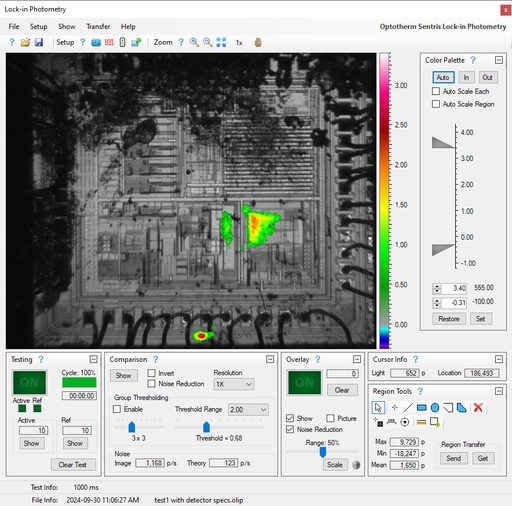

Non-destructive (NDT) tool similar to Emission Microscopy (EMMI) and Photon Emission Microscopy (PEM) and is used to detect and locate faults on semiconductor devices by detecting emitted photons in the short-wave infrared (SWIR) region of the electromagnetic spectrum.

-More Information-
Product Information: https://www.optotherm.com/shop/2152


*Lock-in Photometry requires an instrument to perform device bias. Device bias is typically accomplished by connecting the output of a power supply or source meter to exposed leads or pins of package devices or circuit boards, or by landing probes on bare semiconductor devices or circuit boards. A number of Keithley instruments can be directly controlled by Thermalyze software during LIP tests to cycle bias on and off. Refer to the Thermalyze.chm Help file for a list of supported Keithley instruments. *

-Description-

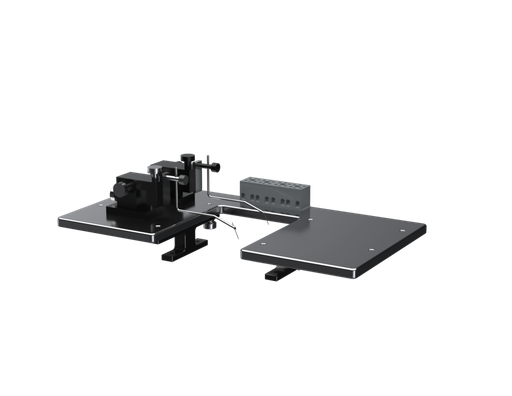

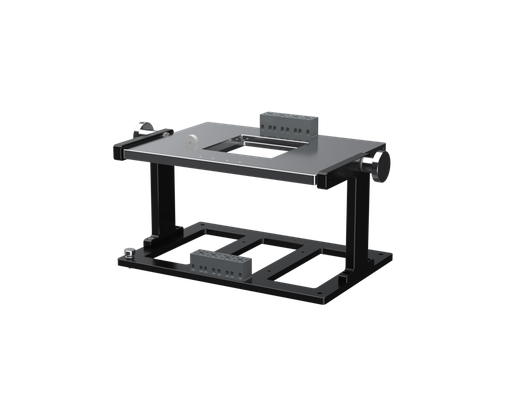

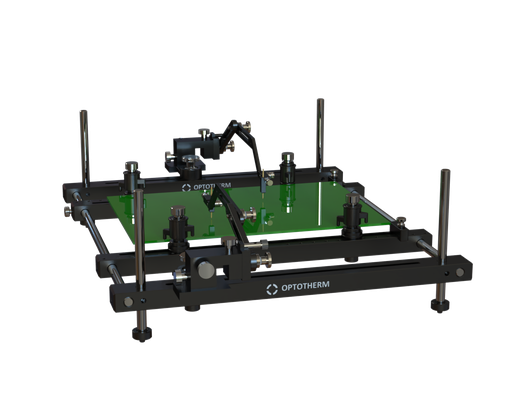

This fixture enables probing one side of a circuit board and imaging the opposite side. Mount the board with the spring-loaded clamps, make probe connections with the XYZ probe positioners, then flip the fixture to image the back side. Probe contacts are maintained at all times and can be adjusted by flipping the fixture right-side-up.

-Included Components-
(x2) XYZ Probe Positioners
(x4) adjustable circuit board holders

-Features-
Accommodates boards up to 340 mm x 345mm or longer (depending on surface mounted components)

-More Information-
https://www.optotherm.com/shop/2107

Product Information: https://www.optotherm.com/probe-needle-sets

-Description-

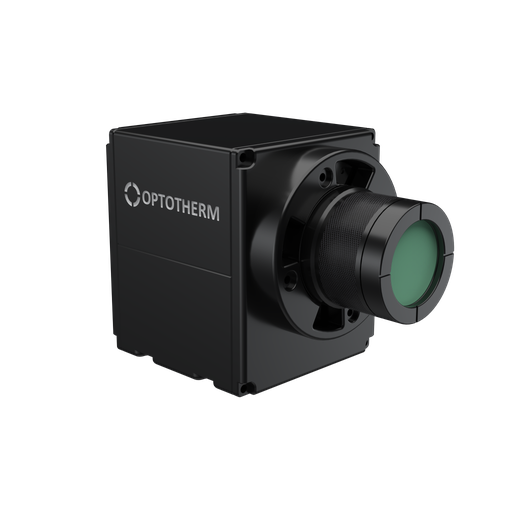

Radiometric Long Wavelength Infrared (LWIR) Camera

-Included Components-
IS640-17 camera, storage case, calibration certificate, and 5m USB3.0 cable

-Features-
640x480p, 17µm pitch VOₓ FPA with a spectral range of 7-14 µm

-More Information-
https://www.optotherm.com/shop/2002
*This product is export controlled and requires documentation and/or an export license prior to exporting*

-Description-

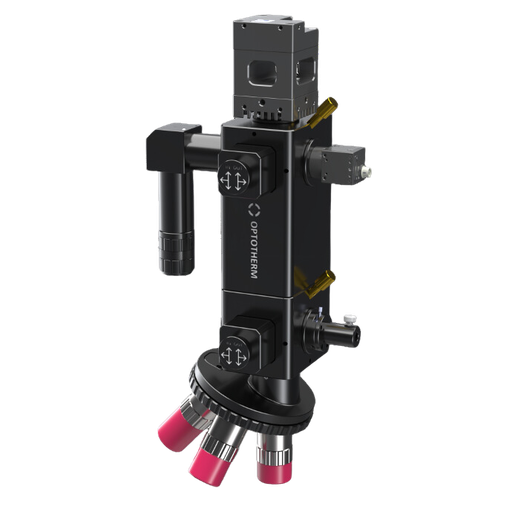

Universal video microscope for visible, NIR, and/or SWIR infinity microscope objectives and cameras;
used for photon emission testing, microscopic probing, and SWIR analysis.

-Included Components-
Univid microscope body configured with an integral 200mm 400-2000nm tube lens and a four (x4) position turret for microscopic objective lenses.

-More Information-
https://www.optotherm.com/shop/1995

Short Wavelength Infrared (SWIR) Camera for use with the Univid Universal Video Microscope, 640x480p, 5-micron detector pitch.
Includes SW640-5 camera, storage case, 5m USB3.0 cable.
Product Information: https://www.optotherm.com/shop/1994

*This product is export controlled and requires documentation and/or an export license prior to exporting*

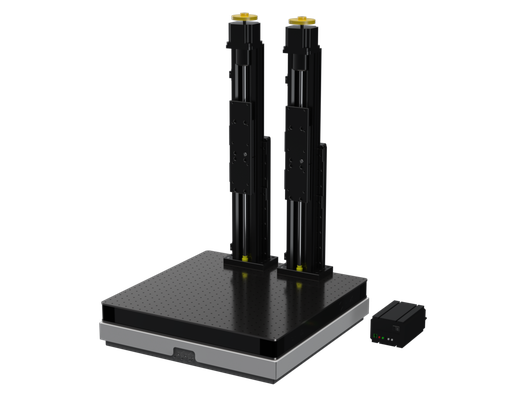

Position two cameras side-by-side to quickly switch between them. Motorized Z stages enable homing and the ability to reposition the cameras automatically to known precise positions.

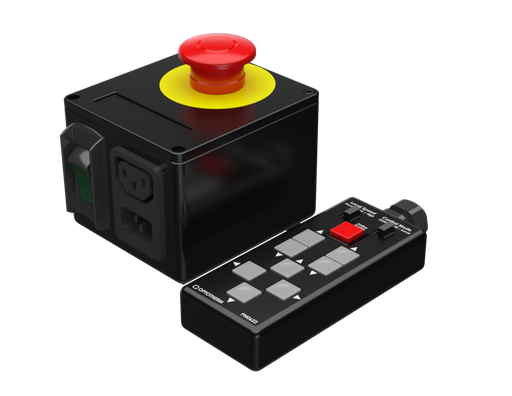

Includes 600x600mm optical mounting table, two motorized Z axis stages, linear stage motor controller & safety kit, ESD Mat, and system toolbox.
Product Information: https://www.optotherm.com/shop/1993
