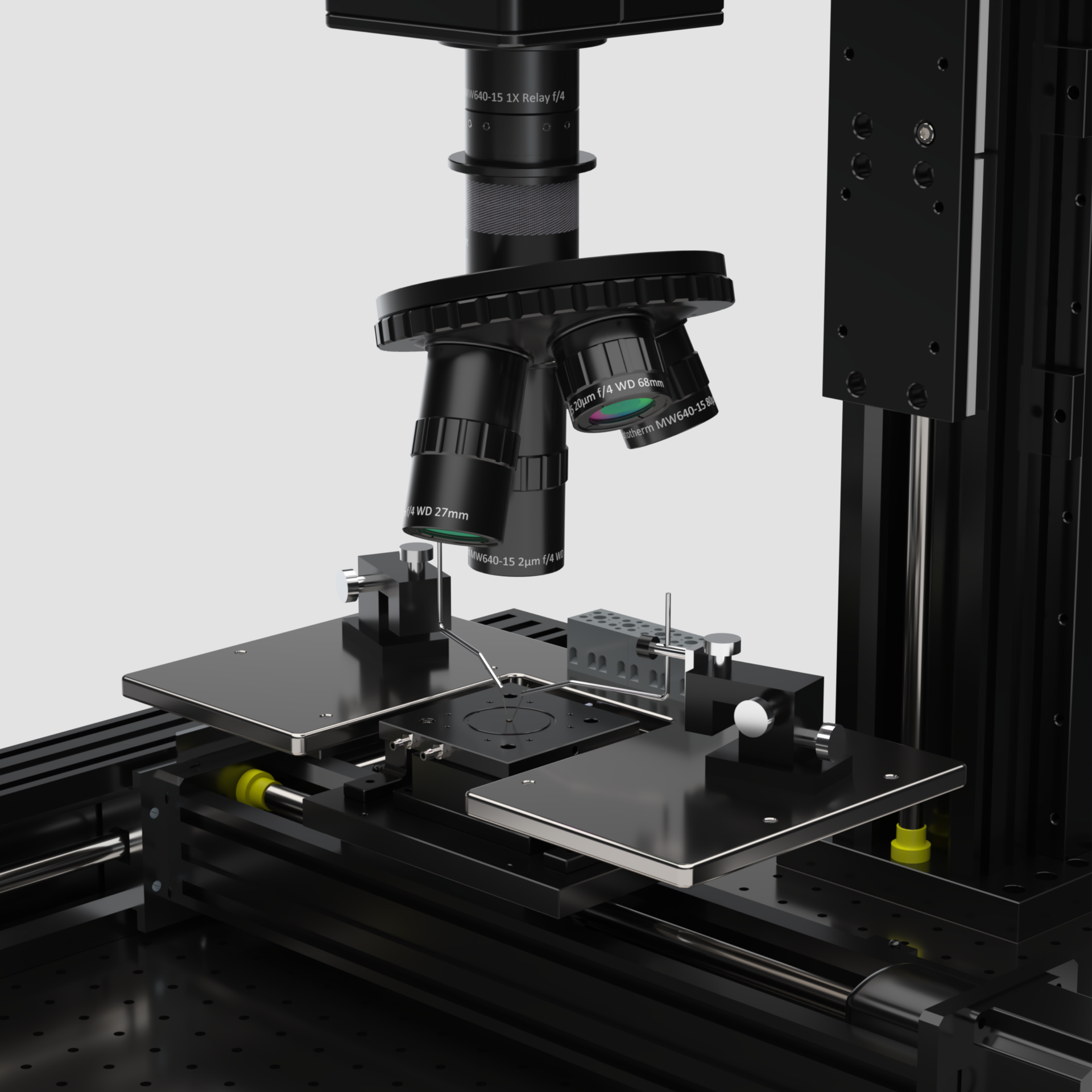

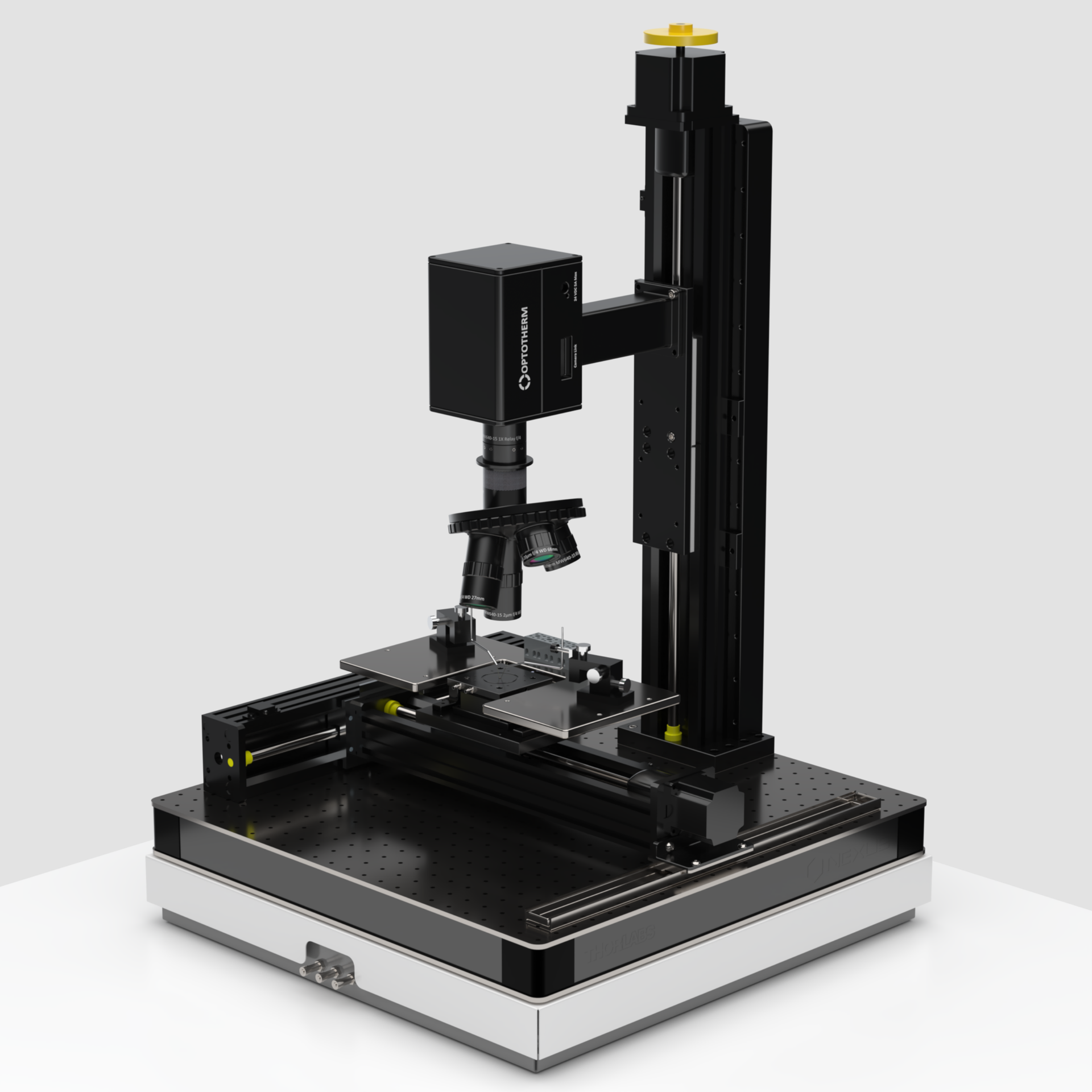

Sentris RD-MW

Active Semiconductor Device Analysis

  • Analyze operating temperatures on active devices including junction temperature measurement and transient analysis.
  • Incorporates our cryogenic cooled MWIR camera with sensitivity <20 mK and resolution of 2 µm.
Request a Quote

Explore this Sentris System

OverviewApplicationsFeaturesBase System ComponentsOptional Components

Overview

Applications

  • Active device spot temperature measurement
  • Junction temperature measurement
  • Transient temperature analysis

Features

  • Camera sensitivity (NETD) <20 mK
  • Available lenses: 2 µm, 5 µm, 20 µm, and 80 µm
  • True temperature measurement using emissivity tables
  • Maximum frame rate 1550 Hz

Base System Components
