Camera Positioning System Auto XYZ Desktop

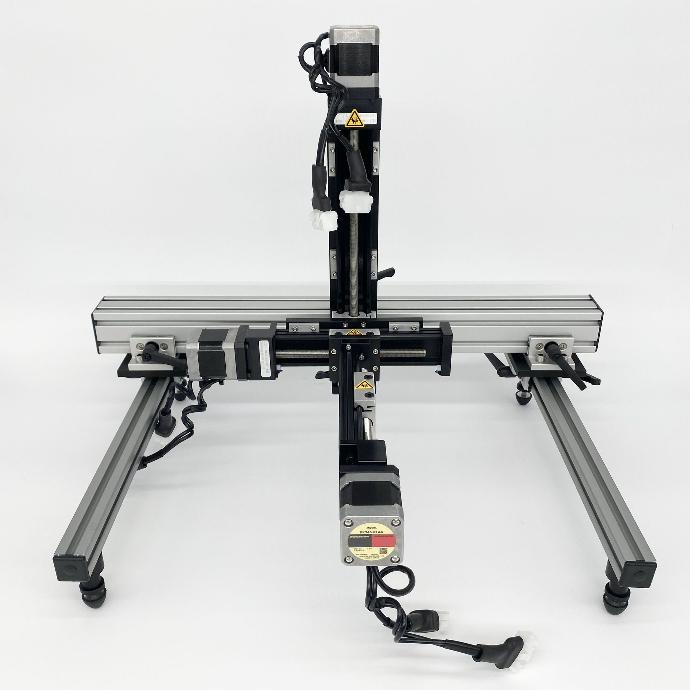

PN0480 is a portable and compact camera positioning system. The system's lightweight design allows for easy lifting using the handle along the z-axis. Motorized X, Y and Z stages enable homing and the ability to reposition the cameras automatically to known precise positions.

Applications
  • Semiconductor device failure analysis
  • Circuit board failure analysis

Request a Quote

Overview

Specifications

Setup

Operation

Troubleshoot

Maintenance

    Overview

Included Components

Required Products

Camera specific mounting brackets

Related Products

Manufacturer Information

Top of page

    Specifications

Weight (without camera)  6.25 kg
Dimensions (when in compact position and disregarding handles)43 x 43 x 55.6 cm
X travel 100 mm
Y travel 100 mm
Z travel 200 mm
