Camera Positioning Arm Manual XY

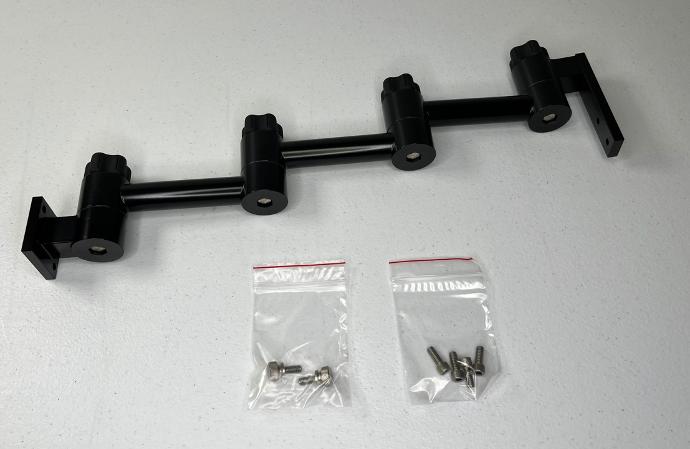

PN0292 adjusts to any position in the XY direction and mounts to these vertical stages:

Applications
  • Circuit board failure analysis

Request a Quote

Overview

Specifications

Setup

Operation

Troubleshoot

Maintenance

    Overview

Included Components

  • Mounting hardware

Required Products


Related Products


Manufacturer Information


    Specifications

Travel radius 500 mm

    Setup

Mount to Positioning System

  1. Mount the square bracket to the center four threaded holes of the linear stage of the positioning system so that it is centered on the stage using the four 1/4-20 screws provided.

Mount to Camera

  1. Mount the camera to [PN0292] using the two M6 screws provided.

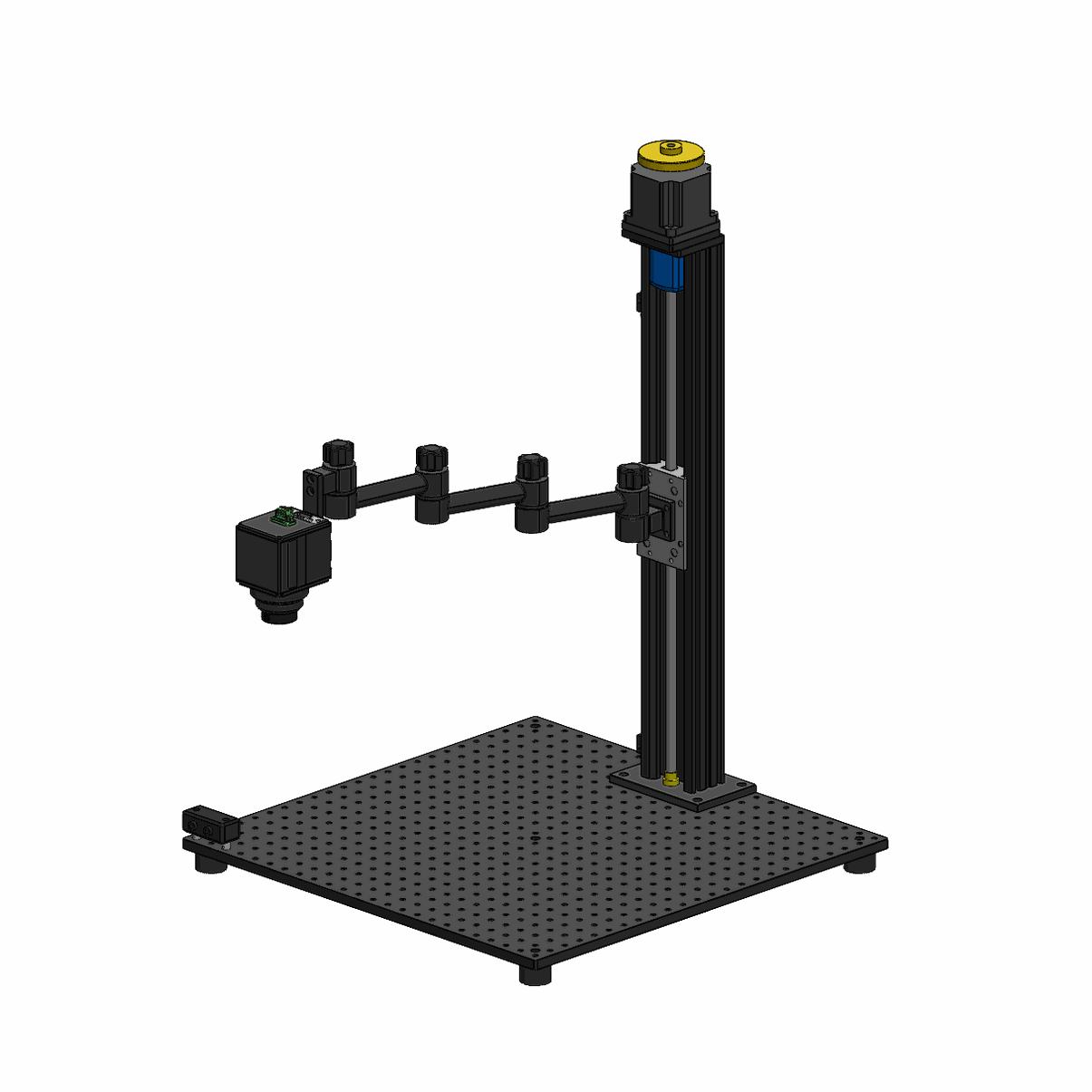

Figure 1: [PN0292] mounted to positioning system and camera
