Camera Bracket Kit for PN0293 and XSlide
PN0599 allows PN0293 Device Probing Microscope Camera to be mounted to these camera positioning systems:
Overview
Included Components
-
Camera bracket for PN0293 and XSlide
-
Mounting hardware
Required Products
Related Products
Manufacturer Information
Specifications
Setup
Installation
-
Attach PN0599 (Figure 1) to PN0403 Linear Stages Manual Z Auto Y 100 Left using four (3) 6-32 screws provided.
-
Insert PN0293 Device Probing Microscope Camera (lens down) into PN0599 and secure the lens using the M6 spring-loaded thumbscrew provided (see Figure 2).
Camera Damage: Hold the camera securely when handling and mounting.

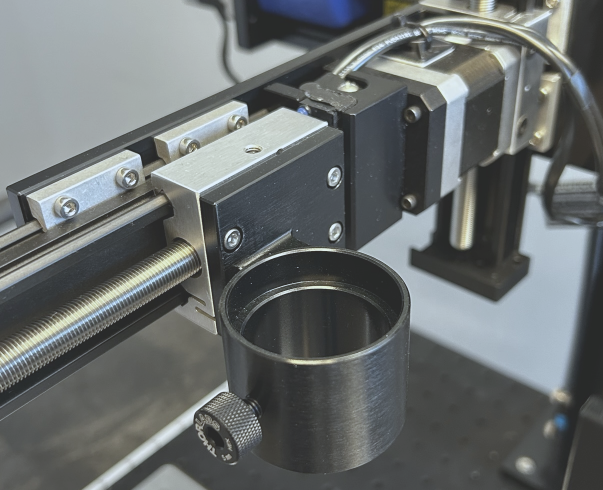

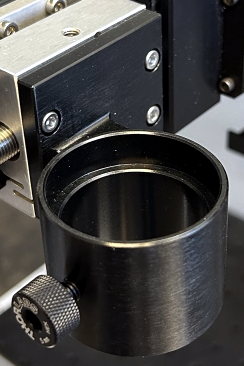

Figure 1: PN0599 mounted on PN0403

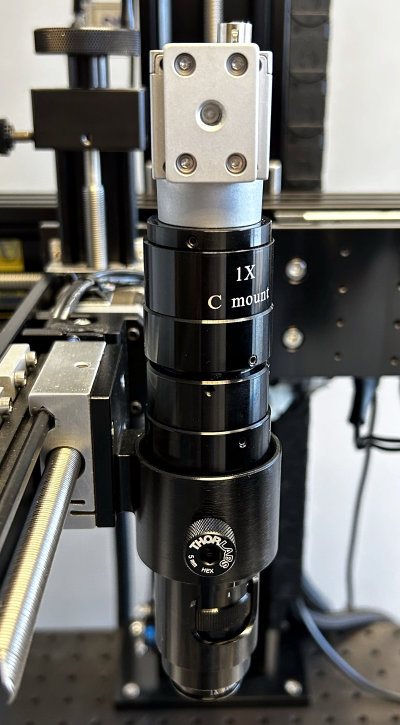

Figure 2: PN0293 inserted in PN0599
