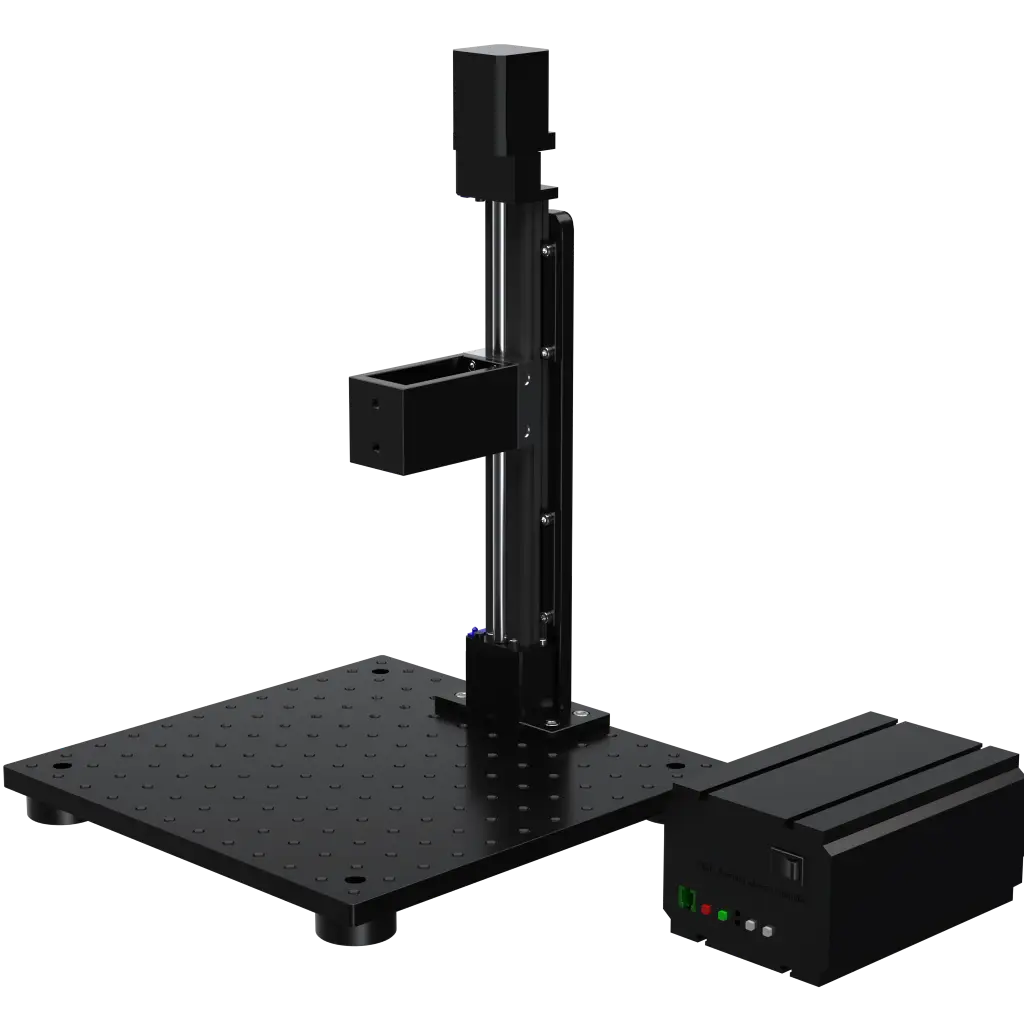

Micros Camera Positioning System Auto Z 300
PN0937 enables fine positioning of the LW320-12 thermal camera along the Z-axis. The motorized Z stage enables homing and the ability to reposition the cameras automatically to known precise positions.
Applications
- Microscopic temperature measurements of features down to 3µm in size
Overview
Included Components
- [PN0187] Linear Stage Motor Controller, 1 Axis
- [PN0935] Z Stage X Slide Motor Gusseted
-
[PN0932] Linear Stage Z Bracket 300
- [PN0936] Mounting Table, 300 x 300mm
Required Products
Related Products
- [PN0938] Micros Camera Positioning System Manual Z 300
- [PN0480] Camera Positioning System Auto XYZ Desktop
Manufacturer Information
Specifications
| Height | 430.8 mm |
| Z travel | 200 mm |
Setup
Operation
Manually Operating the Linear Stage
[PN0187] Linear Stage Motor Controller
Operating the Linear Stages on Thermalyze software
Troubleshoot
