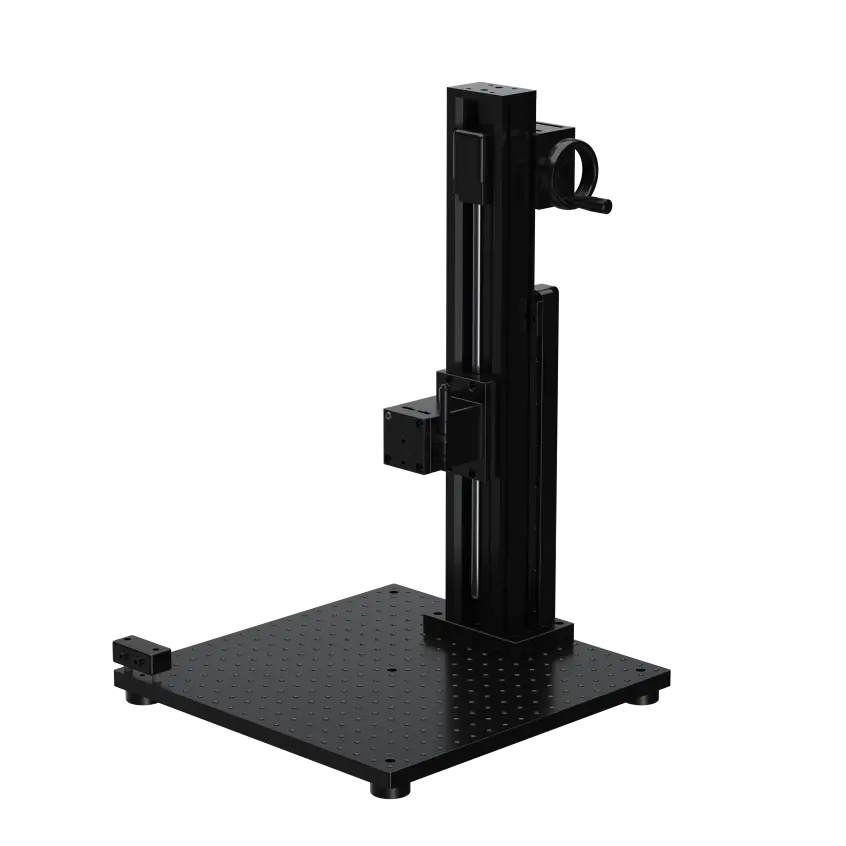

Camera Positioning System Manual Z 450
PN0314 enables fine positioning of a thermal camera along the Z-axis.
Applications
- Semiconductor device failure analysis
- Circuit board failure analysis
Overview

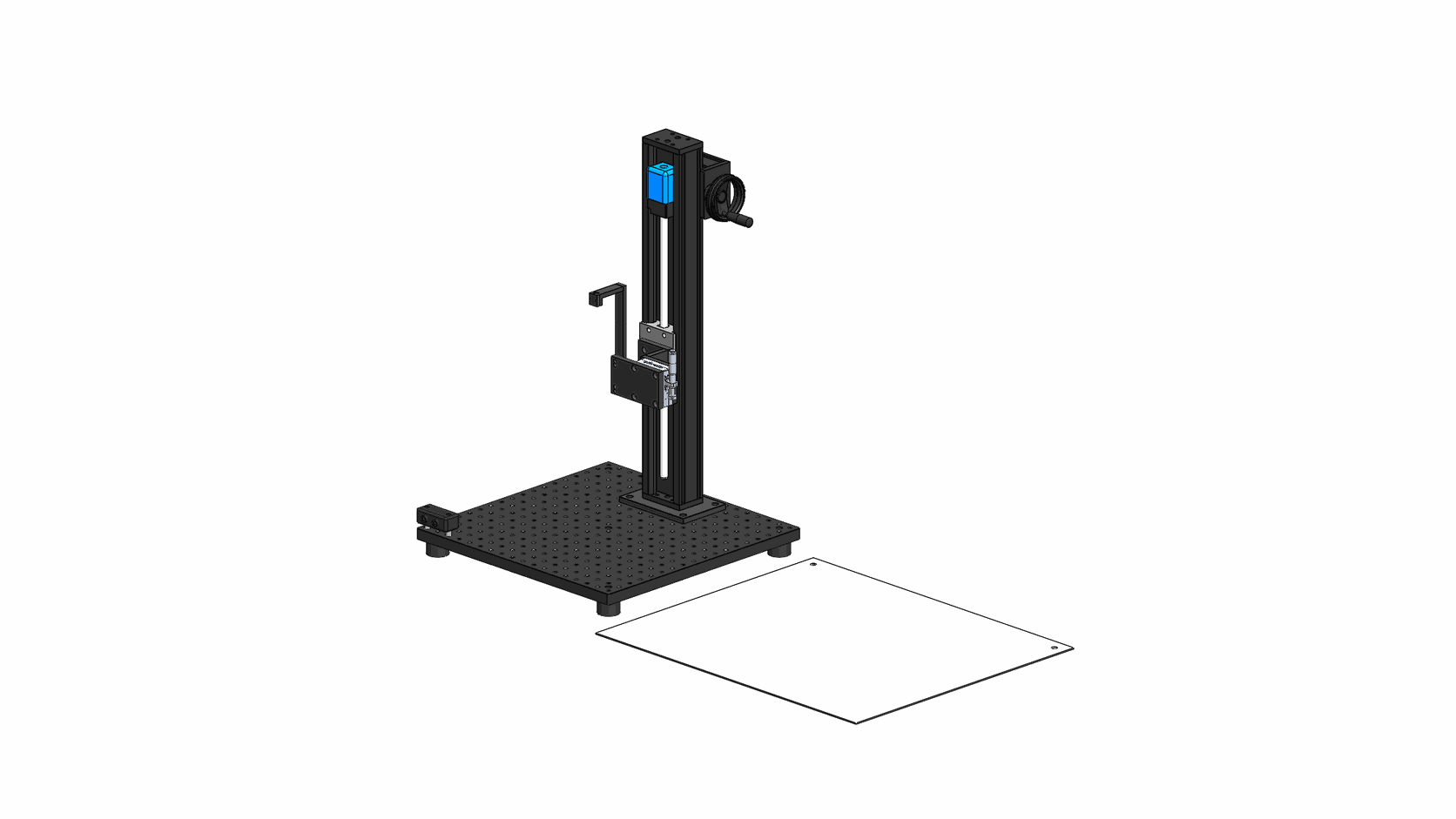

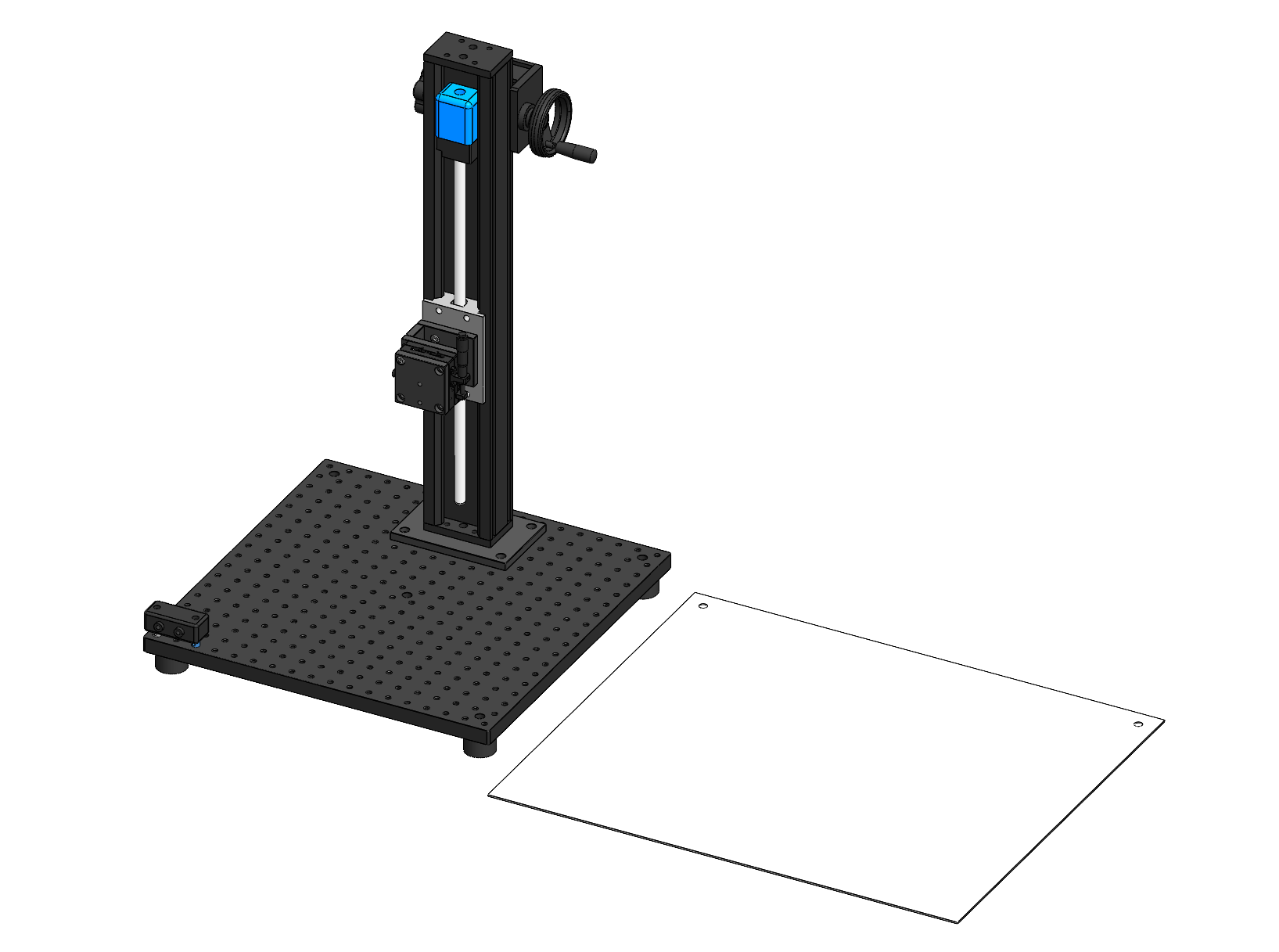

Included Components
- [PN0096] ESD Mat, 510 x 610mm
- [PN0311] Mounting Table 450
- [PN0312] Linear Stage, Manual Z, 380mm
- [PN0313] Linear Stage Z Bracket 450
- [PN0333] Sentris Toolbox
Required Products
Related Products
- [PN0250] Camera Positioning System Auto XYZ 600
- [PN0267] Camera Positioning System Manual Z 600
- [PN0303] Camera Positioning System Auto Z 600
-
[PN0410] Camera Positioning System Auto XYZ 750
- [PN0292] Camera Positioning Arm Manual XY
- [PN0480] Camera Positioning System Auto XYZ Desktop
Manufacturer Information
Specifications
Z travel | 380 mm |
Setup
[PN0311] Mounting Table 450 - Setup
Mount to [PN0311] Mounting Table 450
-
Stand the stage on the Mounting Table so that the four (4) mounting holes in the base are aligned with the threaded mounting holes in the table according to Figures 1 & 2. Secure the stage to the table using the four (4) M6 x 20mm screws and the 5mm hex driver provided.
Note: It will help to count the number of threaded holes between components to determine their mounting locations.

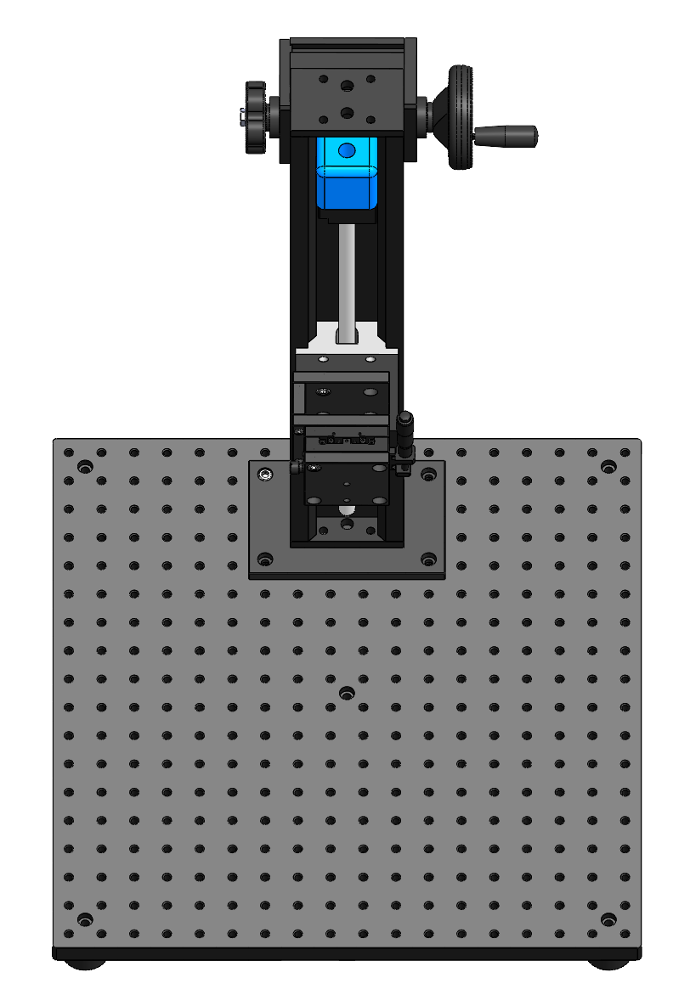

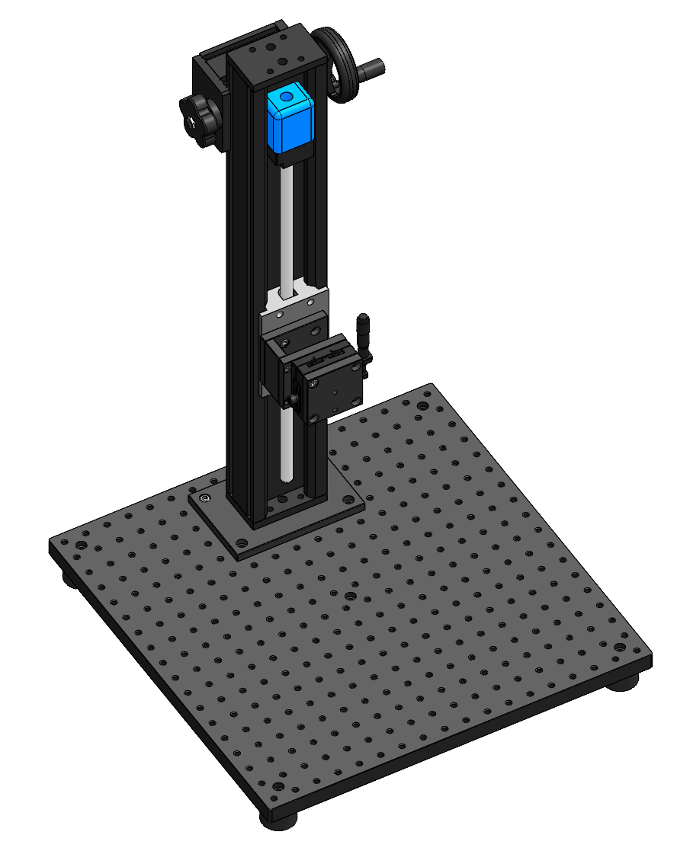

Figures 1 & 2: Mounting position on [PN0311]
Mount Camera Bracket
Operation
Troubleshoot
Maintenance
