Linear Stage Z Bracket 450

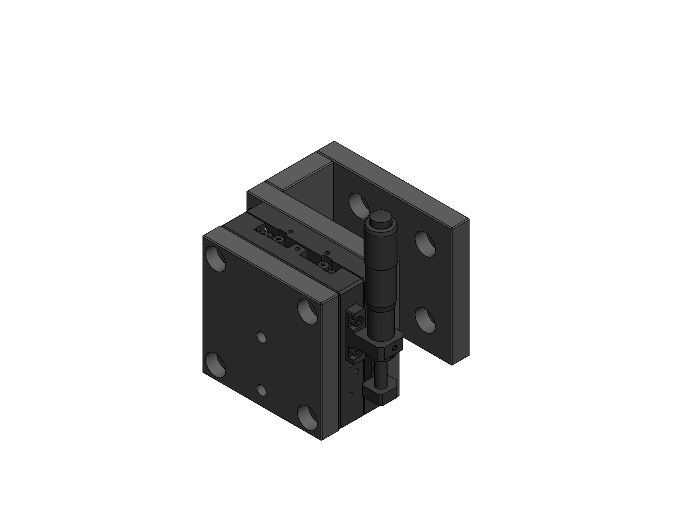

PN0313 provides +/- 12.5 mm fine adjustment along the Z-axis. PN0313 mounts onto [PN0314] Camera Positioning System Manual Z 450.

Applications

  • Camera fine adjustment

view in store

Overview

Specifications

Setup

Operation

Troubleshoot

Maintenance

    Overview

Included Components

  • 65 x 65mm Linear Stage, Manual Z-axis

  • Mounting hardware

Included In

Required Products


Related Products

Manufacturer Information


Top of page

    Specifications

Travel ±12.5mm
Lead of Actuator
 0.5mm
Travel Accuracy
 3μm
Micrometer Readable Resolution
 0.01mm

Top of page

    Setup

Mount to [PN0314] Camera Positioning System Manual Z 450

  1. Mount the L bracket to the four threaded holes of the linear stage of [PN0314] Camera Positioning System Manual Z 450 so that it is centered on the stage. The L bracket should protrude to the left of the stage when facing [PN0314] Camera Positioning System Manual Z 450 (see Figure 1).

  2. Mount the linear stage assembly to protruding L bracket so that the fine adjustment arm of the linear stage is on the right when facing [PN0314] Camera Positioning System Manual Z 450 (see Figure 2).

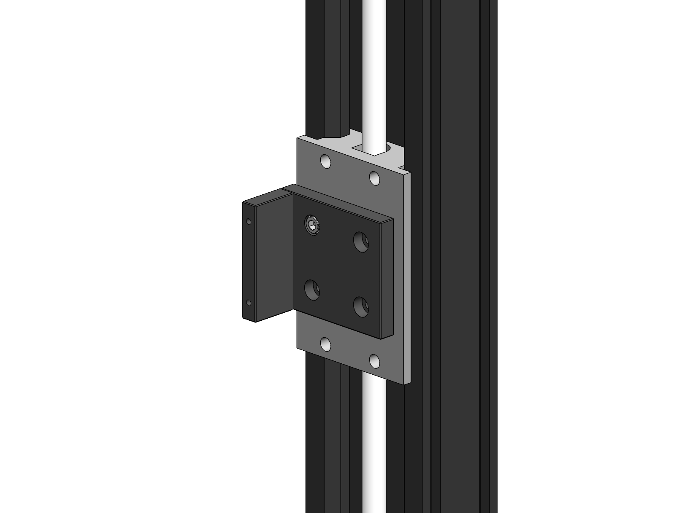

Figure 1: Mounting L bracket of PN0313 to PN0314

Figure 2: Mounting linear stage assembly of PN0313 to PN0314

Top of page

    Operation

Rotate the fine adjustment arm clockwise from above to move the stage up.
