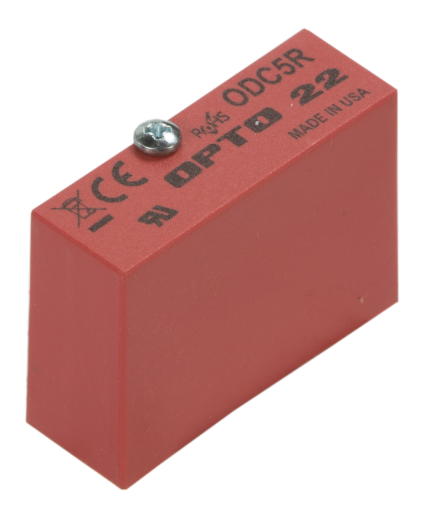

5VDC Mechanical Relay Output Module, Set of 8
PN0624 is a set of 8 low-voltage, Form A mechanical relay I/O modules.
Applications
-
Switches power to devices for Lock-in Thermography, Thermal Model Comparison, and Image Sequencing tests
Overview
IMPORTANT: Applications using 120 VAC are typically NOT suited to this module. If you are considering using this module for any application other than low-voltage purely resistive loads, see the detailed notes and rating curve in the data sheet, and call Pre-sales Engineering for specific guidance.
Included Components
Required Products
Related Products
Manufacturer Information
Specifications
| Contact type | Form A SPST-normally open |
| Line Voltage - Range | 0–100 VDC 0–130 VAC* |
| Current Rating | 0.5 Amps Switching* |
| Contact Rating | 10 VA* |
| Switching current | 0.5 amperes maximum† |
| Carry current | 1.5 amps maximum |
| Contact on-resistance | 200 milliohms |
| Turn-on time | 500 microseconds |
| Turn-off time | 500 microseconds |
| Contact bounce | 250 microseconds |
| Mechanical life | 5 x 10^6 cycles |
| Logic voltage range | 4.8–6 volts |
| Logic dropout voltage | 0.8 volts |
| Logic input current at Normal logic voltage | 14 milliamperes |
| Isolation voltage Input-to-output | 1500 VDC |
| Temperature Operating | 0 to 70 °C |
| Agency Approvals | UL, RoHS, CE; UKCA |
†For voltages at or below 20 volts, the current limit is 0.5 amps. For voltages above 20 volts, the maximum allowable current is determined by the following equation:
Maximum Current = 10 VA / Voltage
Setup
Installation
-
Insert relay pins into [PN0616] 8 Module Input Output Device mounting rack.
-
Using a #1 Phillips driver, carefully tighten screw on the top of the relay.
Operation
Troubleshoot
Maintenance
