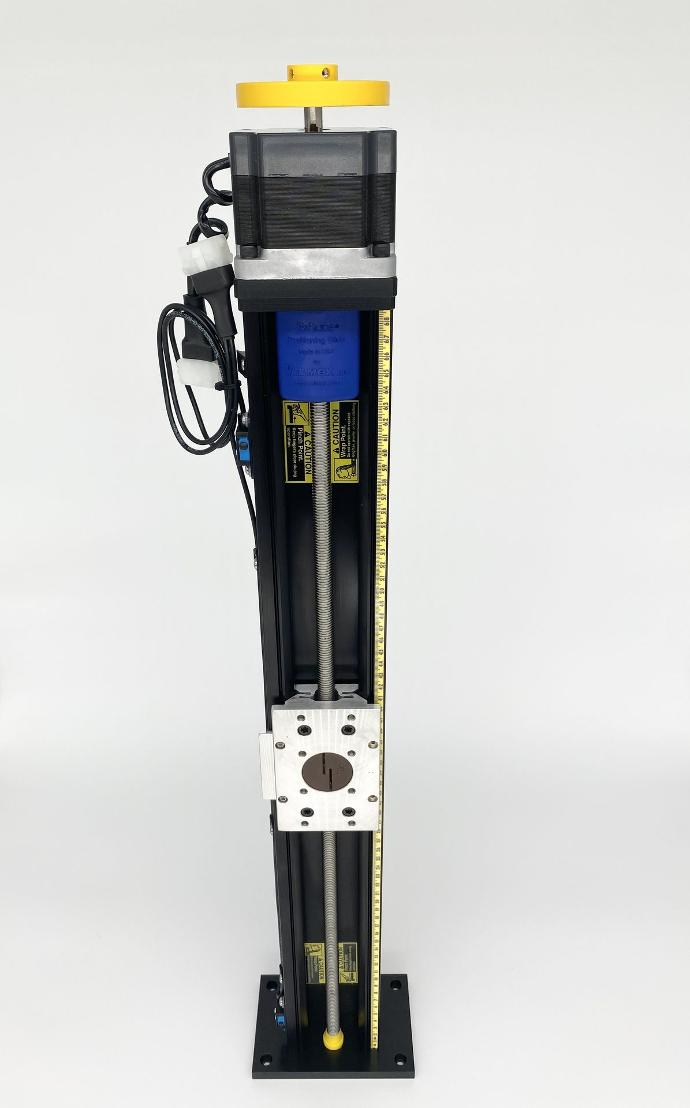

Linear Stage, Auto Z, 500mm
PN0320 enables 500mm travel along the Z-axis.
Applications
-
Vertical focusing
Overview
Included Components
-
Auto Z camera stage
-
Mounting hardware and tools
Included In
Required Products
Related Products
Manufacturer Information
Specifications
| Z travel | 50 cm |
Setup
Mount to [PN0285] Mounting Table 600
-
Stand the stage on the Mounting Table so that the four (4) mounting holes in the base are aligned with the threaded mounting holes in the table according to Figures 1 & 2. Secure the stage to the table using the four (4) M6 x 20mm screws and the 5mm hex driver provided.
Note: It will help to count the number of threaded holes between components to determine their mounting locations.
-
Stand the stage on the Mounting Table so that the four (4) mounting holes in the base are aligned with the threaded mounting holes in the table according to Figures 1 & 2. Secure the stage to the table using the four (4) M6 x 20mm screws and the 5mm hex driver provided.
Note: It will help to count the number of threaded holes between components to determine their mounting locations.

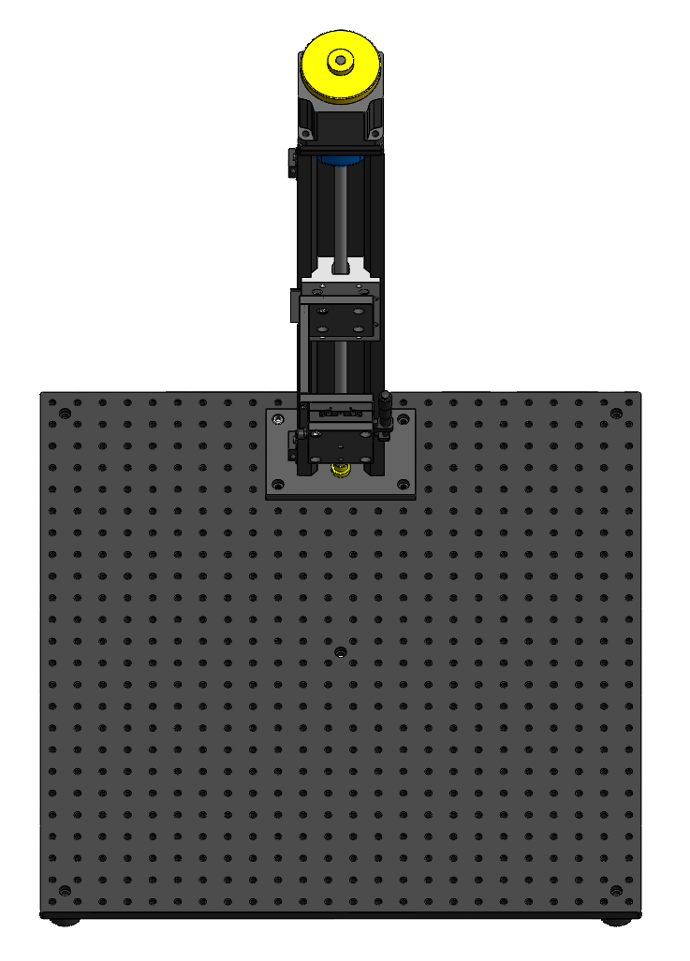

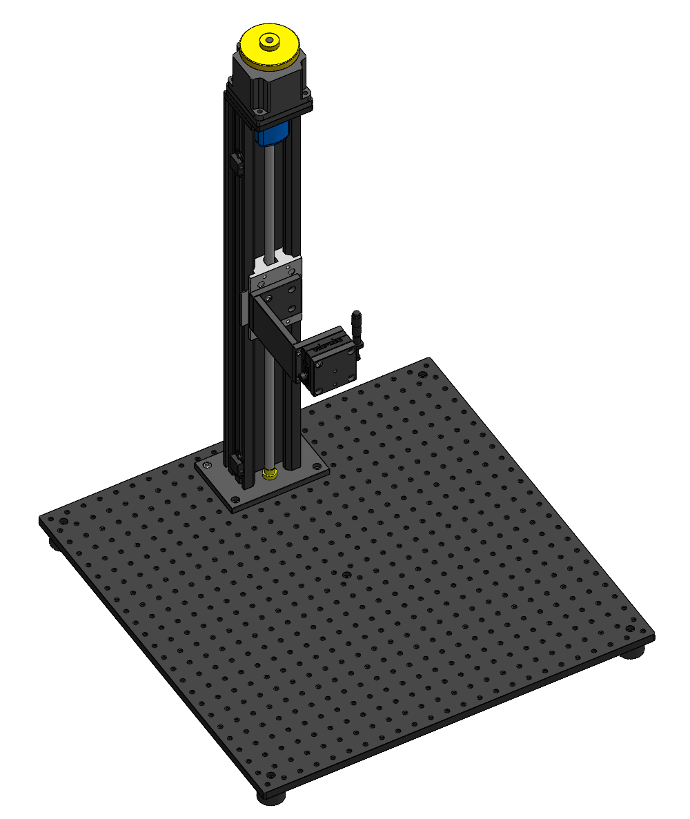

Figures 1 & 2: Mounted to [PN0285]

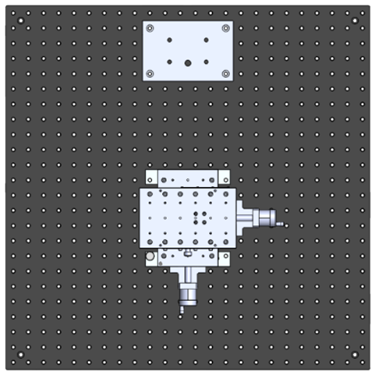

Figure 3: Mounting position on mounting table
Connect to Motor Controller
Operation
Manually Operating the Linear Stages
[PN0187] Linear Stage Motor Controller
Operating the Linear Stages on Thermalyze software
Troubleshoot
