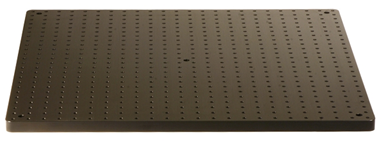

Mounting Table 600
PN0285 provides a grid of M6 threaded holes which provides layout flexibility and enables users to mount custom accessories.
Applications
-
Mounting stages and devices
Overview
Preinstall: Optotherm Enclosures (EN-600) are shipped with the Mounting Table preinstalled.
Included Components
-
Vibration isolation mounts
-
Mounting table rulers
Included In
Required Products
Related Products
Manufacturer Information
Specifications
| Dimensions | 600 x 600 x 12.7 mm |
| Material |
Aluminum Plate |
| Finish |
Matte Black Anodized |
| Hole Size and Spacing |
M6 Tapped Holes on 25 mm Centers |
| Counterbored Hole Size and Spacing | Four M6 Located at Corners - Inset 25 mm |
| Weight | 12.5 kg (27.56 lbs) |
