Motor Controller Cables Installation

[PN0397] Linear Stage Motor Controller 4 Axis  consists of two motor controllers that are identical and interchangeable.  Choose one of the controllers to designate at "Motor Controller 1" and the other as "Motor Controller 2".    Place masking tape marked with "1" and "2" on the motor controllers.

Motor Controller 1 will be connected to [PN0251] Linear Stages Auto XZ 330x500.

Motor Controller 2 will be connected to [PN0403] Linear Stages Manual Z Auto Y 100 Left and [PN0261] Linear Stages Manual Z Auto Y 100 Right.

Motor Controller 1
  1. Connect both motor control connectors labeled "1" to the Z stage of [PN0251] Linear Stages Auto XZ 330x500 (see Figure 1).

  2. Connect both connectors labeled "2" to the X stage of [PN0251] Linear Stages Auto XZ 330x500 (see Figure 2).

Motor Controller 2
  1. Connect both connectors labeled "1" to the [PN0403] Linear Stages Manual Z Auto Y 100 Left.

  2. Connect both connectors labeled "2" to the [PN0261] Linear Stages Manual Z Auto Y 100 Right.

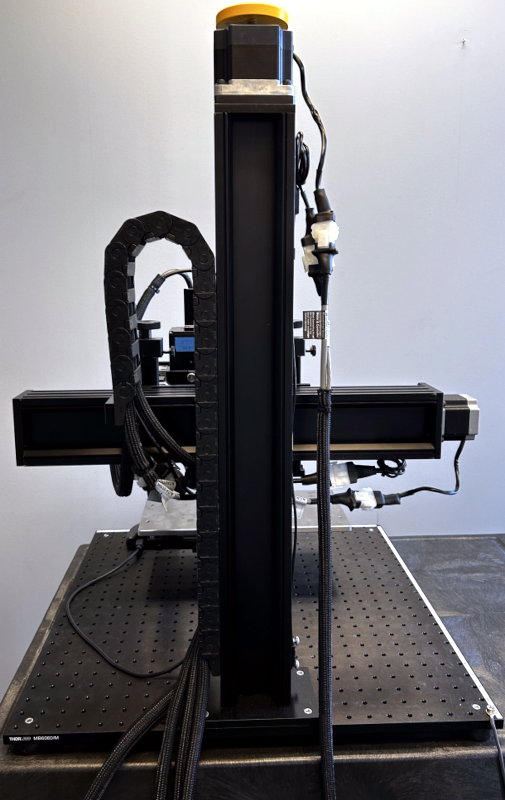

Figure 1: PN0251 auto X cables

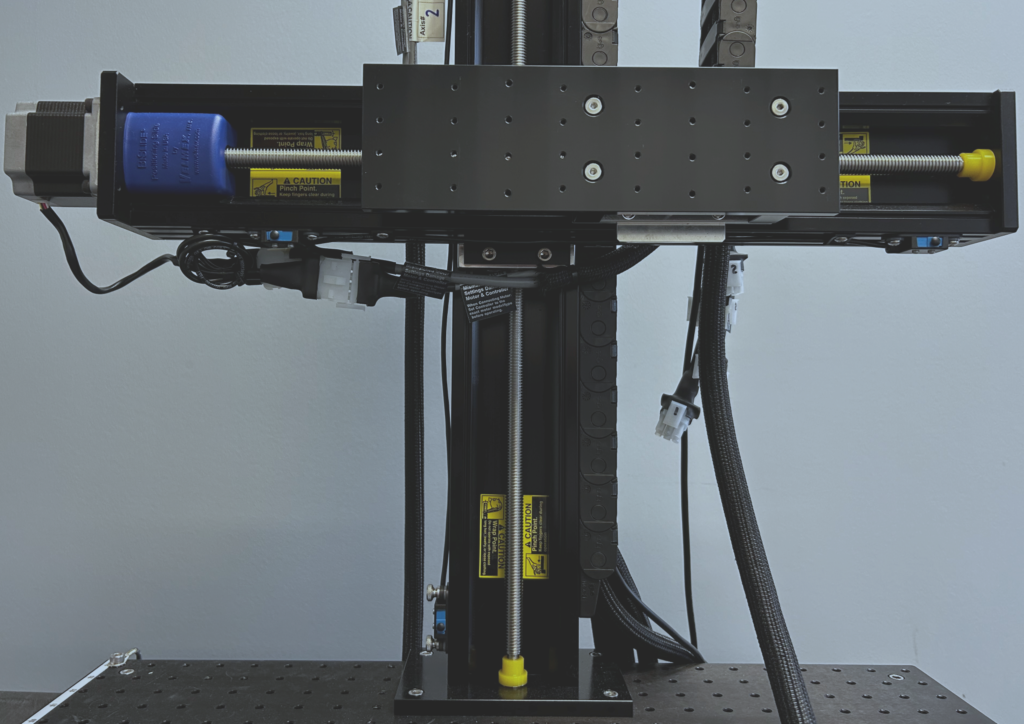

Figure 2: Probing and Thermal Auto Y Stage cables

Figure 3: Completed cable connections
