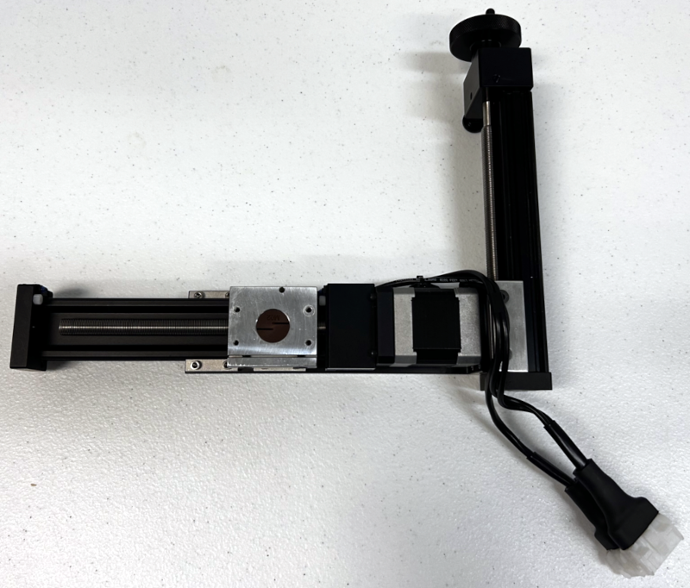

Linear Stages Manual Z Auto Y 100 Left

PN0403

Applications
  • Linear stage positioning on the Y and Z axes

Request a Quote

Overview

Specifications

Setup

Operation

Troubleshoot

Maintenance

    Overview

Included Components

  • Auto Y camera stage

  • Manual Z stage

  • Mounting hardware and tools

Included In

Required Products


Related Products

Manufacturer Information

    Specifications

Y travel  100 mm
Z travel 100 mm

    Setup

Installation

  1. Attach PN0403 to the left end of PN0001 using two (2) cleats and four (4) 6-32 screws provided (see Figure 1).

  2. Setting up the Motor Controller

Assembly Tip: Do not mount PN0403 in the center position of PN0001.

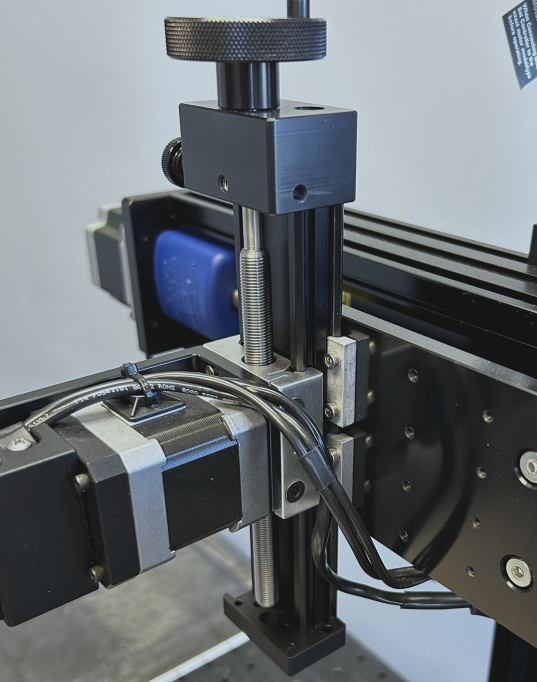

Figure 1: PN0403 mounted on PN0001 (subcomponent of PN0251)
