Linear Stage Motor Controller 4 Axis

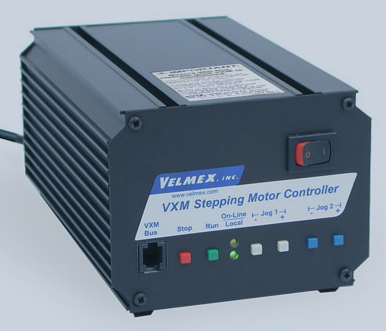

PN0397 enables control of four linear stages. The controller interface provides Jog buttons for each axis to manually position the stages.
Linear stage positioning
Two motor controllers are included and they are identical and interchangeable. Each controller can control two motorized linear stages.
(x2) Power Supplies
Motor Controller I/O Splitter Cable
(x2) RS232 Serial Cables, 6ft
|Weight (with power supplies)
||7.8 lbs (3.54 kg)
||3.52" X 8.74" X 6.89" (89.4 mm X 222 mm X 175 mm)
||RS-232 (serial port)
|AC Power Supply
||100-240VAC 2A 50-60Hz
Installing the Automated Controller
Operating the Automated Stage
Note: If the controller stops responding and the green LED light is not illuminated, press the circuit breaker button on the back of the controller to reset the breaker.
