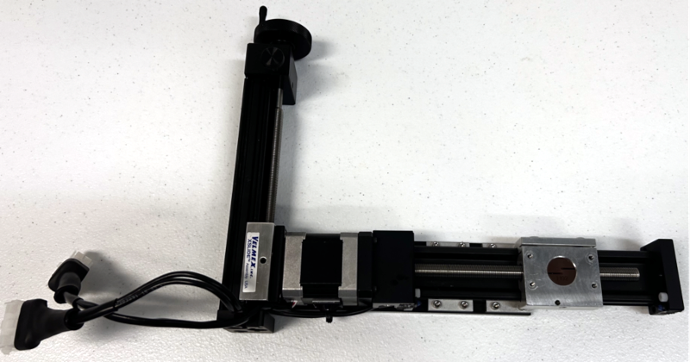

Linear Stages Manual Z Auto Y 100 Right
PN0261
Applications
-
Linear stage positioning on the Y and Z axes
Overview
Included Components
-
Auto Y camera stage
-
Manual Z stage
-
Mounting hardware and tools
Included In
Required Products
Related Products
Manufacturer Information
Specifications
| Y travel | 100 mm |
| Z travel | 100 mm |
Setup
Installation
-
Attach PN0261 to the right end of PN0001 using two (2) cleats and four (4) 6-32 screws provided (see Figure 1).
Assembly Tip: Do not mount PN0261 in the center position of PN0001.

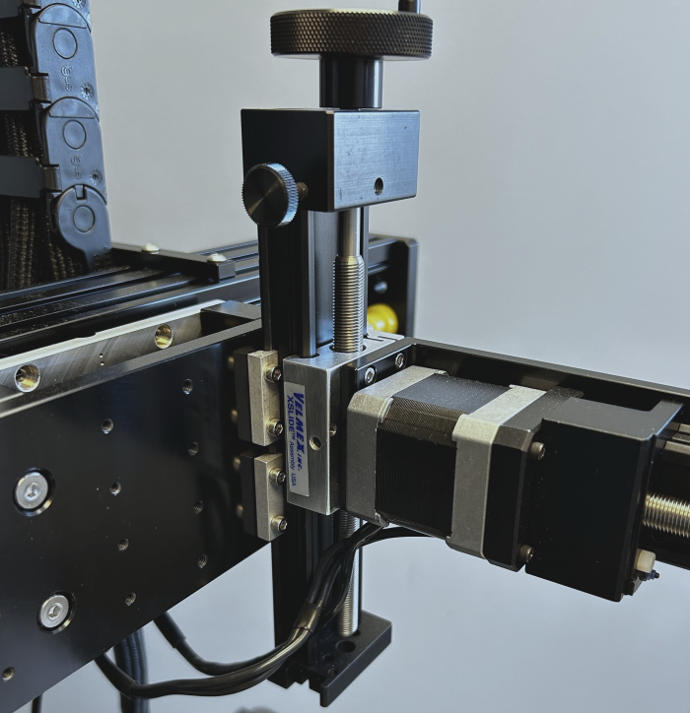

Figure 1: PN0261 mounted on PN0001 (subcomponent of PN0251)
Operation
Manually Operating the Linear Stages
[PN0187] Linear Stage Motor Controller
Operating the Linear Stages on Thermalyze software
Troubleshoot
