Overview

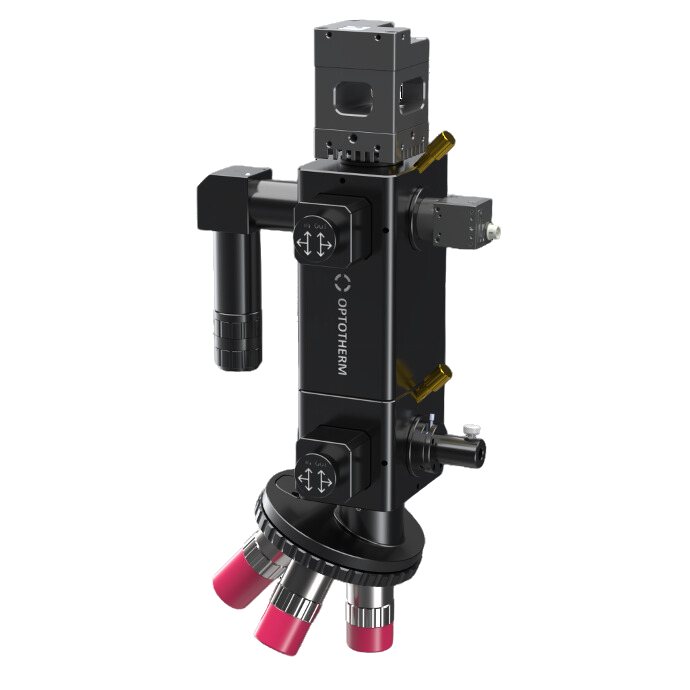

Univid is designed to mount infinity microscope objectives and visible, NIR, and/or SWIR cameras. Univid is unique in that three cameras can be installed simultaneously. To divert the optical path to one of three cameras, simply pull/push the 45° mirror block into position. A beam splitter block is located in infinity space to insert/remove the splitter from the optical path between objectives and camera for maximum light throughput. The optional 4 position turret can be added for fast change of objective lenses. Univid is equipped with a 200mm tube lens, with custom tube lens coatings available for visible, NIR, and SWIR.
Applications
- Applications requiring visible, NIR, and/or SWIR analysis
- Photon Emission: Lock-in Photometry
- Microscopic NIR infrared microscopy
- Microscopic SWIR microscopy
Features
- Three optical ports to mount up to 3 cameras that can be quickly switched between
- Camera block with 45° mirror enables quick diversion of optical path to one of three optical ports
- Two infinity space ports for inline lighting and future accessories
- Infinity space block with beam splitter for inline lighting to the left or right infinity space ports. Block allows beam splitter to be completely removed from the optical path between lens and camera for maximum light throughput.
- 200mm tube lens: custom tube lens coatings available for visible, NIR, and SWIR
- 25mm or 1 inch optical filters can be inserted in any camera, infinity space, or turret port.
- Tube lens transmission from 400 to 2,000 µm
- C-mount camera adapters
- Compatible with cameras up to 2/3" sensor size.
- Optional 4 position turret with M26 objectives (compatible with 2X, 5X, 10X, 20X, and 50X lenses)
Specifications
| # of Optical Ports | 3 |
| Optical Ports | C mount |
| # of Infinity Space Ports | 2 |
| Infinity Space Ports | M26 threads |
| Tube Lens | 200mm |
| Compatible Camera Size | up to 2/3 sensor size |
SWIR Camera
The capable bandwidth of the SWIR camera is between 400 - 1,800nm and mounts to the top of the Univid microscope.
NIR Lenses
Compatible NIR objective lenses include magnifications of 2X, 5X, 10X, 20X, and 50X. Lenses can be mounted on [PN0792] 4 Position Turret or directly to the Univid microscope.
