Overview

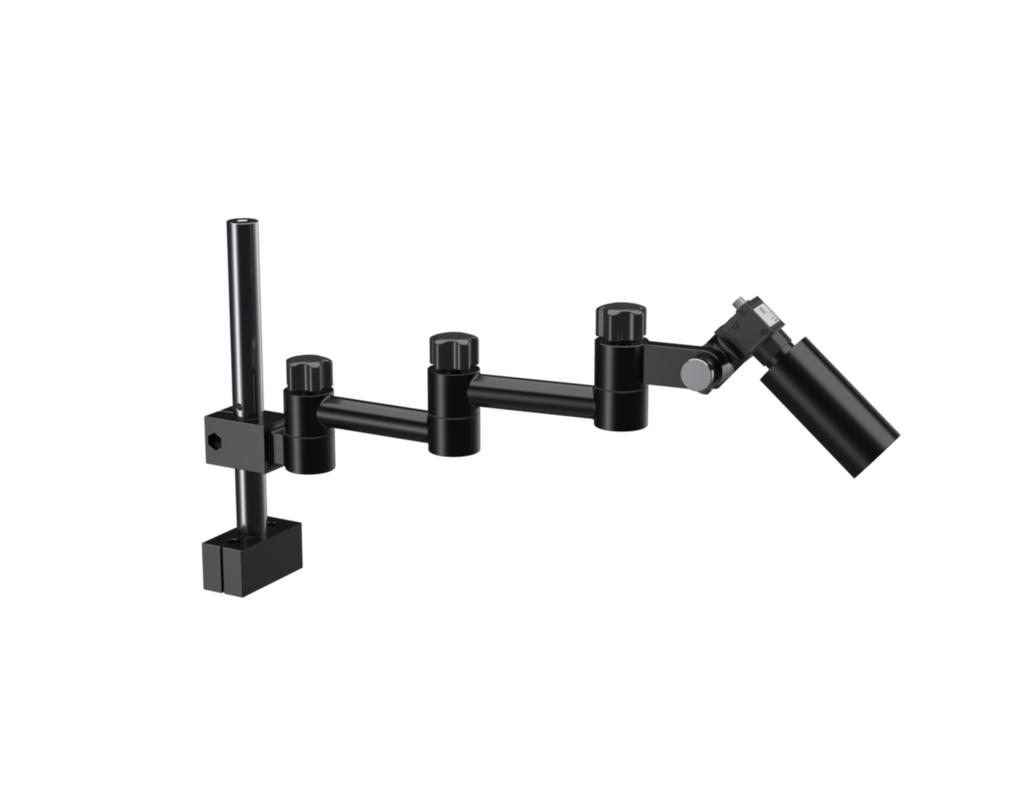

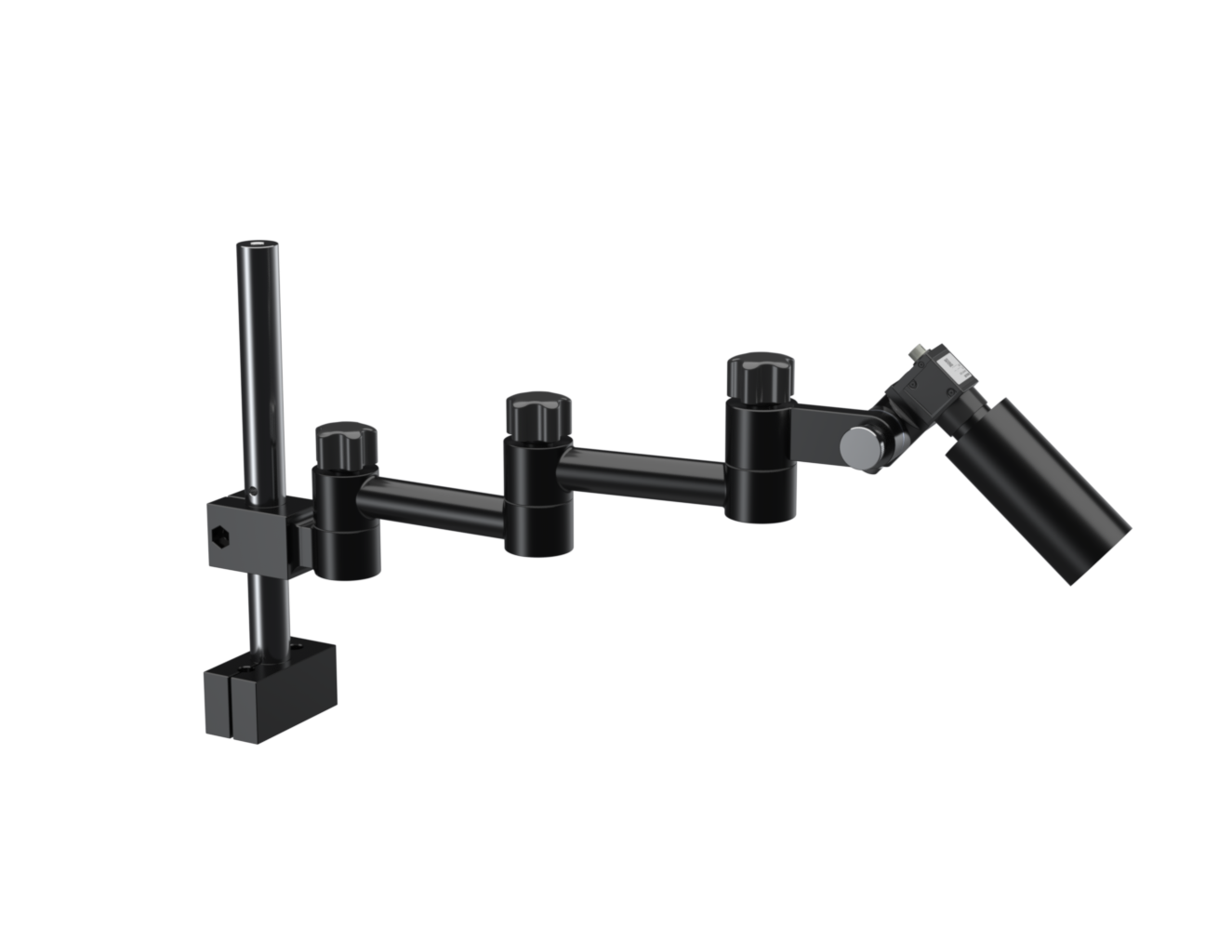

Allows the probing camera to be manually positioned in any orientation when probing both circuit boards and semiconductor devices. The arm is very rigid with minimal sag and is comprised of aluminum joints with PTFE bearings, rubber-coated steel knobs, and steel threaded posts. Needle bearings provide smooth adjustment of joint friction. A ball swivel clamp with thumb screw enables a wide range of camera viewing angles. The arm mounts on a rigid stainless steel 40 mm post and provides 500 mm reach and weighs 1.6 Kg.
Applications
- Circuit board probing
- Semiconductor device probing
Specifications
Manual XYZ Arm Specs
| Reach radius | 500mm |
| Weight | 1.6 kg |
Probing Camera Macro Zoom Lens- Common
Setup, Operation, & Maintenance
Additional product resources are linked under Documents at the bottom of this webpage.
Troubleshooting
Click the link below to view the Support Forum posts for this topic.
[Insert link here]
