Device Probing Equipment

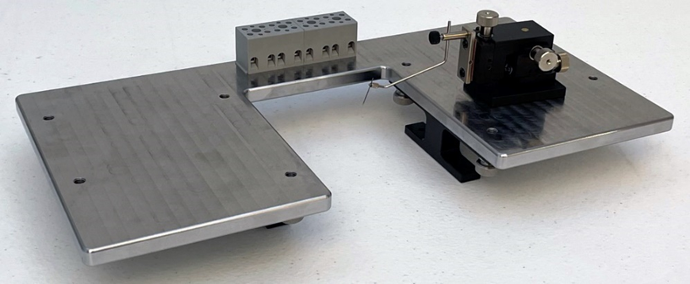

PN0258 provides a sturdy base on which to probe and power semiconductor devices. The platform is comprised of magnetic stainless steel and is machined to a smooth, flat surface for use with magnetic probers. Terminal blocks are mounted at the back of the platform and provide a convenient way to secure and organize voltage source and probe leads.
Applications
-
Small device probing
Overview

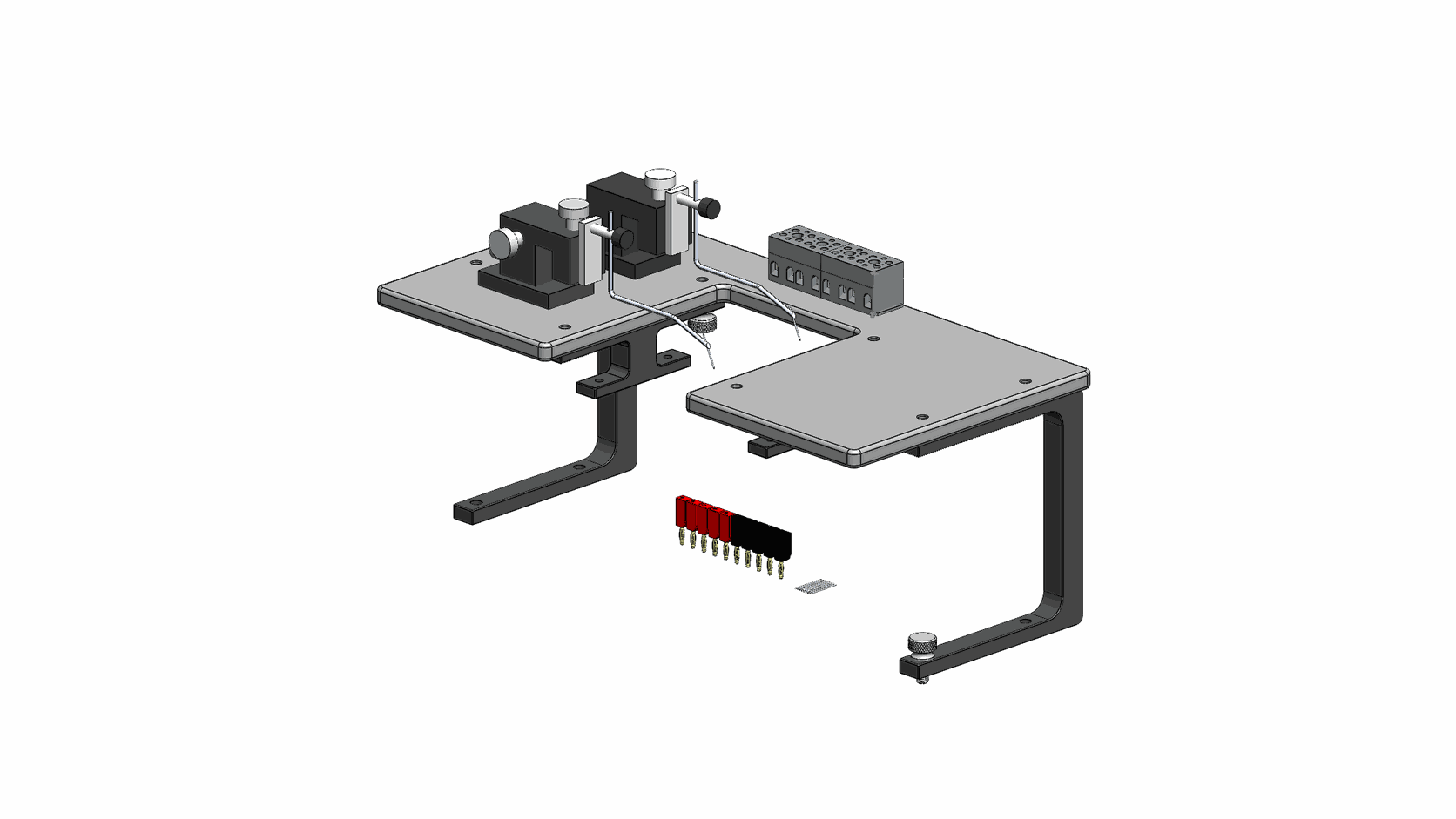

Included Components
Required Products
-
[PN0418] Device Probing Chuck or [PN0255] Thermoelectric Vacuum Chuck for device fixing and testing
Related Products
Manufacturer Information
Specifications
Setup
Installation
Two sets of mounting brackets allow the platform to be mounted to the XY Device Stage or to the mounting table. Mount the platform to the stage for device testing so that the stage and platform move together. Mount the platform to the mounting table so that semiconductor wafers can be moved on the stage independently under the platform for indexed probing of die.
Attach the Mounting Brackets to the Platform
-
Place the platform upside down on a flat surface.
-
Set the appropriate brackets on the bottom of the platform and align the bracket holes with the threaded holes on the platform.
-
Secure with the four (4) M6 thumbscrews provided (see Figures 1 and 2).
Attach the Platform to [PN0253] Device Positioning Stage Manual XY 100 x 160mm
-
Place the platform on the XY Stage.
-
Secure with the four (4) M4 thumbscrews provided (see Figure 3).
Attach the Platform to the Mounting Table
-
Place the platform on the mounting table so that [PN0255] Thermoelectric Vacuum Chuck is centered in the platform cutout.
-
Secure with the four (4) M6 thumbscrews provided.

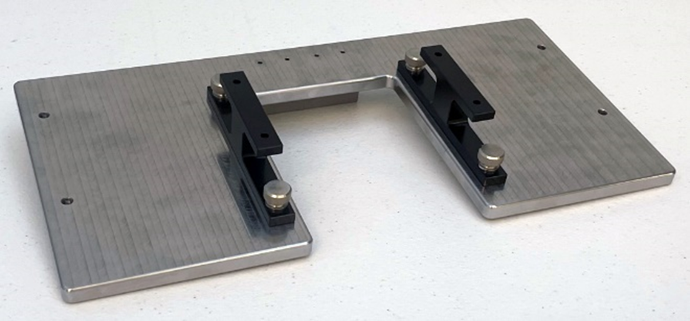

Figure 1: Attaching XY Device Stage brackets

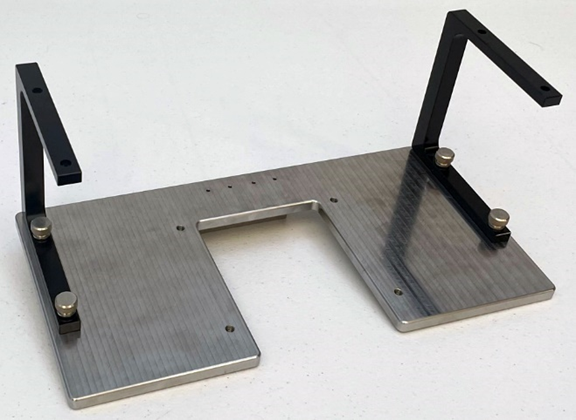

Figure 2: Attaching mounting table brackets

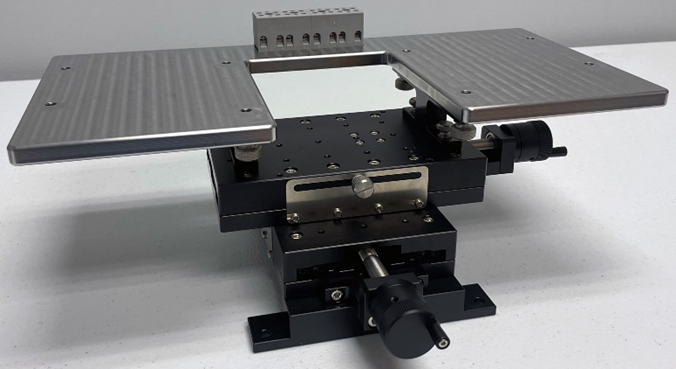

Figure 3: Attaching the platform to [PN0253]
Operation
Electrical Connections
Troubleshoot
Maintenance
