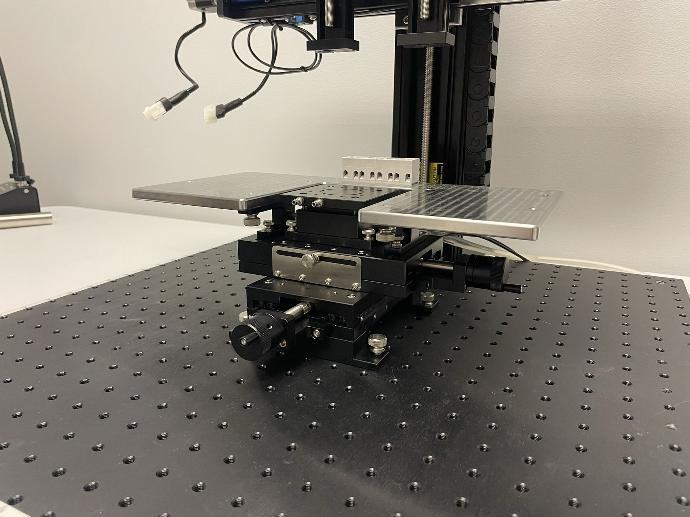

Device Probing Platform
PN0334 is comprised of magnetic stainless steel and is machined to a smooth, flat surface for use with magnetic probers.
Applications
-
Small device probing
Overview
Included Components
-
Magnetic 304 stainless steel platform
-
Mounting brackets
-
(x2) 4 position terminal block
-
(x4) 2mm banana jack
-
2mm Terminal Block Test Leads
-
Mounting hardware and tools
Included In
Required Products
-
[PN0418] Device Probing Chuck or [PN0255] Thermoelectric Vacuum Chuck for device fixing and testing
-
[PN0418] Device Probing Chuck or [PN0255] Thermoelectric Vacuum Chuck for device fixing and testing
Related Products
Manufacturer Information
Specifications
| Platform Dimensions | 350 x 175 x 10 mm |
| Platform Weight |
3.7 kg |
Setup
Installation
-
Place the Probe Platform (upside down) on a flat surface and attach the Mounting Brackets to the platform by securing with the four (4) M6 thumbscrews provided.
-
Place the platform on [PN0253] Device Positioning Stage Manual XY 100 x 160mm and secure with the four (4) M4 thumbscrews provided (see Figure 1).

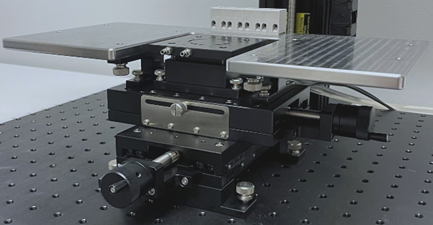

Figure 1: Mount probe platform on PN0253
Operation
Troubleshoot
Maintenance
