Overview

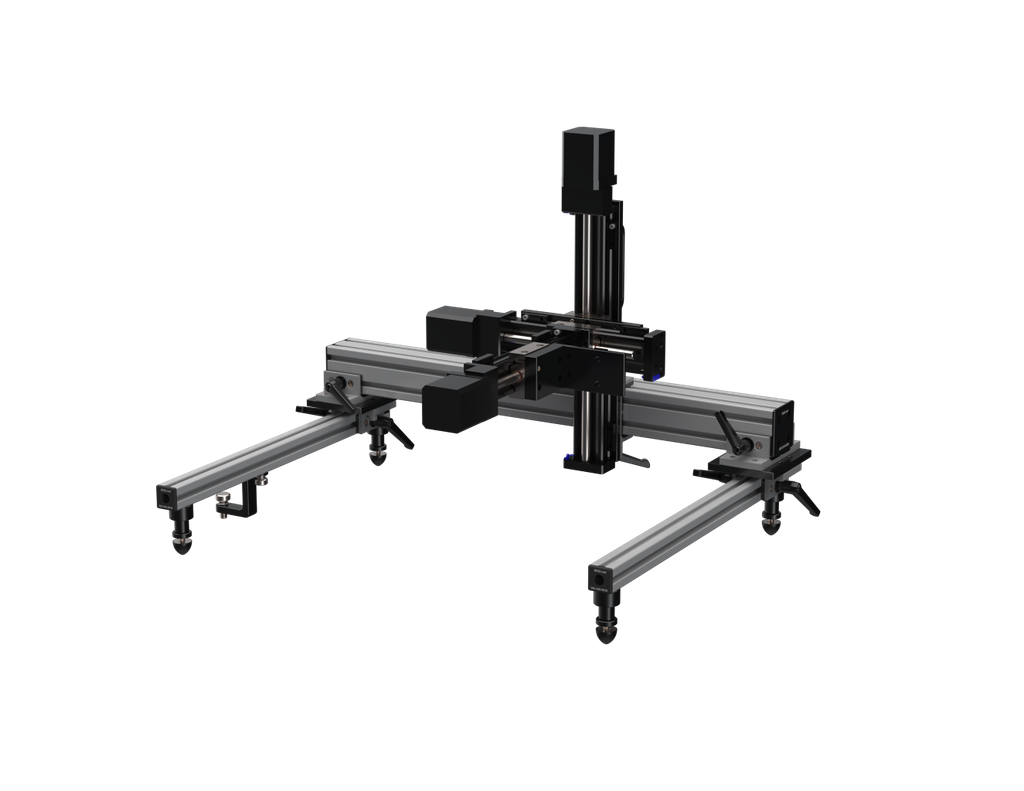

A portable and compact camera positioning system. The system's lightweight design allows for easy lifting using the handle along the z-axis. Motorized X, Y and Z stages enable homing and the ability to reposition the cameras automatically to known precise positions.
Applications
- Semiconductor device failure analysis
- Circuit board failure analysis
Specifications
| Weight (without camera) | 6.25 kg |
| Dimensions (when in compact position and disregarding handles) | 43 x 43 x 55.6 cm |
| X travel | 100 mm |
| Y travel | 100 mm |
| Z travel | 200 mm |
Setup, Operation, & Maintenance
Additional product resources are linked under Documents at the bottom of this webpage.
