Overview

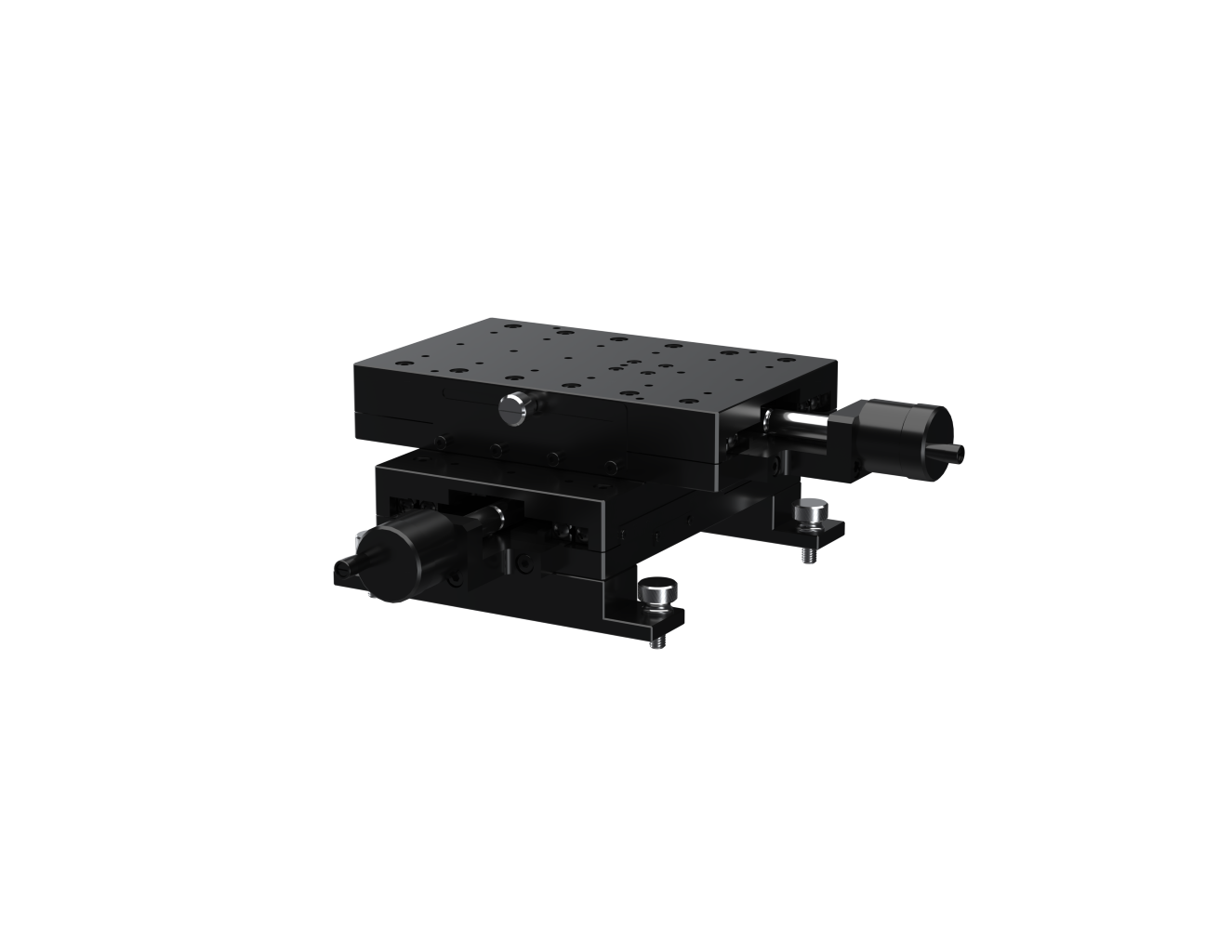

Enables small components to be precisely moved and positioned within the camera’s field of view. Crossed-roller bearings offer superior straightness of travel and can bear heavy loads. Using the X and Y micrometer dials, the stage can be quickly and easily be repositioned to previous locations. Thumbscrews allow the stage to be locked to in one or both X and Y directions to prevent sample movement during testing.
Applications
- Device package XY positioning
- Semiconductor wafer XY positioning
- Small circuit board XY positioning
Specifications
| Platform Size | 100 x 160 mm |
| Travel Range | ± 35 mm |
| Drive Type | Precision ground screw & hand wheel |
| Screw Pitch | 1 mm |
| Height | 60 mm |
| Readable Resolution | 0.1 mm |
| Parallelism | 0.1 mm |
| Load Capacity | 40 kg |
| Weight | 2.6 kg |
| Main Materials | Aluminum alloy |
| Surface Treatment | Black anodize |
| Mounting | M4 threaded holes spaced 25 mm |
Setup, Operation, & Maintenance
Additional product resources are linked under Documents at the bottom of this webpage.
