Overview

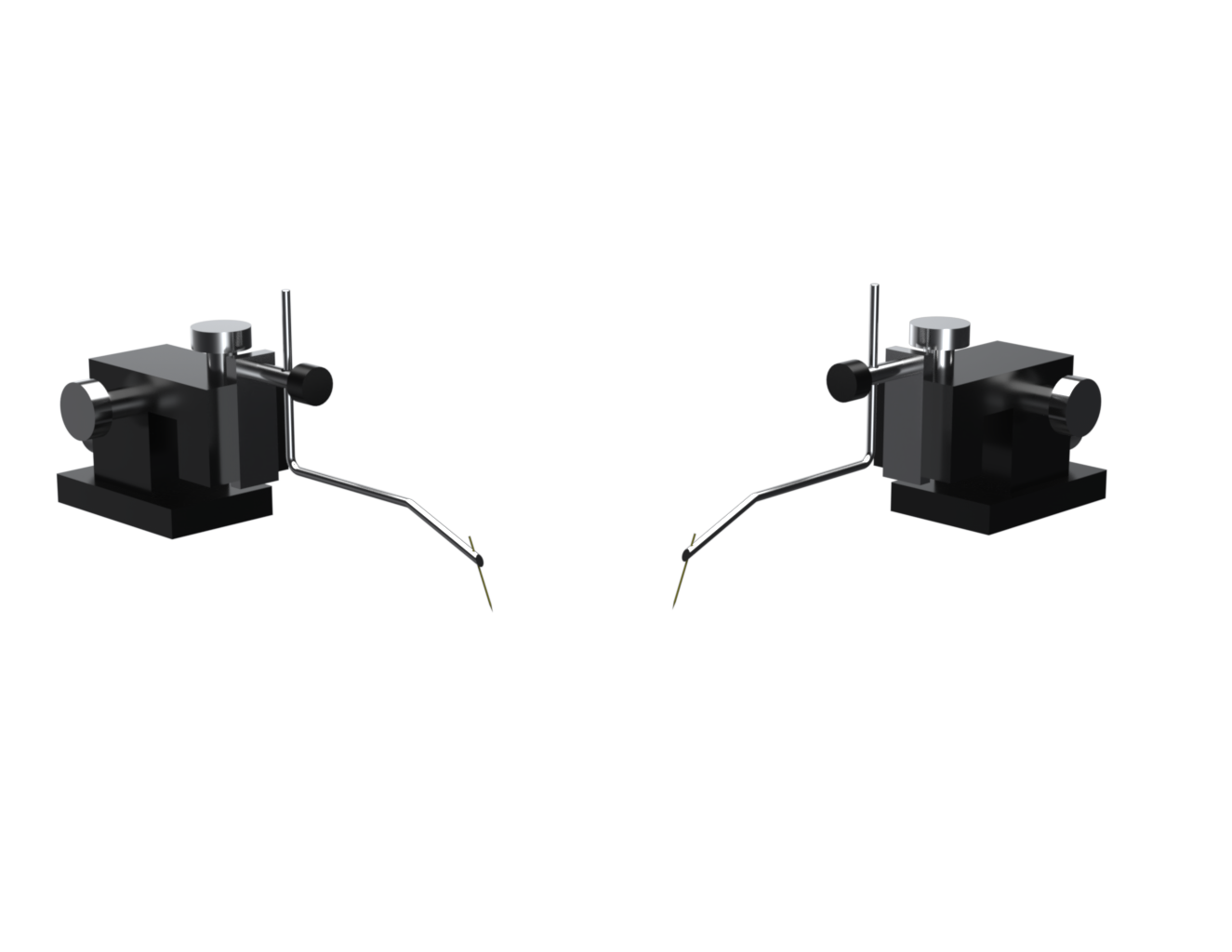

Enables precise positioning of needle probes onto semiconductor pads. Each probe has a magnetic base and can be adjusted in the x, y, and z directions with +/- 7.5 mm movement along each axis. A wire lead with gold-plated contact pin is used to make electrical connection to the needle probe. Probes are offered in both left and right-hand versions. The right-hand version is shown.
Applications
- Probe semiconductor die pads
- Probe semiconductor package leads
- Probe small circuit board components leads, pads, vias
Specifications
| Needle Length | 12.5 mm |
| Travel | ± 7.5 mm in the X, Y, and Z direction |
| Dimensions | 38 mm W x 62 mm D x 45 mm H |
| XYZ Travel Resolution | 0.635 mm/revolution |
