Sentris
Electronics Analysis Systems
Sentris is Optotherm's product line of infrared imaging systems. Each system is configured by specific analysis methods and platforms.
Analysis Methods
Analysis methods can be combined into a system configuration.

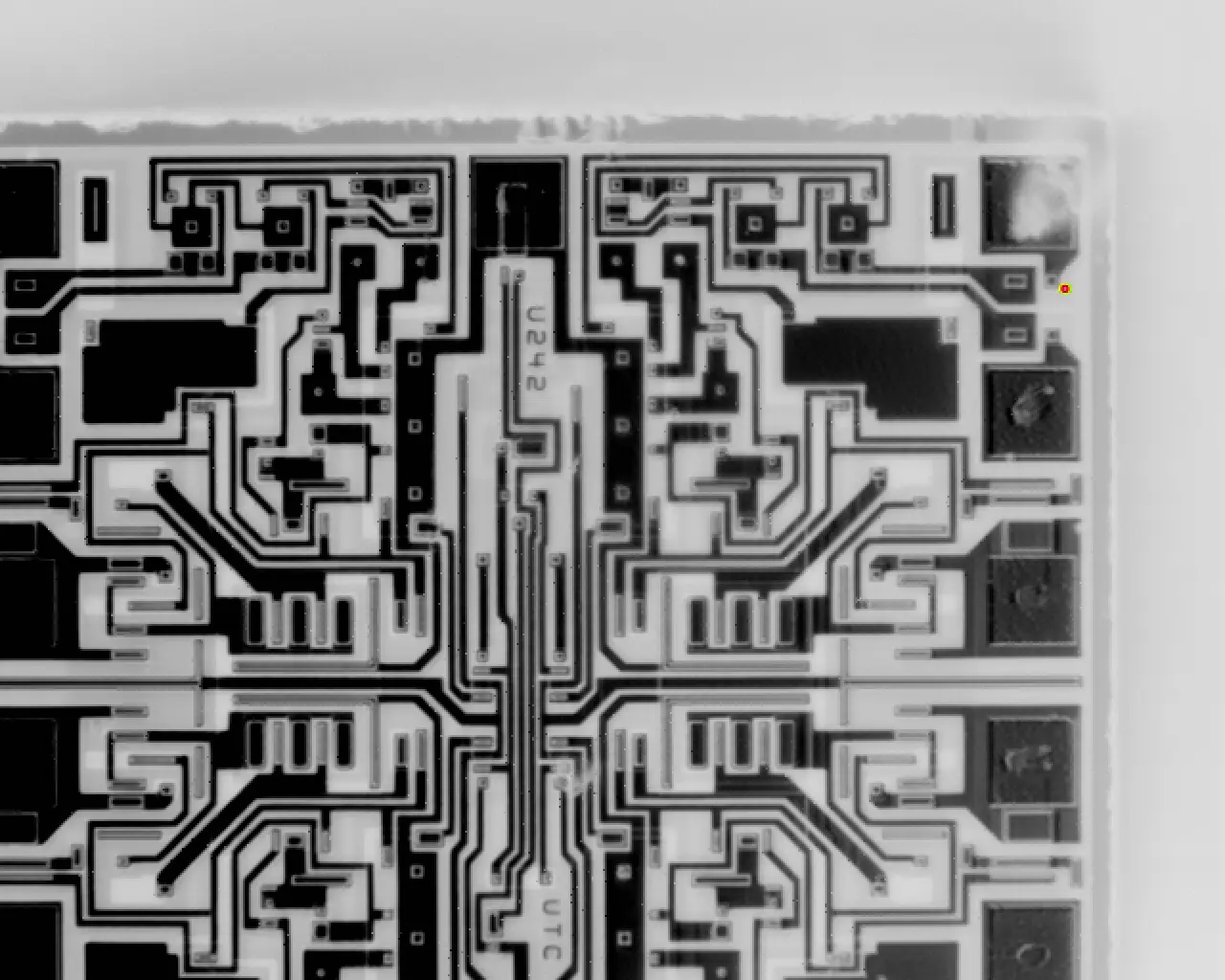

Lock-in Thermography
Detect and locate short circuits on semiconductor devices and circuit boards
Compatible Cameras:
LWIR
- 640x480p, 17µm pitch VOₓ FPA with a spectral range of 7-14 µm
- Detect localized heating below 0.001 °C
- Resolution down to 5 µm
MWIR
- 640x512p, 15µm pitch MCT FPA with a spectral range of 3.7-4.8µm cooled to 80K
- Detect localized heating below 0.0001 °C
- Resolution down to 1 µm
Lock-in Thermography
Detect and locate short circuits on semiconductor devices and circuit boards
Compatible Cameras:
LWIR
- 640x480p, 17µm pitch VOₓ FPA with a spectral range of 7-14 µm
- Detect localized heating below 0.001 °C
- Resolution down to 5 µm
MWIR
- 640x512p, 15µm pitch MCT FPA with a spectral range of 3.7-4.8µm cooled to 80K
- Detect localized heating below 0.0001 °C
- Resolution down to 1 µm
Lock-in Photometry
Detect and locate photon emissions from faulty and operating semiconductor devices
Compatible Cameras:
SWIR
- 640x512p 15µm pitch InGaAs FPA with a spectral range of 900-1700nm cooled to -60°C
- Resolution down to 300 nm

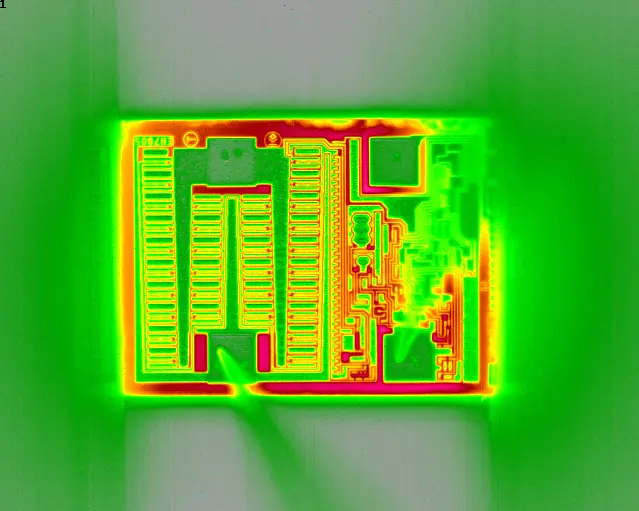

Temperature Analysis
Measure and analyze the operating temperature of semiconductor devices, circuit boards, and MEMS
Compatible Cameras:
LWIR
- 640x480p, 17µm pitch VOₓ FPA with a spectral range of 7-14 µm
- Sensitivity <30 mK
- Resolution down to 5 µm (radiometric resolution down to 10 µm)
MWIR
- 640x512p, 15µm pitch MCT FPA with a spectral range of 3.7-4.8µm cooled to 80K
- Sensitivity <20 mK
- Resolution down to 1 µm
System Platforms
Discover which analysis methods and cameras are compatible with each platform.
Benchtop
Components:
- 600x600 mounting table
- Auto vertical stage
- Optional LIT shield
- Manual XY device positioning
Compatible Analysis Methods
- Lock-in Thermography
- Temperature Analysis
Compatible Cameras
LWIR
MWIR
Benchtop PCB
Components:
- 600x600 mounting table
- Extended vertical stage with XYZ arm
- Circuit board flip fixture
Compatible Analysis Methods
- Lock-in Thermography
- Temperature Analysis
Compatible Cameras
LWIR
MWIR

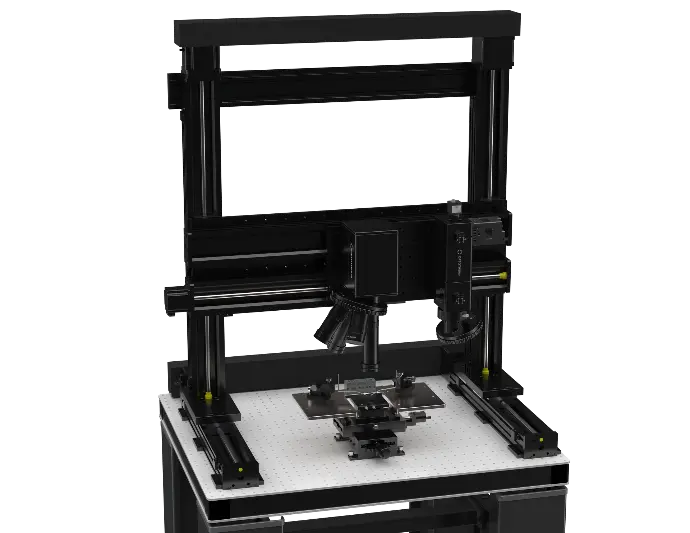

Freestanding
Components:
- 750x900 mounting table
- Auto XYZ stages
- Enclosure with blackout capability
- Active isolation frame
Compatible Analysis Methods
- Lock-in Thermography
- Temperature Analysis
Compatible Cameras
LWIR
MWIR
- SWIR
Note: this platform can accommodate two cameras

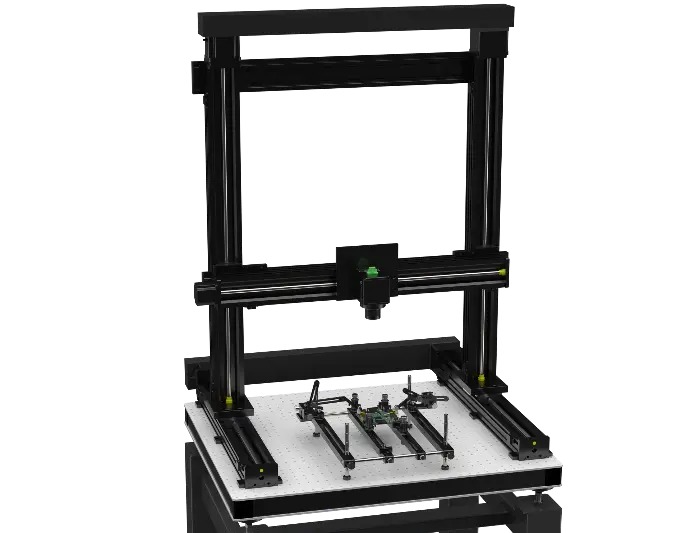

Freestanding PCB
Components:
- 750x900 mounting table
- Extended auto XYZ stages
- Extended enclosure
- Rigid frame
Compatible Analysis Methods
- Lock-in Thermography
- Temperature Analysis
Compatible Cameras
LWIR
