Thermoelectric Vacuum Chuck Equipment

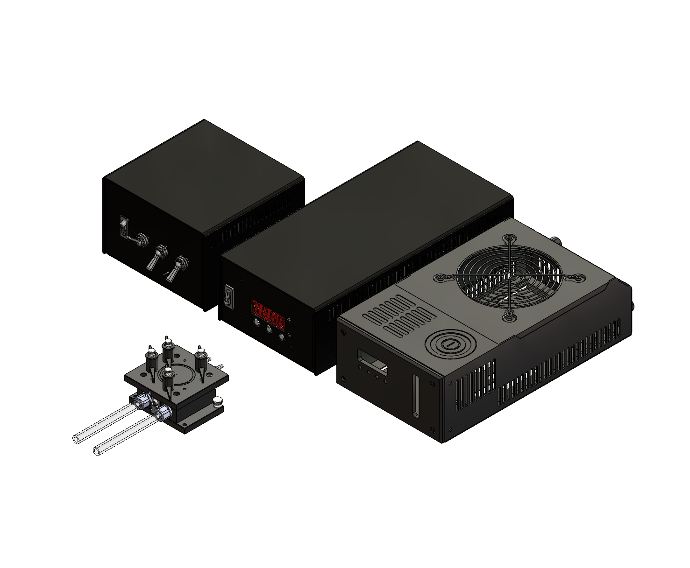

PN0254 is used to hold and heat/cool devices under test. It includes a thermoelectric vacuum chuck, thermoelectric controller, vacuum controller, and a liquid heat exchanger. Devices of any size and shape device can fit on the chuck platform, even larger than 80x80mm (but it will overhang the sides of the chuck). The surfaces of the devices must be flat and smooth to be secured by the vacuum ports. The vacuum controller can control which port is used. There are also four chuck device holds for holding down devices.
Applications (see overview)
- Controlled Temperature Testing
- Lens Focusing
- Creating Emissivity Tables
- Picture Overlay
Overview
- Small components and devices can be heated or cooled to precise temperatures during testing to simulate operation in various ambient temperature environments.
- Many electronic devices are comprised of different materials having different emissivity. By heating a device above ambient temperature, emissivity differences create thermal image contrast that can help when focusing the thermal camera lens.
- Devices are controlled to a precise and stable temperature when calculating emissivity tables (see Thermalyze HTML Help).
- Picture overlay involves merging a picture, graphic, or drawing of a device with its thermal image to locate thermal gradients and hot spots. A thermal image of a heated device can also be used as the graphic in picture overlay.
How It Works
Depending on the direction of electrical current applied to its leads, the thermoelectric module can transfer heat in either of two directions. It can either cool the top plate by drawing heat away from the plate and transferring it to the heat sink or heat the top plate by drawing heat away from the heat sink and transferring it to the top plate. An RTD temperature sensor inserted into the top plate provides temperature feedback to the controller.
Included Components
- [PN0255] Thermoelectric Vacuum Chuck
- [PN0256] Thermoelectric Controller 24VDC
- [PN0257] Vacuum Controller 12VDC
-
[PN0317] Liquid Coolant Heat Exchanger with Hardware
Required Products
Related Products
Manufacturer Information
Operation
Use
- Liquid Heat Exchanger Operation
- Thermoelectric Controller 24VDC Operation
- Vacuum Controller 12VDC Operation
Fuses and Circuit Breaker Protection
Troubleshoot
Maintenance
