Overview
Required Products
Manufacturer Information
-
4 port USB to RS232 serial hub
-
Manual: StarTech ICUSB232xI Manual
-
Drivers:
[FTDI] Windows USB to Serial Adapter
-
Manual: StarTech ICUSB232xI Manual
-
4 Port USB 3.0 PCIe Card
- Manual: StarTech PEXUSB3S42V Manual
- Drivers: [Renesas_uPD720201_2] USB 3.0 Controller Card
Specifications
Computer Systems
|
|
PN0726 |
PN0143 |
PN0415 |
PN0492 |
| Description | Desktop computer system for cameras with PoCL Communication |
Desktop computer system for IS640 camera model | Desktop computer system for cameras with USB Communication |
Laptop computer system for cameras with USB Communication |
| Included Components | PN0724, PN0469 | PN0324, PN0469 | PN0727, PN0469 |
4 port USB to RS232 serial hub 4 port USB A hub |
| Software & Hardware | All system software & hardware preinstalled and tested |
All system software & hardware preinstalled and tested |
All system software & hardware preinstalled and tested |
All system software & hardware preinstalled and tested |
| Operating System | See included components |
See included components |
See included components |
Windows 11 Pro |
Computer System Components
| PN0724 & PN0898 | PN0324 | PN0727 | PN0469 | |
| Description | Configured PC for cameras with PoCL Communication (PC only) |
Configured PC for IS640 camera model (PC only) |
Configured PC for cameras with USB Communication (PC only) |
Dell UltraSharp 27 inch Monitor, Configured (Monitor only) |

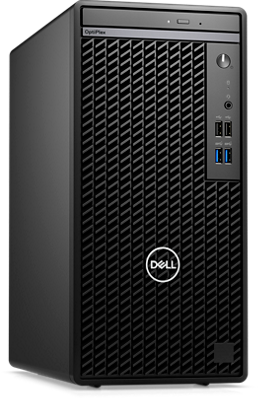

| Included Components | Dell Optiplex Plus Tower 4 port USB to RS232 serial hub Wireless keyboard and mouse |
Dell OptiPlex Plus Tower 4 port USB to RS232 serial hub Wireless keyboard and mouse PCIe CameraLink board |
Dell OptiPlex Plus Tower 4 port USB to RS232 serial hub 4 port USB PCIe card Wireless keyboard and mouse [PN0178] Thermalyze Seat License USB Dongle |
Dell UltraSharp 27 inch Monitor Dell Soundbar for UltraSharp 27 Monitor |
| Software and Hardware | All system software & hardware preinstalled and tested |
All system software & hardware preinstalled and tested |
All system software & hardware preinstalled and tested |
Hardware tested |
| Operating System | Windows 11 Pro |
Windows 10 Pro |
Windows 11 Pro |
N/A |
Setup
Computer Setup
IMPORTANT: IF YOU PURCHASED THE COMPUTER FROM OPTOTHERM, ALL OF THE HARDWARE AND SOFTWARE HAS BEEN PRE-INSTALLED ON THE COMPUTER. THEREFORE, YOU SHOULD NOT PERFORM THE SOFTWARE INSTALLATION STEPS.
Caution: Thermalyze is a sophisticated application that places high demands on the computer processor and other resources and proper operation depends on the installation of several software modules and hardware drivers. To prevent software or hardware conflicts that may interfere with its operation, the computer should be employed solely for Sentris use and installation of additional software or hardware unrelated to the operation of Sentris should be avoided.
Installation Requirements
Thermalyze performs sophisticated image processing that requires significant computer resources. The following requirements and recommendations apply to Thermalyze version 7.0.0 and later.
- Operating System: Windows 10 (64 bit) / Windows 11 (64 bit)
- Screen Resolution: 2560 x 1440 minimum
- RAM: 16GB minimum
- Hard Drive: 250GB minimum. 1TB is recommended for saving large image sequences and Lock-in Thermography tests.
- Number of Processing Cores: Quad-core minimum. Thermalyze is a multi-threaded application and can perform simultaneous processing on multiple cores.
- Processor: Intel I7 3.6GHz 8MB Cache minimum
-
PCIe Slots:
- (x1) half-length PCIe x1 slot for the Camera Link board (for IS640 and IS320 cameras only)
-
(x1) half-length x4 slot for the 4 Port USB 3.0 PCIe Card (for IS640-17 cameras)
-
USB3 Ports:
- (x1) for Video Camera
- (x1) for IS640-17 LWIR Camera
-
RS-232 Ports
- (x1) for thermal stage controller
- (x1) for each Motor Controller
- Note: A USB to RS-232 convertor can be used if an RS-232 port is not available.
Software Installation
Operation
Troubleshoot
Matrox Solios PCIe CameraLink Interface Board Drivers Incompatibility with Windows 11
We are aware of an intermittent problem between the Matrox PCIe CameraLink Interface Board drivers and Windows 11, which prevents infrared camera capture in Thermalyze. We are working with the manufacturer of the drivers to determine a solution. For customers experiencing this problem, we advise installing Windows 10 on the system computer using the official Microsoft installation link here: https://www.microsoft.com/en-us/software-download/windows10
Maintenance
Widows Version Upgrades: Before upgrading to a new operating system, check your camera's communication interface compatibility here. If your camera is not compatible with the desired Windows version, please contact us.
