Using a non-destructive process called Lock-in Thermography, failures can be isolated on PCBs and PCBAs without the need for surface treatment or coating. Sentris PCB's circuit board holders and probes allow easy probing of circuit boards of various sizes.


CONTACT US FOR A QUOTE

Mounting Configurations

Specifications

Setup & Assembly

    Basic Mounting Configurations

All configurations can be modified. To configure a system from scratch, go to Sentris System Components.

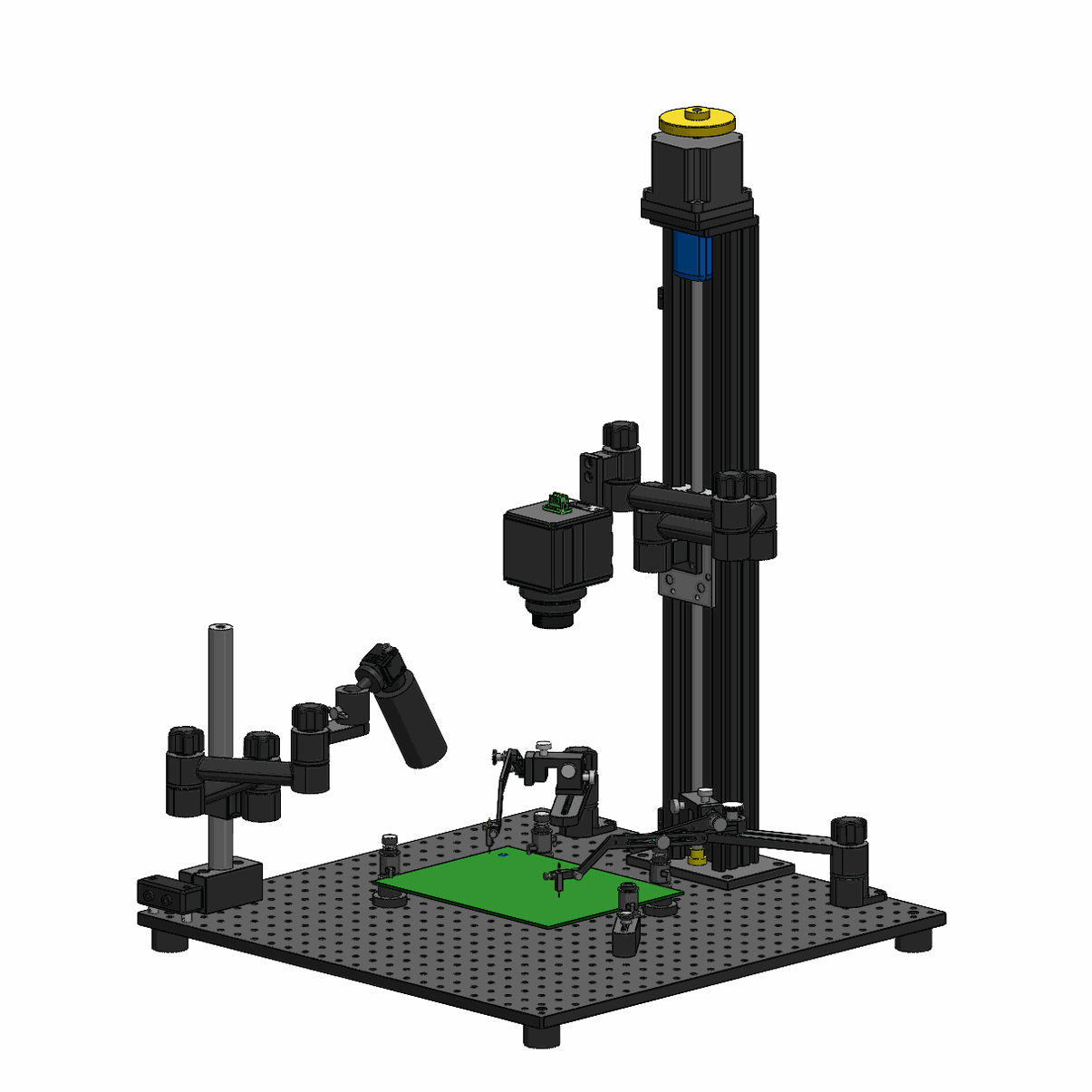

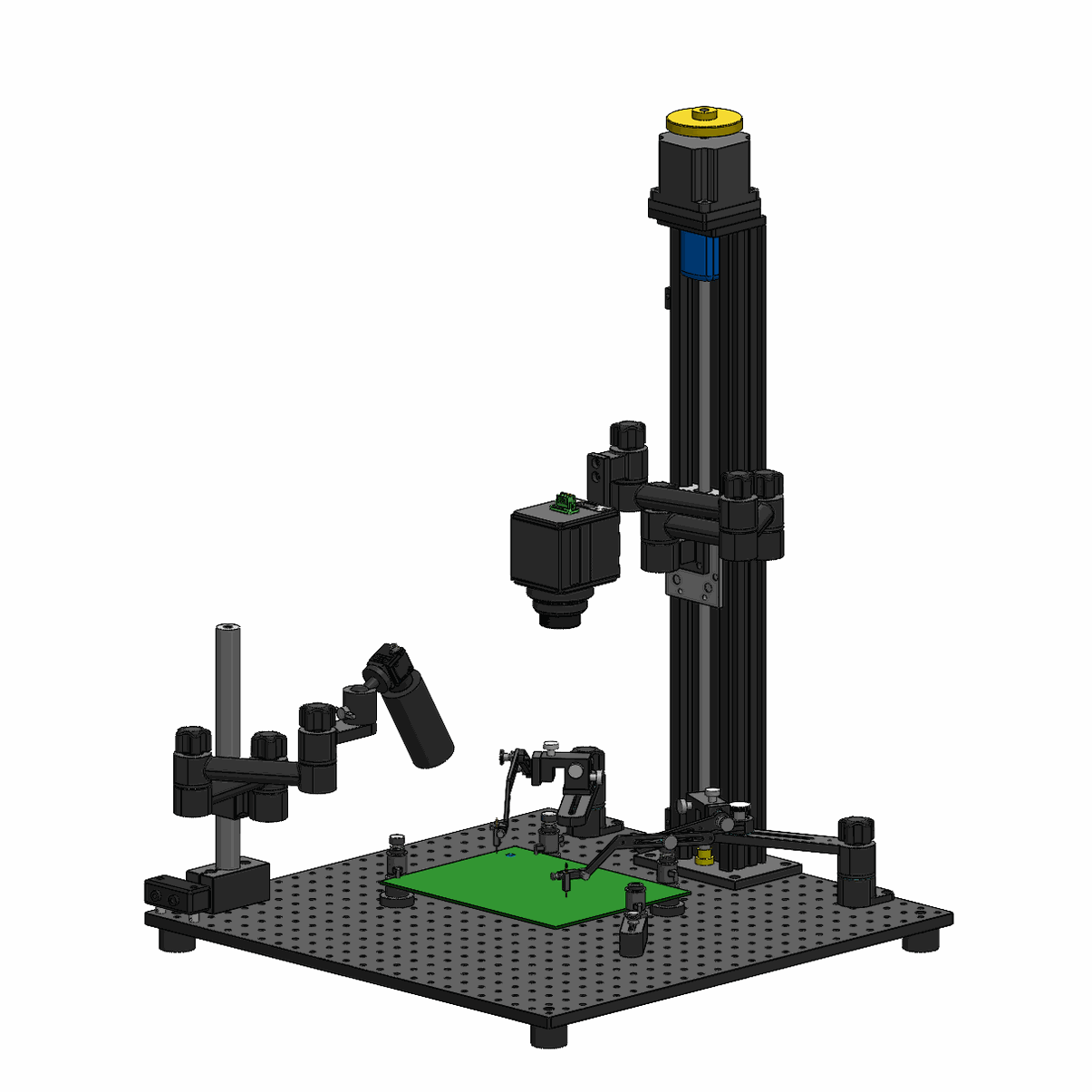

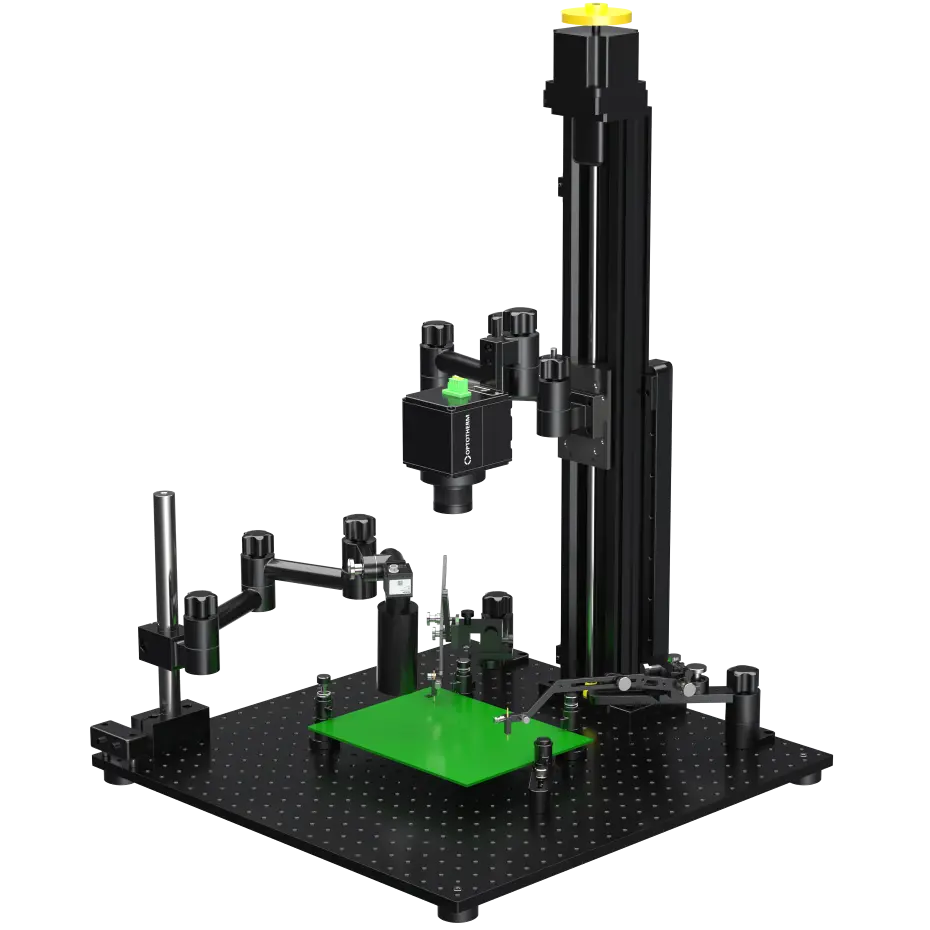

Sentris PCB 600-Z-ARM

Features:
  • Automated or manual Z axis
  • Thermal and visual camera positioning arms
  • Circuit board holders
  • Circuit board XYZ probers
  • 600x600mm mounting table
Applications:
  • Circuit board failure analysis
Compatibility:
  • LWIR IS640-17 (single lens only)

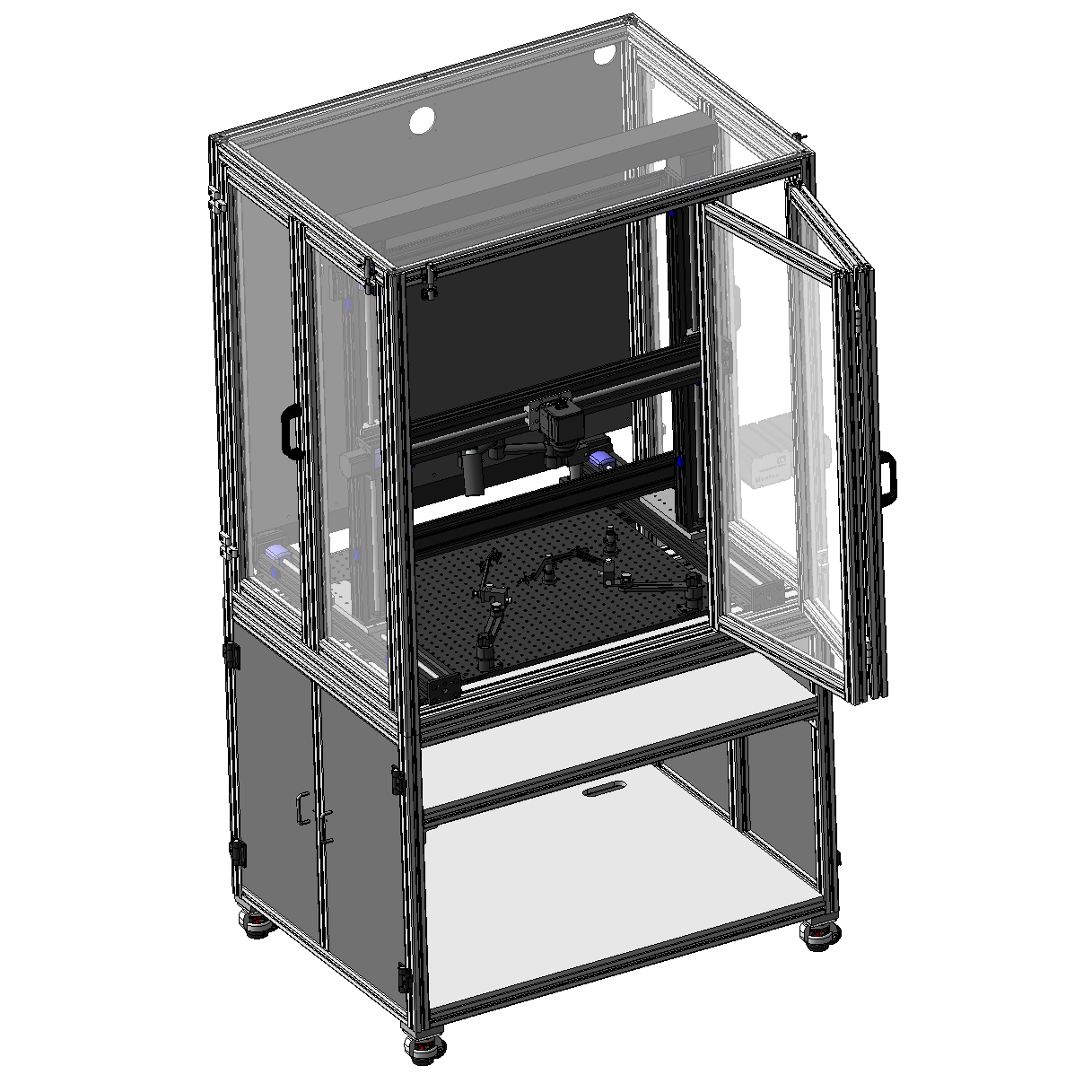

Sentris PCB 750-XYZ

Features:
  • Largest workspace
  • Automated XYZ thermal camera positioning
  • Stand alone enclosure
  • 750x750mm mounting table
Applications:
  • Large circuit board failure analysis
Compatibility:
  • LWIR IS640-17 (single lens or turret)
