Install D3XX Driver

To install D3XX drivers for an FTDI device under Windows 7, 8, 8.1and 10, follow the instructions given below:

  1. Connect the IS640-17 camera device to a spare USB port on your PC.

Manual Installation

If no suitable driver is automatically found via Windows Update, then user should manually install the driver. To manually install the driver, , follow the procedure given below.

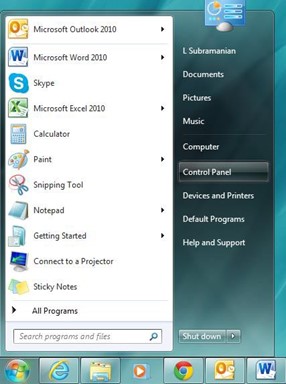

  1. Press the Windows Start button to bring up the start menu and select “Control Panel".

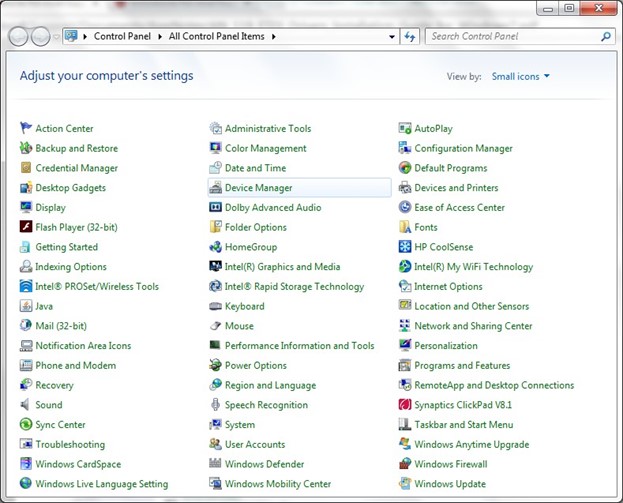

  2. From the Control Panel window select “Device Manager”.

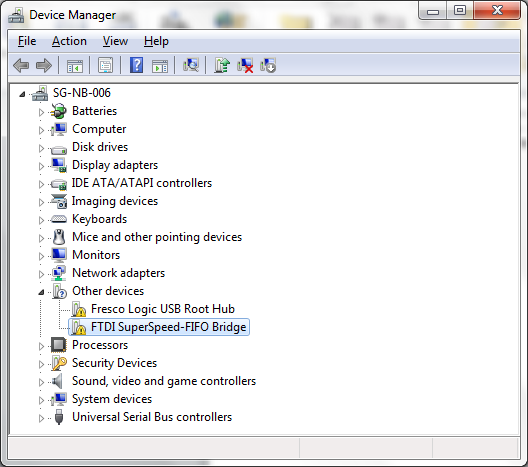

  3. In the Device Manager window there will be a device under Other Devices with a yellow warning symbol to indicate a problem i.e. no driver installed. The text next to this device will depend on the device attached. In this example the device was a FTDI SuperSpeed-FIFO Bridge.

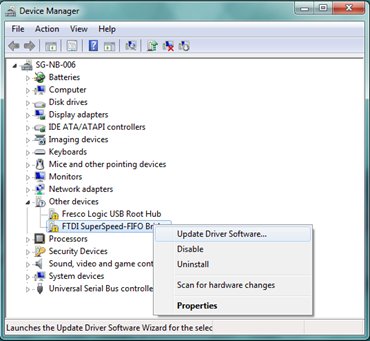

  4. Right click on the other device (FTDI SuperSpeed-FIFO Bridge in this example) to bring up a menu as shown below.

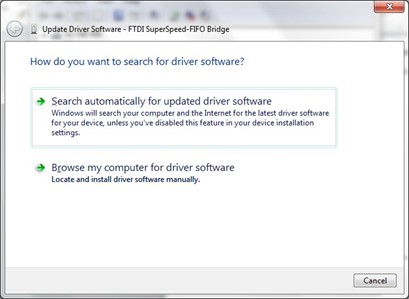

  5. From the displayed menu, select "Update Driver Software…". This then displays the option for an automatic search or a manual search.

  6. Select the second option to browse manually.

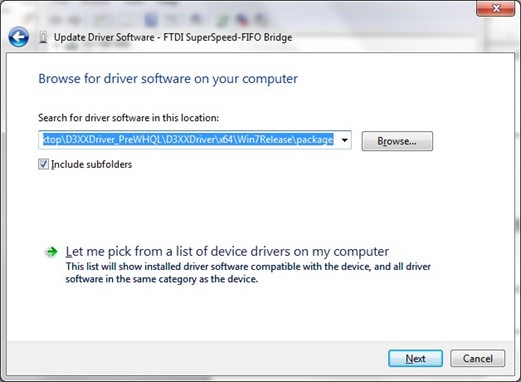

  7. In the address box put the exact location where the drivers have been saved to. This may be on a CD or in a folder on the PC. It is not necessarily the exact same location as shown in the screenshot. The drivers could have been saved anywhere of the users choice. Upon entering the address, click “NEXT” to start the installation.

    The D3XX Drivers are downloaded with Thermalyze and can be found at C:\Program Files\Optotherm\Thermalyze\FTDI.

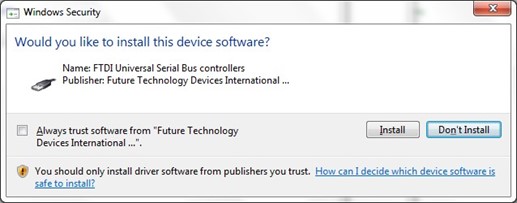

  8. A “Windows Security” dialog box may be displayed. Click Install to proceed with the installation.

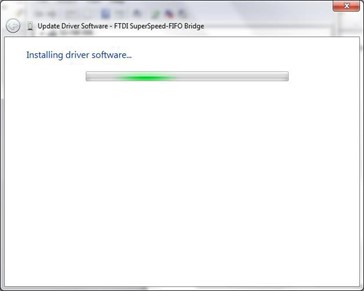

  9. The installation progress bar is displayed.

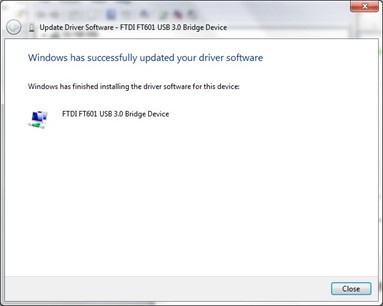

  10. Upon successful installation, a window indicating the same is displayed.

  11. Click on the Close button to go back to the Device Manager window.

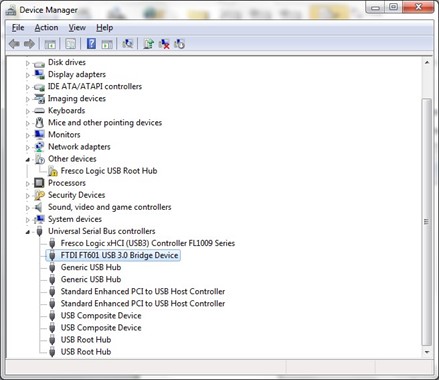

This time the Device Manager does not display the “FTDI SuperSpeed-FIFO Bridge” under “Other devices”. Instead an entry for FTDI FT601 USB 3.0 Bridge Device under “Universal Serial Bus controllers” is shown, which indicates that the installation is successful. The device is now ready for use.
