Flip Platform Device Window

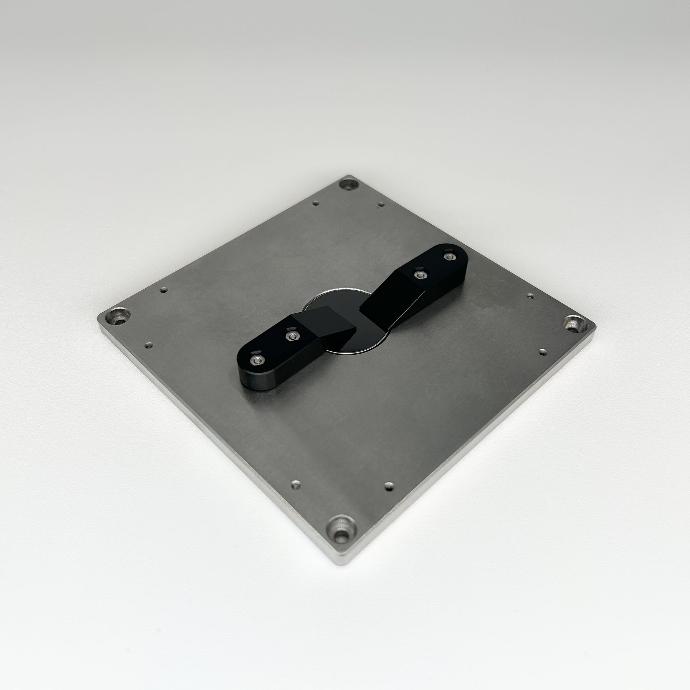

PN0746 sits in the opening of [PN0335] Device Flip Probing Platform and is used to hold a device over a germanium window, which is transparent in the infrared wavelengths. Thus, if [PN0335] is flipped, the opposite side of the device can be imaged with a thermal camera.
Applications
-
Backside analysis
Overview
Included Components
Required Products
Related Products
Manufacturer Information
Specifications
| Dimensions | 99.6 x 99.6 x 6mm |
| Window diameter | 23mm |
| Window material | Scratch-resistant diamond coated germanium |
| Net weight | 0.45kg |
Setup
Caution: The device hold arms also hold the germanium window in place. Window will fall out if device hold arms are removed or rotated off of the window.
-
Set PN0746 into the cutout on [PN0335] Device Flip Probing Platform. The top surface of PN0335 is magnetic and will hold PN0746 in place, when flipped.

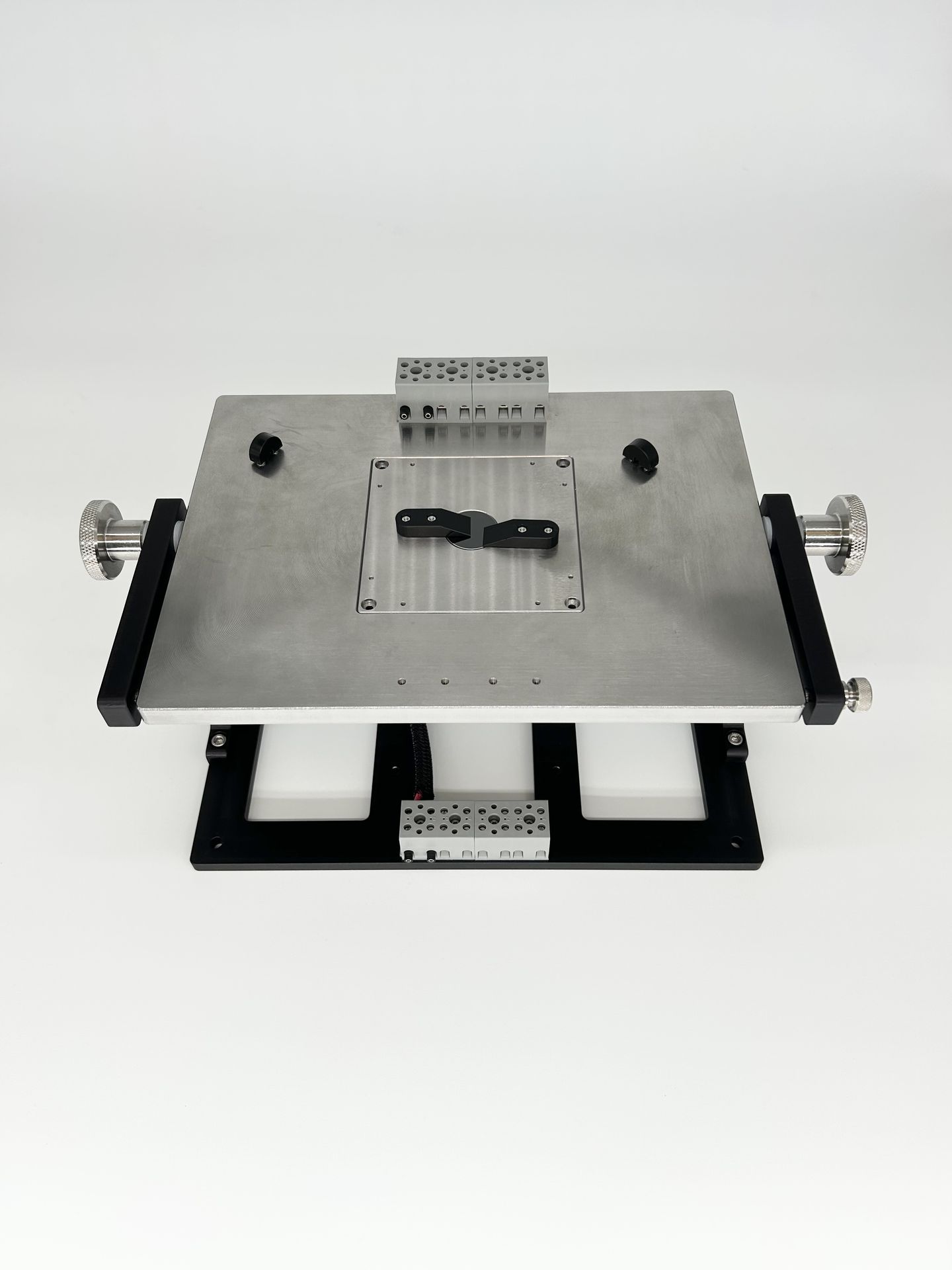

Figure 1: PN0746 setup on PN0335
Operation
Caution: The device hold arms also hold the germanium window in place. Window will fall out if device hold arms are removed or rotated off of the window.
Troubleshoot
Maintenance
