Flip Platform Device Clamp

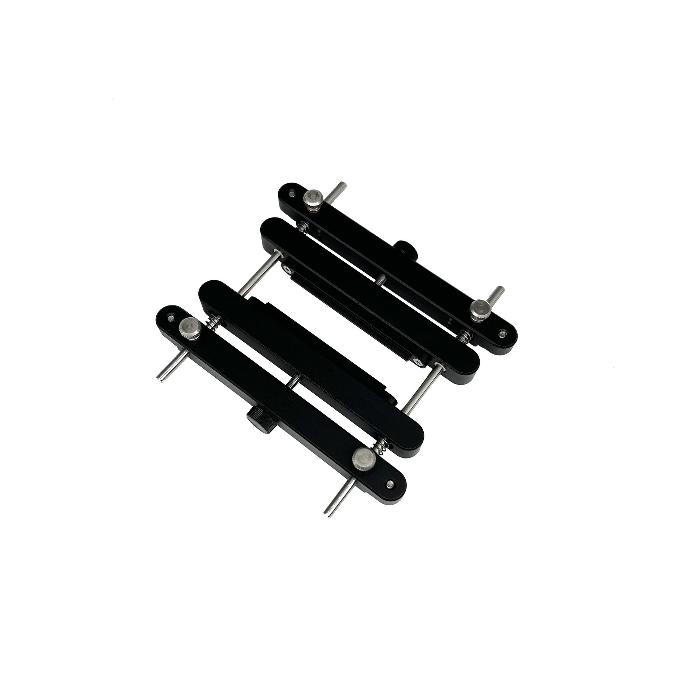

PN0715 sits in the magnetic opening of [PN0335] Device Flip Probing Platform and is used to hold a device in place. Thus, if [PN0335] is flipped, the opposite side of the device can be imaged with a thermal camera.
Applications
-
Backside analysis
Overview
Included Components
Required Products
Related Products
Manufacturer Information
Specifications
| Dimensions | 99 x 99 x 16.9mm |
| Net weight | 0.15kg |
| Thick edge | 1mm |
| Thin edge | 0.5mm |
| Maximum device size | 50 x 65mm |
