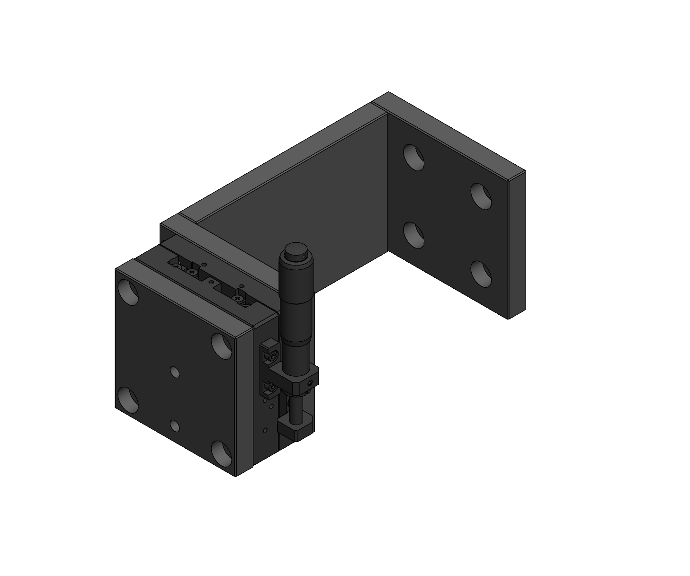

Linear Stage Z Bracket 600
PN0271 provides +/- 12.5 mm fine adjustment along the Z-axis. PN0271 mounts onto these positioning systems:
Applications
-
Camera fine adjustment
Overview
Included Components
-
65 x 65mm Linear Stage, Manual Z-axis
-
Mounting hardware
Included In
Required Products
Related Products
Manufacturer Information
Specifications
| Travel | ±12.5mm |
| Lead of Actuator |
0.5mm |
| Travel Accuracy |
3μm |
| Micrometer Readable Resolution |
0.01mm |
Setup
Mount to:
-
Mount the L bracket to the four threaded holes of the linear stage of the positioning system so that it is centered on the stage. The L bracket should protrude to the left of the stage when facing the positioning system (see Figure 1).
-
Mount the linear stage assembly to protruding L bracket so that the fine adjustment arm of the linear stage is on the right when facing the positioning system (see Figure 2).

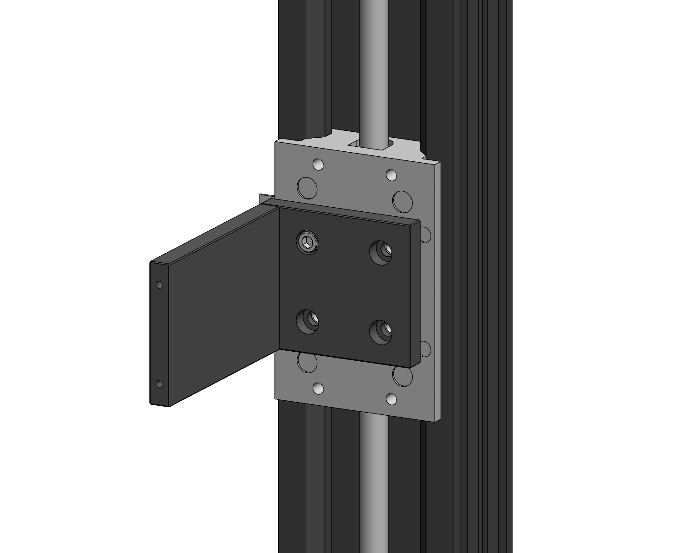

Figure 1: Mounting L bracket of PN0271 to the positioning system

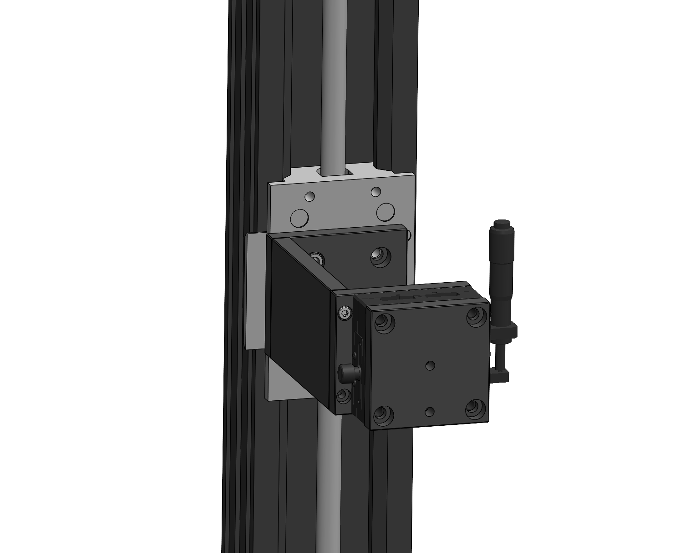

Figure 2: Mounting linear stage assembly of PN0271 to the positioning system
-
Mount the L bracket to the four threaded holes of the linear stage of the positioning system so that it is centered on the stage. The L bracket should protrude to the left of the stage when facing the positioning system (see Figure 1).
-
Mount the linear stage assembly to protruding L bracket so that the fine adjustment arm of the linear stage is on the right when facing the positioning system (see Figure 2).
Figure 1: Mounting L bracket of PN0271 to the positioning system
Figure 2: Mounting linear stage assembly of PN0271 to the positioning system
Operation
Rotate the fine adjustment arm clockwise from above to move the stage up.
Troubleshoot
Maintenance
