Equipment Racks & Accessories

We offer various sizes and styles of 19-inch standard equipment racks. Racks are measured in rack units (abbreviated U or RU). One rack unit is 1+3⁄4 inches, or 44.45 mm tall.

Applications

  • Store and use rack mountable components

view in store

Overview

Setup

Operation

Troubleshoot

Maintenance

    Overview

Racks

Equipment Rack with Castors

PN0728

  • Available in 8, 12, 16, and 22RU

  • 3 inch locking casters

  • Maximum Weight Capacity: 199.6 kg

  • Includes mounting hardware and tools

  • 22RU (pictured)

    • Dimensions (W x H x D): 50 x 114 x 46 cm

    • Weight: 20.3 kg

Desktop Equipment Rack

PN0729

  • Available in 6, 8, 10, 12, 14, and 16RU

  • ~15cm thinner than standard racks

  • Includes mounting hardware and tools

  • 10RU (pictured)

    • Dimensions (W x H x D): 49 x 44.6 x 30 cm

    • Weight: 7 kg

Mobile Equipment Rack

PN0730

  • 8RU

  • Dimensions (W x H x D): 57.2 x 46.4 x 67.3 cm

  • Recessed wheels, retractable handle, side handles

  • Weight: 13.2 kg

  • Includes mounting hardware and tools

Rack Accessories

Equipment Rack Drawer

PN0402

  • 1U

  • Dimensions (W x H x D):  48.3 x 4.4 x 39.0 cm

  • Maximum Weight Capacity: 10 kg

  • Includes mounting hardware and tools

Equipment Rack Shelf

PN0400

  • 2U

  • Dimensions (W x D): 48.5 x 36.2 cm

  • Weight: 2.5 kg

  • Maximum Weight Capacity: 18.1 kg

  • Includes mounting hardware and tools

16A Equipment Rack Power Distribution Unit

PN0399

  • 1U

  • Outlets: (x4) C13 in front, (x8) C13 and (x2) C19 in rear

  • C20 input with 3.05 m (10-ft) cord and 5 plug adapters ( C14, NEMA L6-20P, NEMA L5-20P, NEMA 5-20P and NEMA 5-15P)

  • Voltage input: 100 ~ 240V

  • Dimensions (W x H x D): 44.45 x 4.44 x 10.8 cm

  • Weight: 1.5 kg

  • Includes mounting hardware and tools

Rackmount kits

Rack Mount for One Motor Controller

PN0612

  • 3U

  • For use with 1 or 2 axis camera positioning systems

  • Includes mounting hardware and tools

Rack Mount for Two Motor Controllers

PN0613

  • 3U

  • For use with 3 or 4 axis camera positioning systems

  • Includes mounting hardware and tools

3RU Vacuum Controller Rack Mounting Kit

PN0703

  • 3U

  • For use with PN0257

  • Includes mounting hardware and tools

3RU Thermoelectric Controller & Heat Exchanger Rack Mounting Kit

PN0704

  • 3U

  • For use with PN0256 & PN0317

  • Includes mounting hardware and tools

Top of page

    Setup

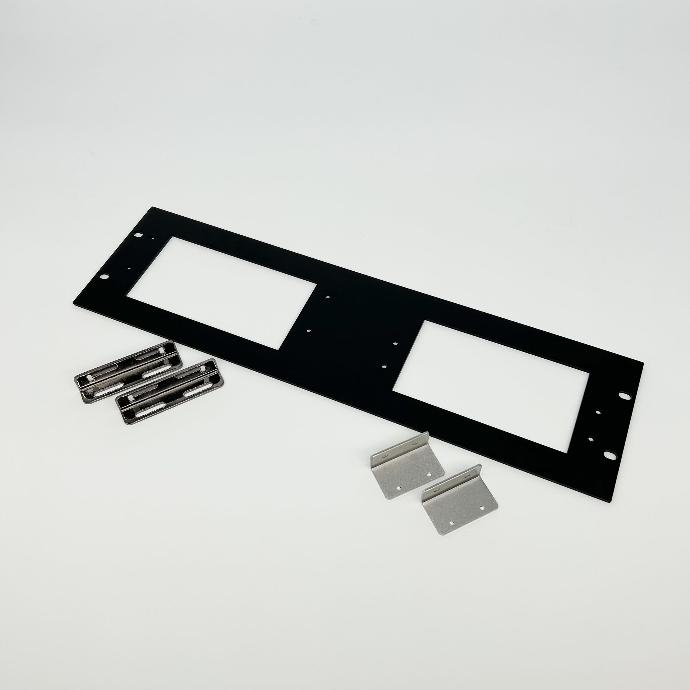

PN0703 3RU Vacuum Controller Rack Mounting Kit

  1. Install the Mounting Brackets [PN0706] to both sides of the Vacuum Controller [PN0257] using the included screws.

  2. Attach the Rack Mounting Plate [PN0488] to the Mounting Brackets using the included screws and nuts.

  3. Attach the Rack Mounting Plate to the desired equipment rack using the screws included with the rack.

  4. Connect the power supply and power cable to the vacuum controller and place in the integrated cable tray.


PN0704 3RU Thermoelectric Controller & Heat Exchanger Rack Mounting Kit

  1. Install the Mounting Brackets [PN0706] to both sides of the Thermoelectric Controller [PN0256] using the included screws.

  2. Install the Mounting Brackets [PN0582] to both sides of the Heat Exchanger [PN0317] using the included screws.

  3. Attach the Rack Mounting Plate [PN0487] to the Mounting Brackets using the included screws and nuts.

  4. Attach the Rack Mounting Plate to the desired equipment rack using the screws included with the rack.

  5. Connect the power supplies and power cables to the Thermoelectric Controller and Heat Exchanger. The power supplies can be placed in the Vacuum Controller Rack Mounting Plate [PN0488] integrated cable tray if purchased.
