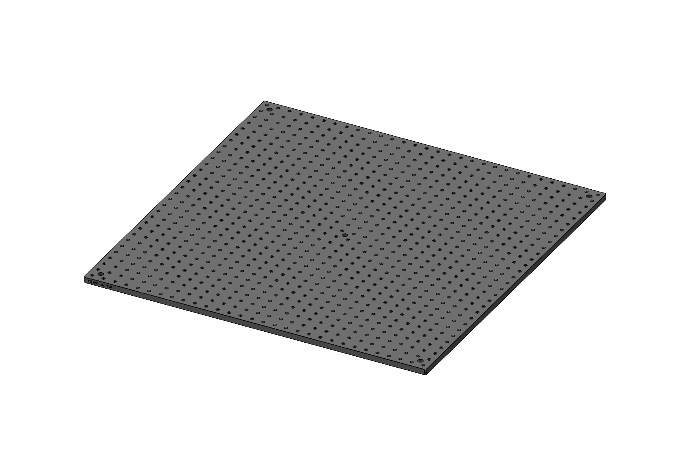

Mounting Table 750

PN0411 provides a grid of M6 threaded holes which provides layout flexibility and enables users to mount custom accessories.

Applications
  • Mounting stages and devices

Request a Quote

Overview

Specifications

Setup

Operation

Troubleshoot

Maintenance

    Overview

Included Components

  • Vibration isolation mounts

  • Mounting table rulers

Included In

Required Products


Related Products

Manufacturer Information


    Specifications

Dimensions 750 x 750 x 12.7 mm
Material
Aluminum Plate
Finish
Matte Black Anodized
Hole Size and Spacing
M6 Tapped Holes on 25 mm Centers
Counterbored Hole Size and Spacing  Four M6 Located at Corners - Inset 25 mm
Weight 24 kg (52.91 lbs)

    Setup

Mounting Table Setup
