Circuit Board XYZ Spring Probe Set

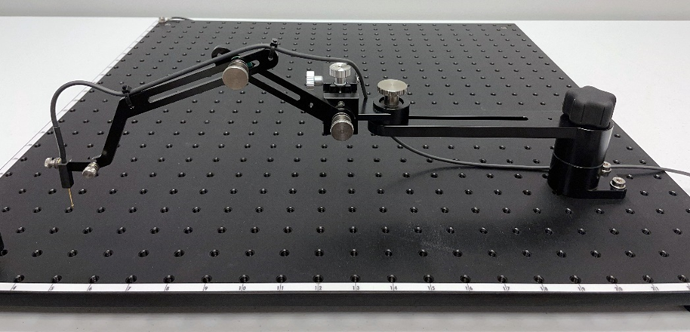

PN0295 is used to make electrical contact with circuit board traces, vias, and component leads.  A three-axis micro-positioner coupled with six adjustable joints allow the interchangeable spring probe to contact probe points in any orientation.  Ball and needle bearing washers enable precise control of joint compression so that joint stiffness can be fine-tuned for easy positioning and probing.

Applications

  • Probe circuit board traces, vias, and component leads

  • Probe semiconductor package leads

  • Probe small circuit board components leads, pads, vias

view in store

Overview

Specifications

Setup

Operation

Troubleshoot

Maintenance

    Overview

Included Components

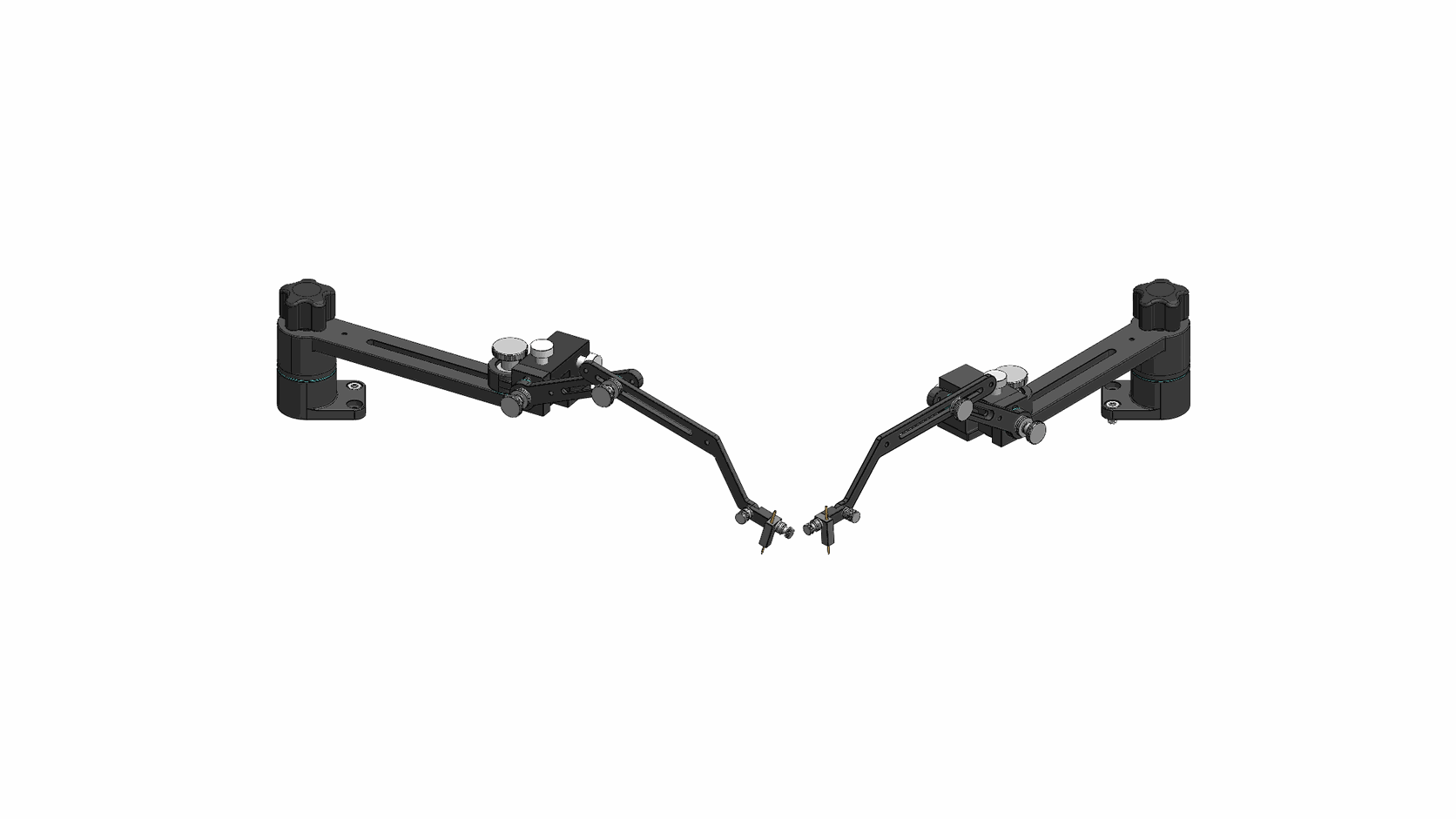

  • Set of 2 XYZ spring probes, fully adjustable to all angles

  • Fine and course adjustments

  • Tulip and spear head test probes

Required Products


Related Products

Manufacturer Information


Top of page

    Specifications

Reach 400mm
Mounting holes M6 threads on 25mm centers


Lead gauge 20 AWG
Voltage rated at 1,500 VDC and 11 Amps
Length 1.5m

Top of page

    Setup

Connection to test instrumentation is made using the included 1.5 m lead soldered to the spring probe socket with 4 mm banana plug.

Top of page

    Operation

Probing Instructions

  1. Center the X, Y, and Z micro-positioner thumbscrews.

  2. Adjust the tightness of each joint to permit joint adjustment but also rigid enough to compress the spring probe tip.

  3. Position the spring probe tip on or close to the contact site.

  4. Use the X, Y, and Z thumbscrews to compress the spring probe tip on the contact site.
