Univid SWIR Lenses

Lenses for the SW640-5 SWIR camera for microscopic and macroscopic analysis and Lock-in Photometry testing.
Product Information: https://www.optotherm.com/shop/4532

$ 0.00 0 USD $ 0.00

$ 0.00

[PN0784] Univid SWIR Lenses (0.5x)

[PN0785] Univid SWIR Lenses (2x)

[PN0786] Univid SWIR Lenses (5x)

[PN0787] Univid SWIR Lenses (10x)

[PN0788] Univid SWIR Lenses (20x)

[PN0924] Univid SWIR Lenses (50x)

[PN0926] Univid SWIR Lenses (6mm)

[PN0927] Univid SWIR Lenses (35mm)

This combination does not exist.

Request a Quotation

Documents

SW640-5 SWIR Lenses Operation Manual

SW640-5 SWIR Lenses Setup Manual

Explore this product

Overview

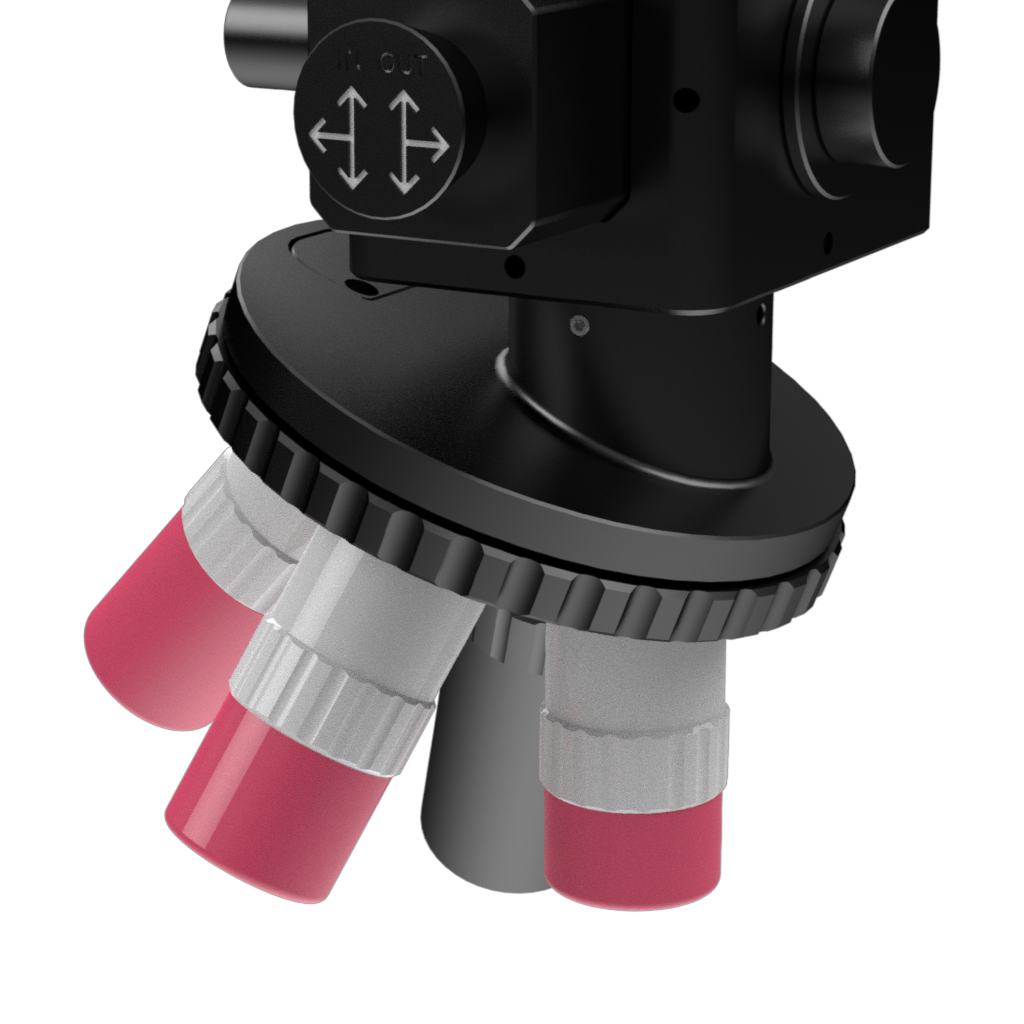

NIR Objective lenses with transmission from 400 to 1,800nm are available in magnifications of 2X, 5X, 10X, and 20X, and are compatible with [PN0790] SW640-5 Camera and [PN0792] 4 Position Turret.

Applications

NIR analysis

Features

Compatible Lenses

Specifications

Optics

	WFOV 6mm	WFOV 35mm	1/2X	2X	5X	10X	20X
Parfocal Distance			N/A	95mm	95mm	95mm	95mm
Focal Length	6mm	35mm	400mm	100mm	40mm	20mm	10mm
Tube Lens Focal Length			200mm	200mm	200mm	200mm	200mm
Working Distance	160-400mm	160-400mm	94mm	34.6mm	45mm	34mm	30.8mm
Field of View*	80 x 60 mm - 200 x 150 mm	16 x 12 mm - 40 x 30 mm	6.4 x 4.8mm	1.6 x 1.2mm	0.64 x 0.48mm	0.32 x 0.24mm	0.16 x 0.12mm
Numerical Aperture	0.076 - 0.031	0.076 - 0.031	0.025	0.055	0.14	0.28	0.29
Mounting Threads			M26x1	M26x1	M26x1	M26x1	M26x1
Wavelength Range	400 - 1,800nm	400 - 1,800nm	400 - 1,800nm	400 - 1,800nm	400 - 1,800nm	400 - 1,800nm	400 - 1,800nm

*Values apply only to lenses used with the Univid 200mm tube lens.
