Probe Needle Set of 10

Product Information: https://www.optotherm.com/probe-needle-sets

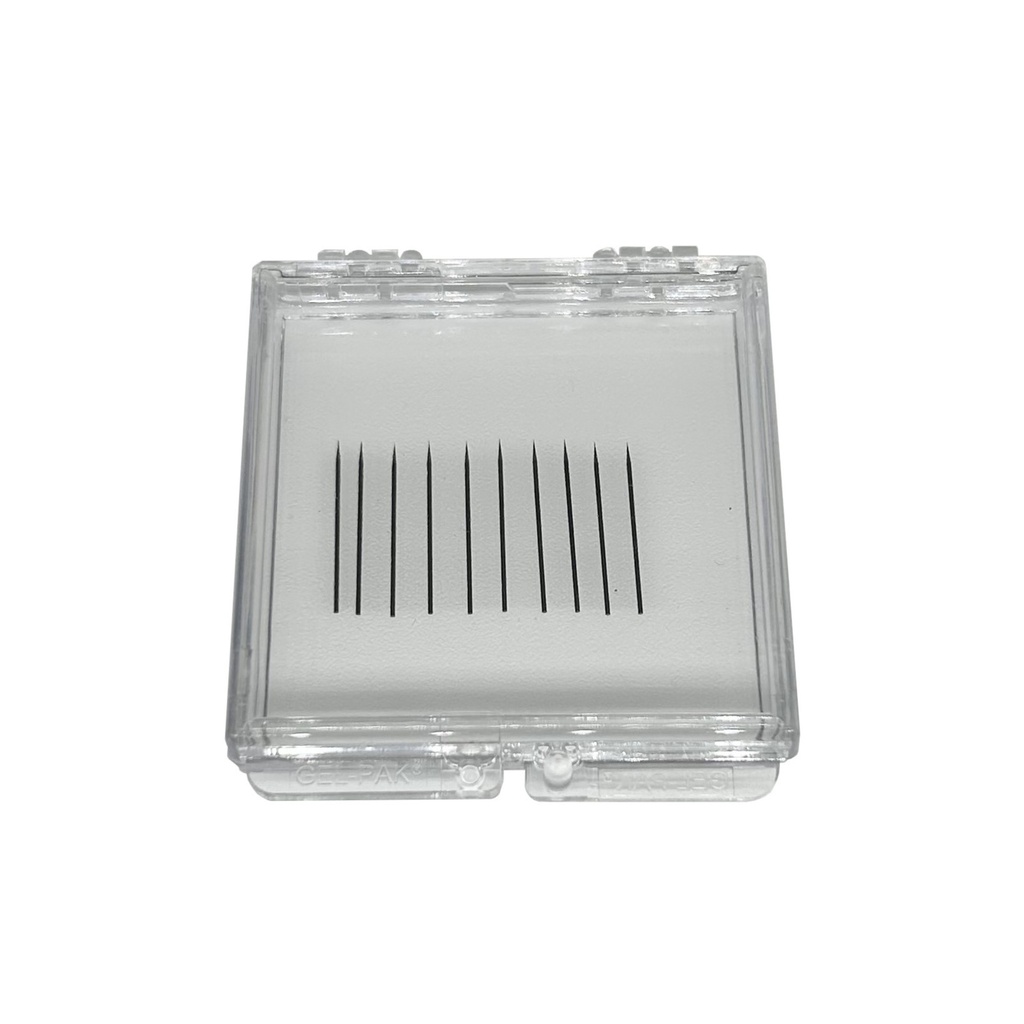

[PN0824] Probe Needle Set of 10 (Tungsten Carbide, 12mm, R5 microns, Spear)

[PN0625] Probe Needle Set of 10 (Tungsten Carbide, 19mm, R2.5 microns, Spear)

[PN0626] Probe Needle Set of 10 (Tungsten Carbide, 19mm, R5 microns, Spear)

[PN0463] Probe Needle Set of 10 (Tungsten Carbide - Gold Plated, 19mm, R5 microns, Spear)

[PN0611] Probe Needle Set of 10 (H62 Brass, 18mm, R50 microns, Spear)

[PN0470] Probe Needle Set of 10 (Beryllium Copper - Gold Plated, 16mm, R30 microns, Spring Loaded Spear)

This combination does not exist.

Request a Quotation

Explore this product

Overview

Applications

Features

Specifications

	Material	Plating	Diameter	Length	Tip Radius	Tip Type
PN0463	Tungsten Carbide	Gold Plated	0.5mm	19mm	R5μm	Spear
PN0625	Tungsten Carbide	N/A	0.5mm	19mm	R2.5μm	Spear
PN0626	Tungsten Carbide	N/A	0.5mm	19mm	R5μm	Spear
PN0824	Tungsten Carbide	N/A	0.5mm	12mm	R5μm	Spear
PN0611	H62 Brass	N/A	0.7mm	18mm	R50μm	Spear
PN0470	Beryllium Copper	Gold Plated	0.5-0.68mm	16mm	R30μm	Spring Loaded Spear
