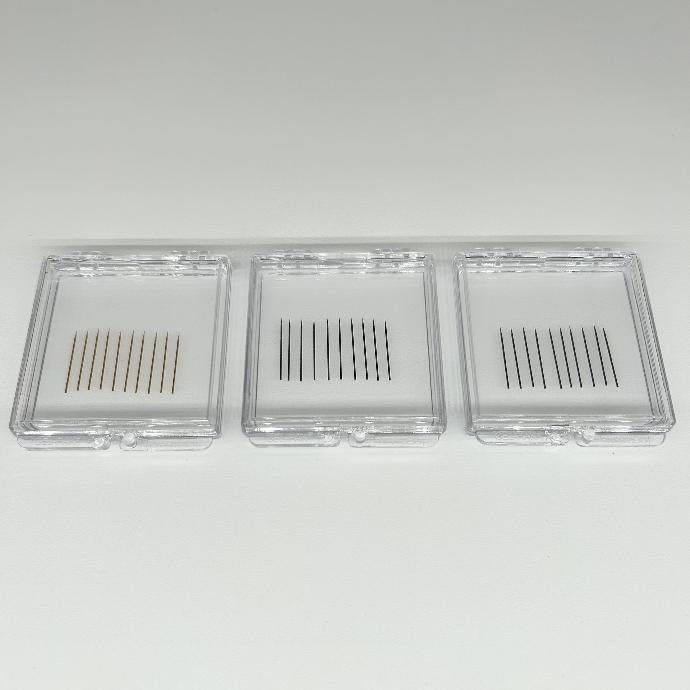

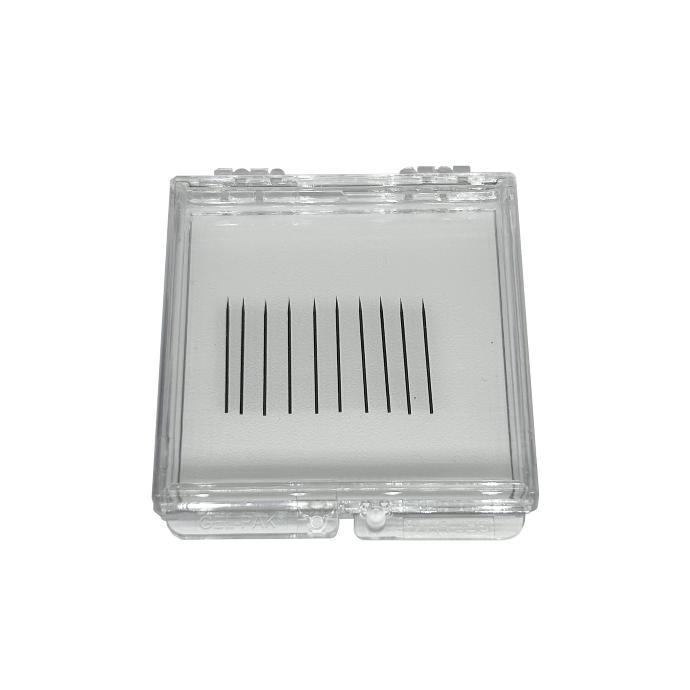

Probe Needle set of 10

PN0463, PN0625, PN0626, PN0824,  PN0611

Applications
  • Probe semiconductor die pads

  • Probe semiconductor package leads

  • Probe small circuit board components leads, pads, vias

View in store

Overview

Specifications

Setup

Operation

Troubleshoot

Maintenance

    Overview

Included Components


Included In

Required Products


Related Products


Manufacturer Information


    Specifications


Material Plated Diameter Length Tip Radius Head Type
PN0463
Tungsten Carbide
Gold Plated
0.5mm
19mm
R5μm
Spear
PN0625
Tungsten Carbide
N/A 0.5mm
19mm
R2.5μm
Spear
PN0626
Tungsten Carbide
N/A
0.5mm
19mm
R5μm
Spear
PN0824 Tungsten Carbide
N/A
0.5mm
12mm R5μm Spear
PN0611 H62 Brass
N/A 0.7mm 18mm R50μm
Spear
PN0470 Beryllium Copper
Gold Plated
0.5-0.68mm 16mm
Spring Loaded Spear
