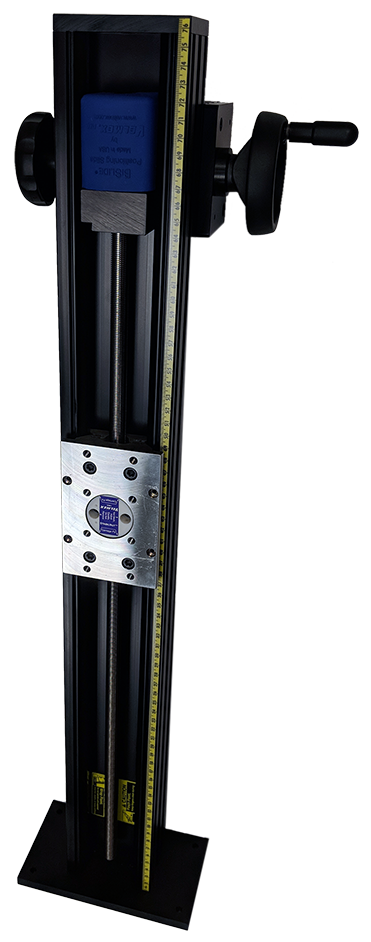

Linear Stage, Manual Z, 500mm
PN0273 enables 500mm manual travel along the Z axis.
Applications
-
Linear stage travel in the Z direction
Overview
Included Components
-
500mm travel linear stage
-
Mounting plate
Included In
Required Products
Related Products
Manufacturer Information
Specifications
| Z travel | 500 mm |
| Stage Height | 766 mm |
Setup
[PN0285] Mounting Table 600 - Setup
Mount to [PN0285] Mounting Table 600
-
Stand the stage on the Mounting Table so that the four (4) mounting holes in the base are aligned with the threaded mounting holes in the table according to Figures 1 & 2. Secure the stage to the table using the four (4) M6 x 20mm screws and the 5mm hex driver provided.
Note: It will help to count the number of threaded holes between components to determine their mounting locations.
-
Stand the stage on the Mounting Table so that the four (4) mounting holes in the base are aligned with the threaded mounting holes in the table according to Figures 1 & 2. Secure the stage to the table using the four (4) M6 x 20mm screws and the 5mm hex driver provided.
Note: It will help to count the number of threaded holes between components to determine their mounting locations.

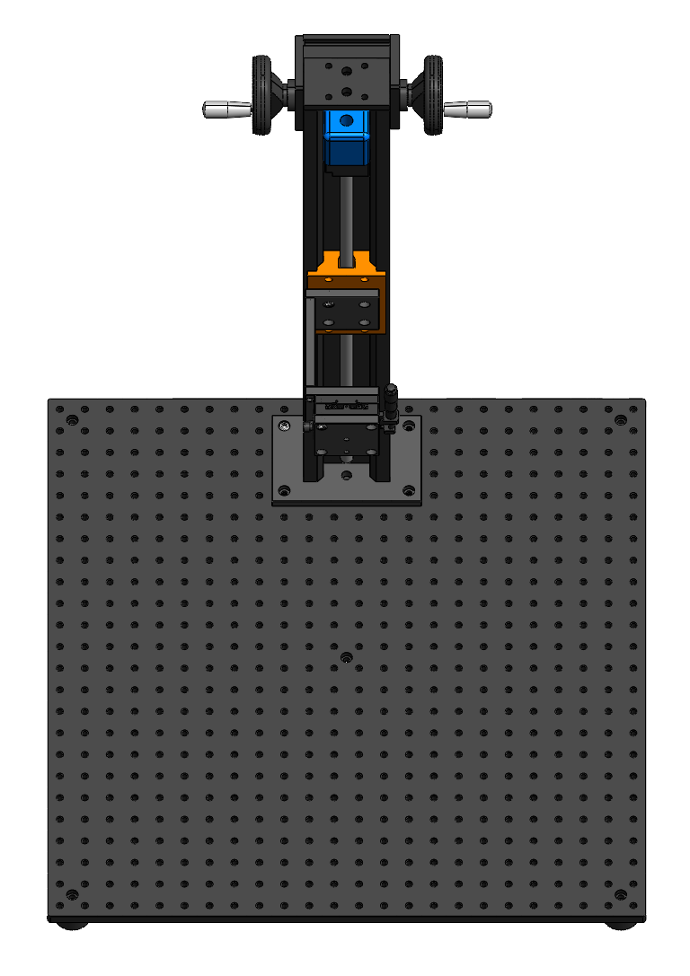

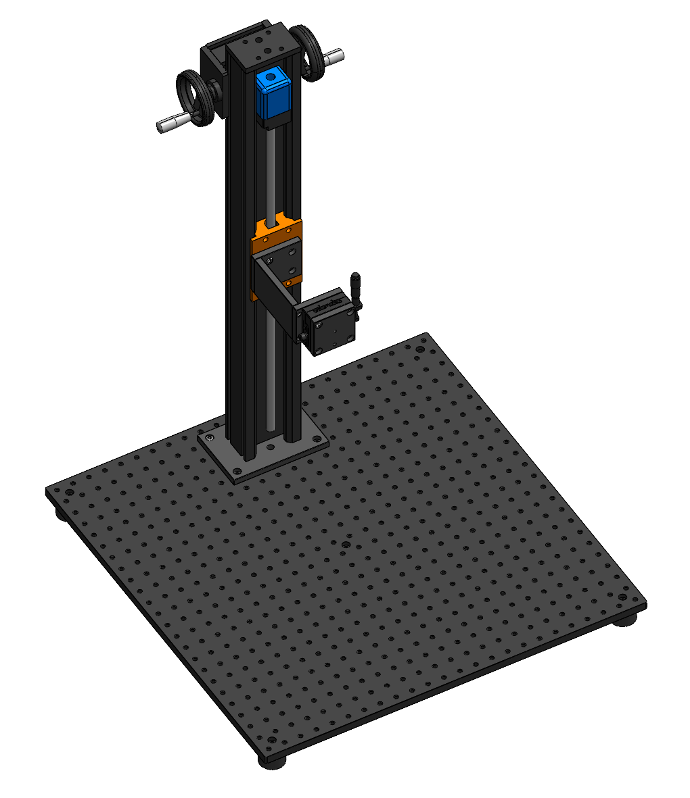

Figures 1 & 2: Mounting position on [PN0285]
Mount Camera Bracket
Operation
Rotate the manual handle clockwise to move the stage up and counterclockwise to move the stage down.
Troubleshoot
Maintenance
