Benchtop Test Enclosure 600 Series
PN0751, PN0783, PN0802, PN0803, PN0804, PN0805
Our test enclosures provide a test space for applications that require full visibility or a blackout environment. The enclosures includes a clamshell design for simple assembly and disassembly and for compact, low-cost shipping. All four sides have a left and right door that open to 80°, 120° and 170°.
Applications
- Custom test enclosure applications
- Optical breadboard enclosure
- Photon emission testing
Overview
Optional Components
- Interior LED lighting
- Exhaust Fan
- [PN0744] Enclosure Control Box
- [PN0745] Passthrough Panel for Banana Jack, BNC, and TRIAX connections
- Door activated N.O and N.C. Interlock System with auxiliary screw terminals
- Grounded extrusions
Required Products
Related Products

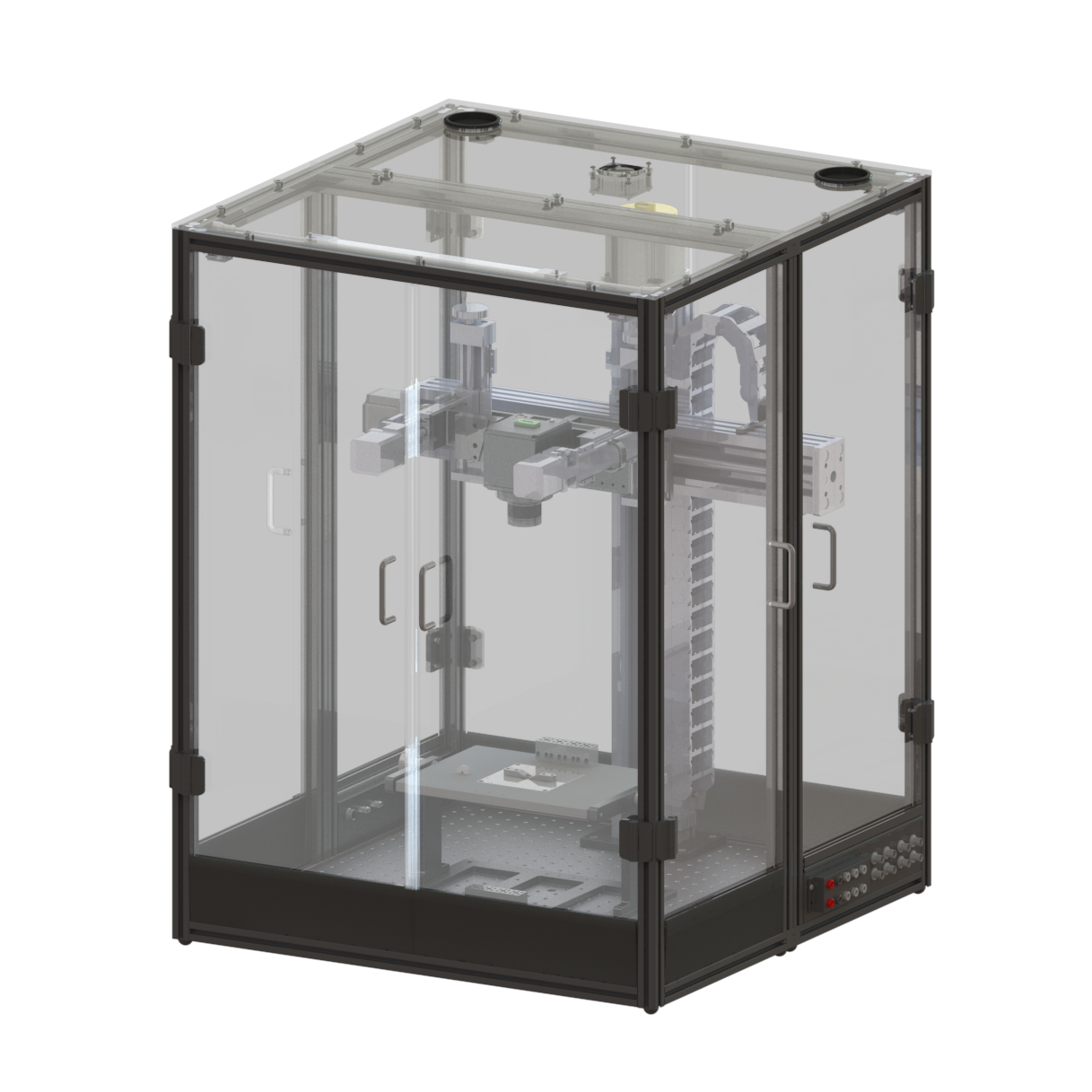

PN0783
Black anodized, clear ESD polycarbonate panel test enclosure.
PN0804 is the same enclosure but without electronics.
PN0751
Black anodized, black panels and rubber foam seal along edges for blackout environment applications.
PN0803 is the same enclosure but without electronics.

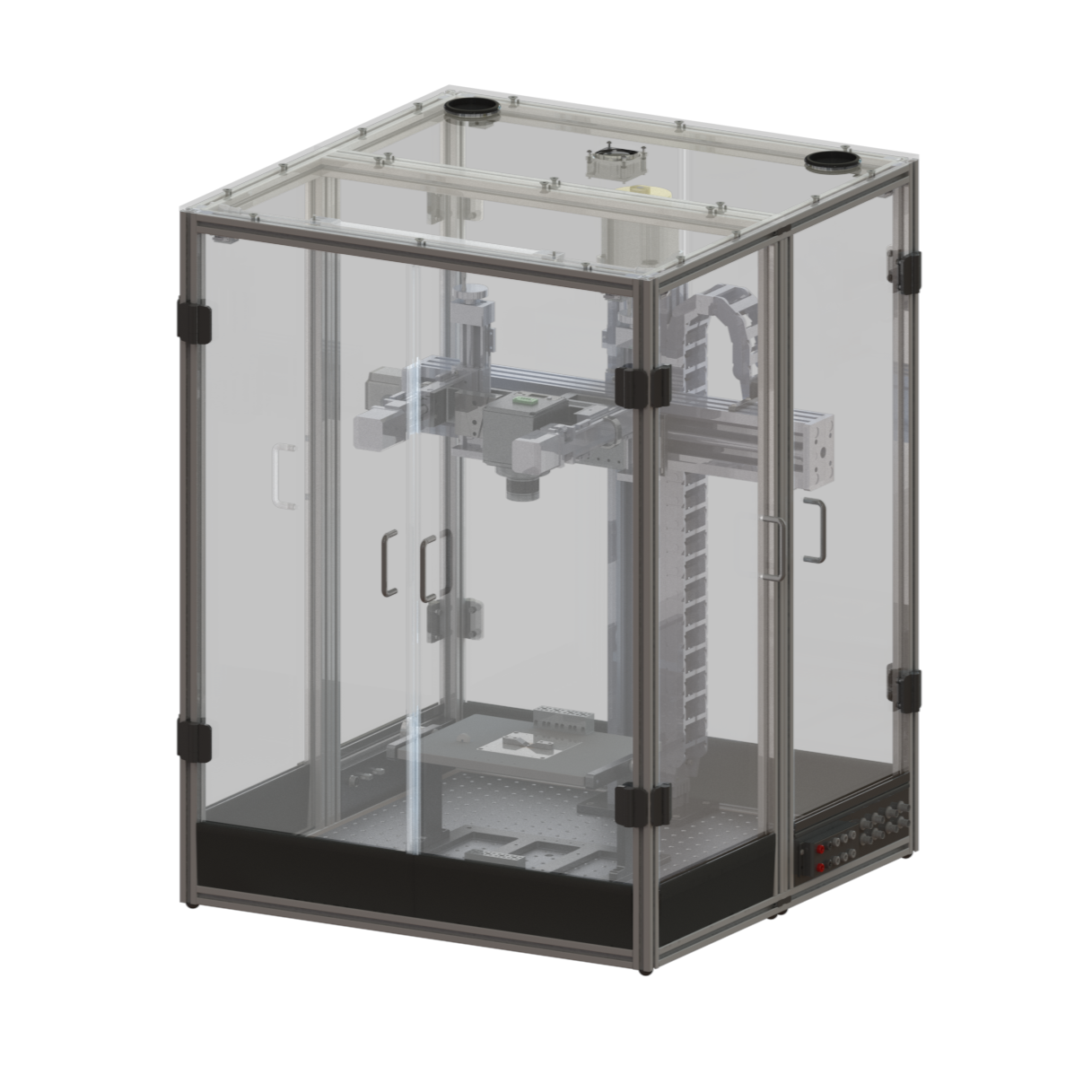

PN0802
Clear anodized, clear polycarbonate panel test enclosure for a more affordable option.
PN0805 is the same enclosure but without electronics.
Specifications
| Dimensions (l x w x h) | 74.5 x 77.0 x 92.1 cm |
| Weight | < 30kg |
| Breadboard clearance |
16mm on all four sides |
| Linear stage clearance | 31mm |
Operation

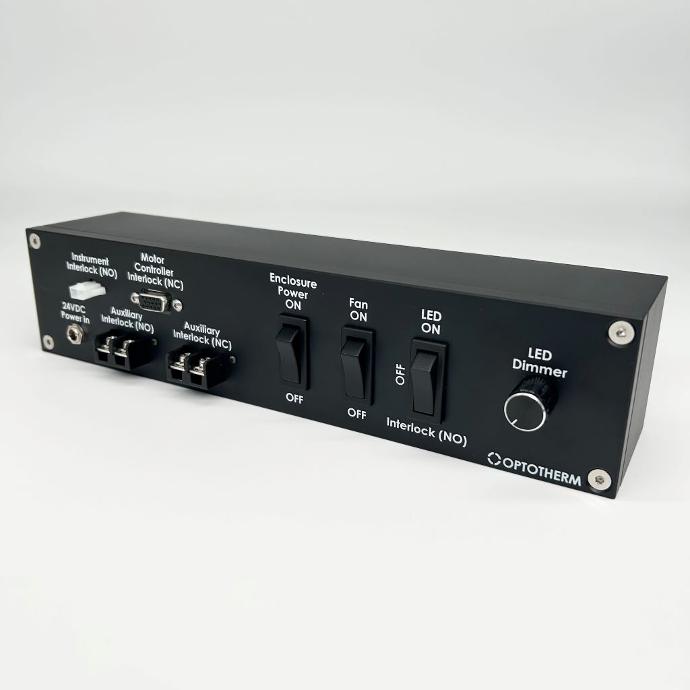

Figure 1: [PN0744] Enclosure control box for integrated interior LED lighting, exhaust fan, and interlock system.
Figure 2: [PN0745] Electrical connection passthrough panel for banana jack, BNC, and TRIAX connections
