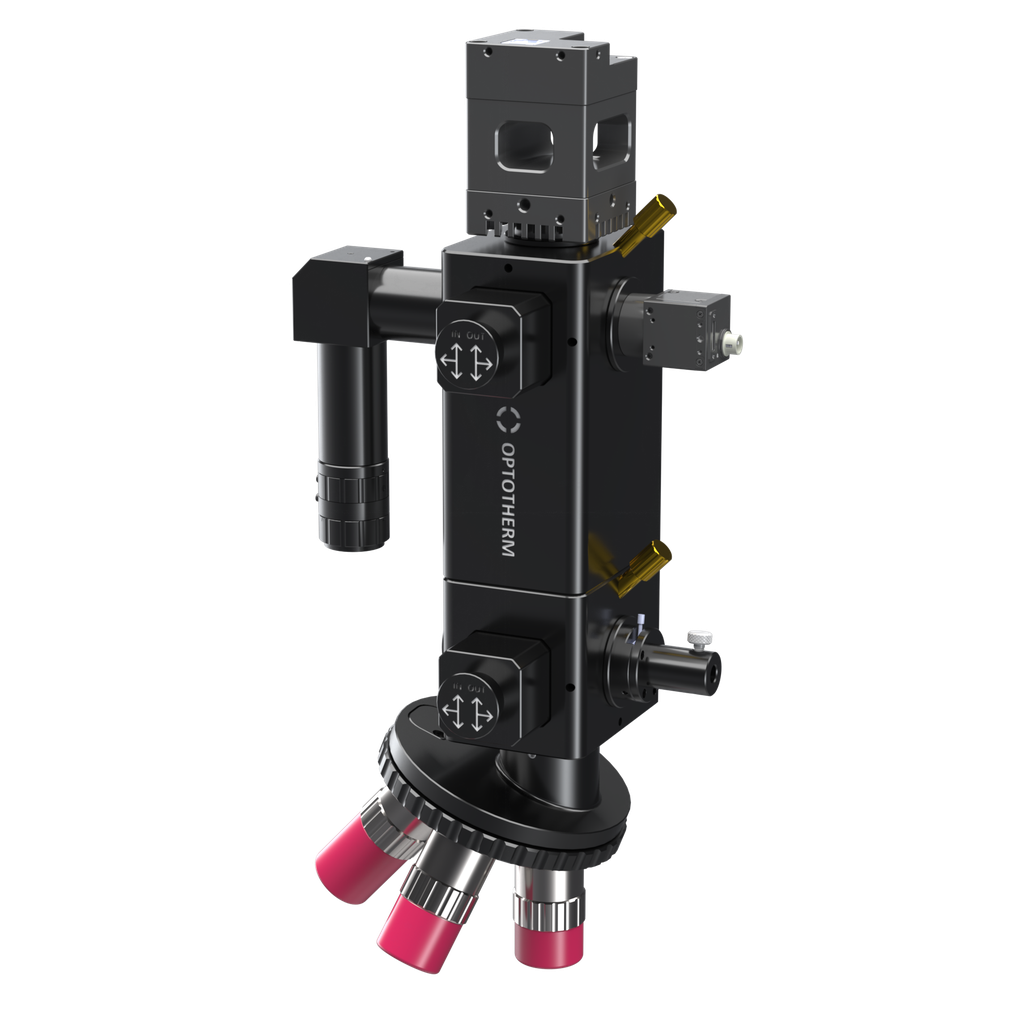

Univid Video Microscope System
Tube lens and infinity objectives available in Visible, NIR, and SWIR wavelengths.
Univid is comprised of a base system and optional accessories.
Univid is designed to mount infinity microscope objectives and visible, NIR, and/or SWIR cameras. Univid is unique in that three cameras can be installed simultaneously. To divert the optical path to one of three cameras, simply pull/push the 45° mirror block into position. A beam splitter block is located in infinity space to insert/remove the splitter from the optical path between objectives and camera for maximum light throughput.
The optional 4 position turret can be added for fast change of objective lenses. Univid is equipped with a 200mm tube lens, with custom tube lens coatings available for visible, NIR, and SWIR.
Applications
- Applications requiring visible, NIR, and/or SWIR analysis
- Photon emission
- Microscopic NIR infrared microscopy
- Microscopic SWIR microscopy
Terms and Conditions
1 year standard warranty
