Circuit Board Flip Fixture

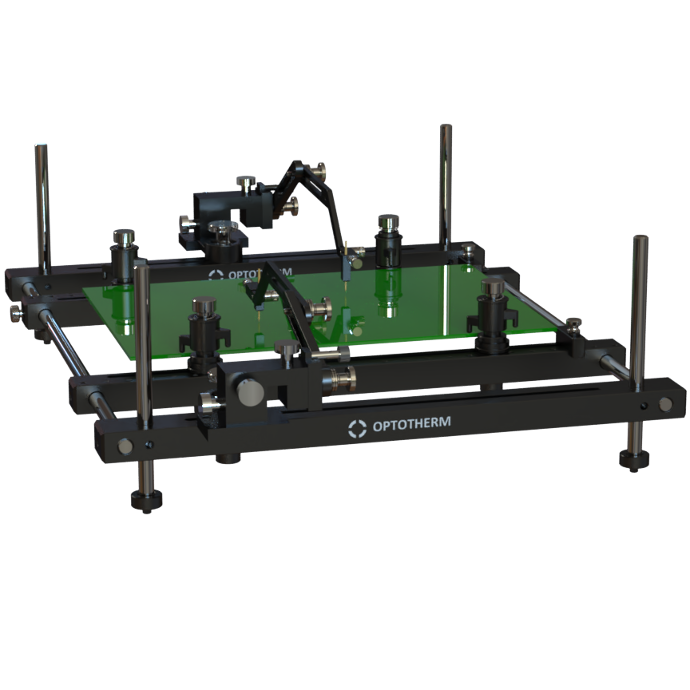

PN0862 is designed for circuit board probing and analysis. The fixture holds the board in place and can be flipped to image the backside. Boards are mounted with four adjustable circuit board holders. The fixture accommodates boards up to 340 mm x 345mm or longer (depending on surface mounted components).
Applications
-
Backside analysis
Overview
Included Components
-
(x4) Four Adjustable Circuit Board Holders
-
(x2) Two PCB Flip Fixture Stop
Required Products
Related Products
-
[PN0874] Left-handed Circuit Board XYZ Spring Probe
-
[PN0875] Right-handed Circuit Board XYZ Spring Probe
Manufacturer Information
Specifications
| Maximum Exterior Dimensions (l x w x h) |
561mm x 385mm x 154mm (plus space for the Circuit Board XYZ Spring Probe arm to maneuver) |
| Weight |
3.55kg |
| Maximum Board Size (w x l) |
340mm x 345mm or longer (depending on surface mounted components) |
