-Description-

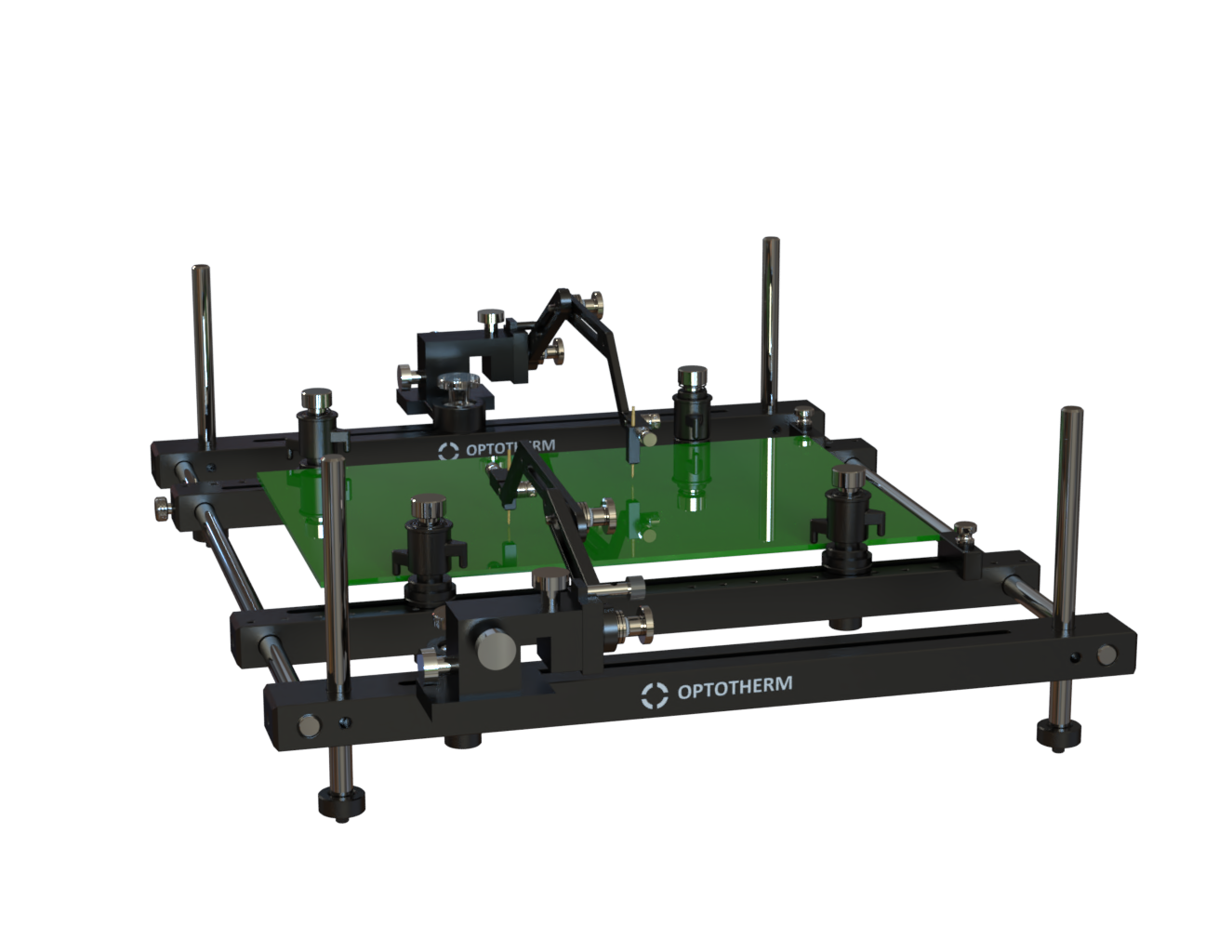

This fixture enables probing one side of a circuit board and imaging the opposite side. Mount the board with the spring-loaded clamps, make probe connections with the XYZ probe positioners, then flip the fixture to image the back side. Probe contacts are maintained at all times and can be adjusted by flipping the fixture right-side-up.
-Included Components-
(x2) XYZ Probe Positioners
(x4) adjustable circuit board holders
-Features-
Accommodates boards up to 340 mm x 345mm or longer (depending on surface mounted components)
-More Information-
https://www.optotherm.com/shop/2107
Internal Reference:
PN0862
Explore this product
Designed for circuit board probing and analysis. The fixture holds the board in place and can be flipped to image the backside. Boards are mounted with four adjustable circuit board holders. The fixture accommodates boards up to 340 mm x 345mm or longer (depending on surface mounted components).
