PCB / PCBA Testing Equipment

Circuit Board Testing

Position, probe, flip, and test PCBAs

Request a Quote

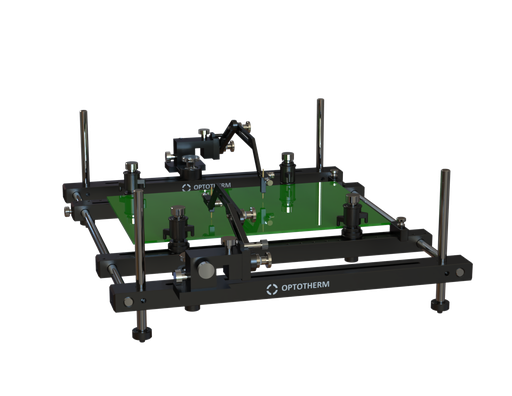

Circuit Board Flip Fixture
-Description-
This fixture enables probing one side of a circuit board and imaging the opposite side. Mount the board with the spring-loaded clamps, make probe connections with the XYZ probe positioners, then flip the fixture to image the back side. Probe contacts are maintained at all times and can be adjusted by flipping the fixture right-side-up.

-Included Components-
(x2) XYZ Probe Positioners
(x4) adjustable circuit board holders

-Features-
Accommodates boards up to 340 mm x 345mm or longer (depending on surface mounted components)

-More Information-
https://www.optotherm.com/shop/2107

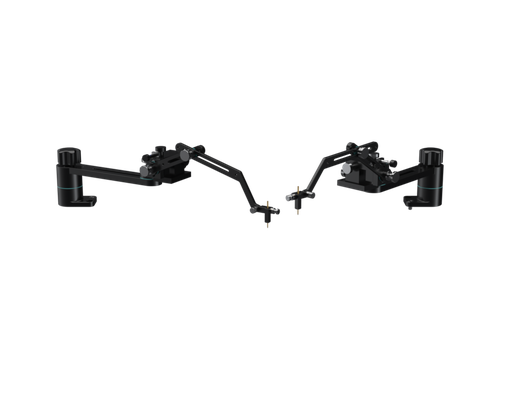

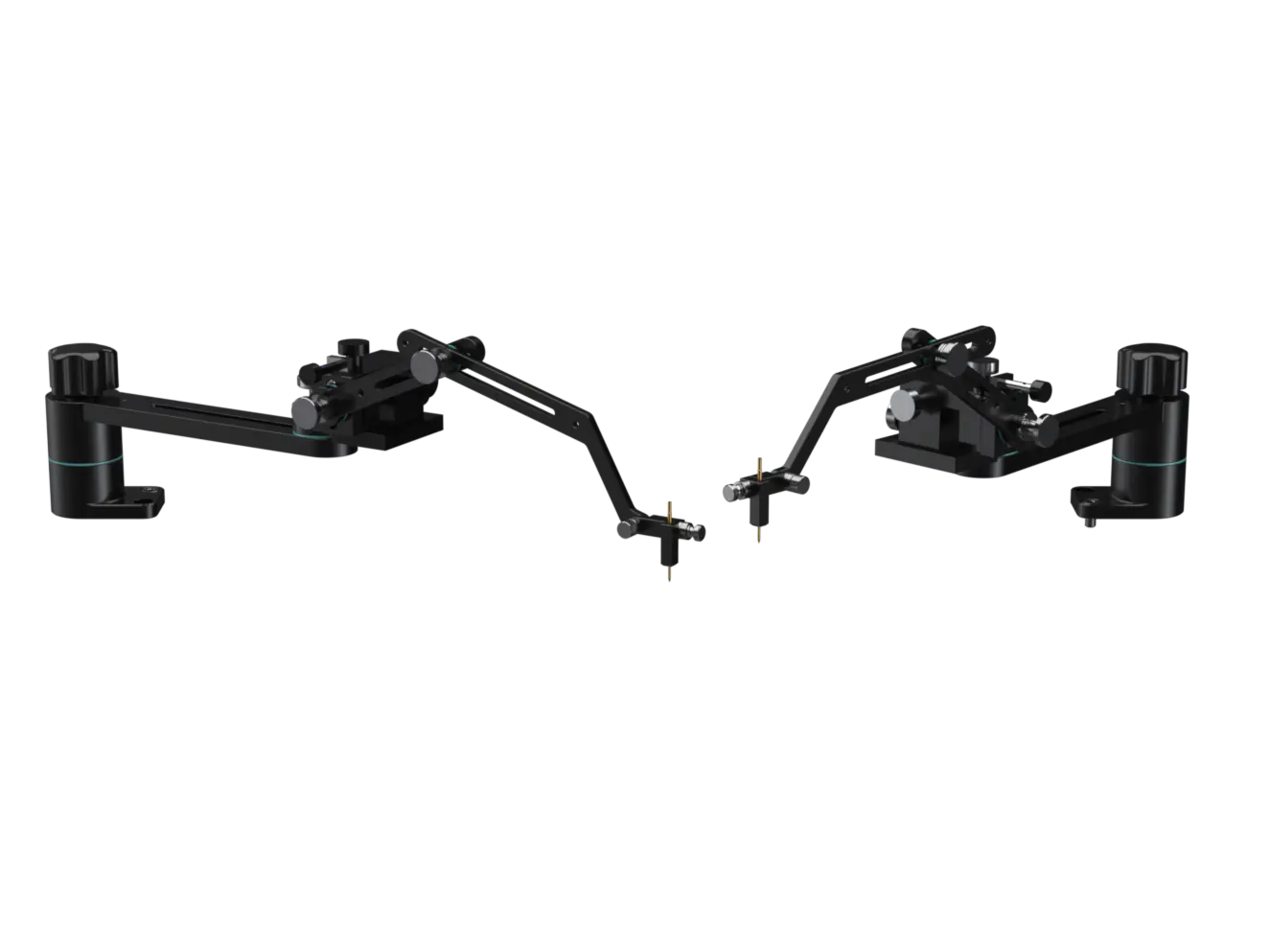

Circuit Board XYZ Probe Positioner Set
-Description-
Make probe connections to pads, vias, and components on PCBs and PCBAs. The two XYZ probe positioners mount to a metric mounting table, reach up to 300mm away from their base, and are fully adjustable to all angles. Recommended for probing circuit boards up to 18x24 inches (~508x610mm).

-Included Components-
(x2) XYZ probe positioners, assorted needle probes, and mounting hardware

-Features-
Up to 300mm reach, course and fine adjustments, fully adjustable to all angles

-More Information-
https://www.optotherm.com/shop/1165
