System Components

-Description-
SWIR camera lens for microscopic analysis and Lock-in Photometry testing.

-More Information-
https://www.optotherm.com/shop/4532

Relay for the Univid Microscope bypass / body shutter. Powers and controls the shutter during Lock in Photometry (LIP) tests.
Includes connections for up to two (x2) shutters.

Position electronic device & mini PCB / PCBA testing equipment. Motorized Z stages enable homing and the ability to reposition the cameras automatically to known precise positions.
Includes motorized X&Y axis stages, linear stage motor controller, and necessary hardware.
254x254mm XY axis travel.
Product Information: https://www.optotherm.com/shop/1176

Shutter for the Univid Microscope bypass / body. Used to test devices that cannot be cycled with Lock in Photometry (LIP).

-Description-
Universal video microscope for visible, NIR, and/or SWIR infinity microscope objectives and cameras;
used for photon emission testing, microscopic probing, and SWIR analysis.

-Included Components-
Univid microscope body configured with an integral 200mm 400-2000nm tube lens and a four (x4) position turret for microscopic objective lenses.

-More Information-
https://www.optotherm.com/shop/1995

Short Wavelength Infrared (SWIR) Camera for use with the Univid Universal Video Microscope, 640x480p, 5-micron detector pitch.
Includes SW640-5 camera, storage case, 5m USB3.0 cable.
Product Information: https://www.optotherm.com/shop/1994

*This product is export controlled and requires documentation and/or an export license prior to exporting*

-Description-
The emissivity coating increases the surface emissivity to approximately 0.50, depending on coating thickness and uniformity. After the coating is applied, Emissivity Tables or Region Emissivity software compensation can then be performed to obtain accurate temperature measurements. The coating can easily be removed with a nonflammable and low-toxicity solvent.

-Included Components-
Airbrush kit, emissivity coating, emissivity solvent

-Features-
The emissivity coating is only 1-2 microns, optically transparent but diffuses light, nonflammable, low-toxicity, and can withstand continuous temperatures of up to 200°C (392°F).

-More Information-
https://www.optotherm.com/shop/1180

-Description-

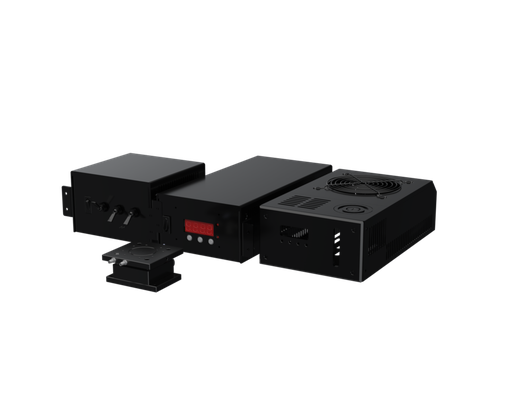

Secure devices under test with vacuum pressure and heat or cool them with the integrated thermoelectric chuck.

-Included Components-
Thermoelectric Peltier vacuum chuck, spring-loaded device clamps, and Thermoelectric vacuum controller with vacuum controls and liquid heat exchanger.

-Features-
80x80mm Thermoelectric chuck with vacuum rings and 0-150°C range, 24VDC low voltage operation

-More Information-
https://www.optotherm.com/shop/1116

-Description-

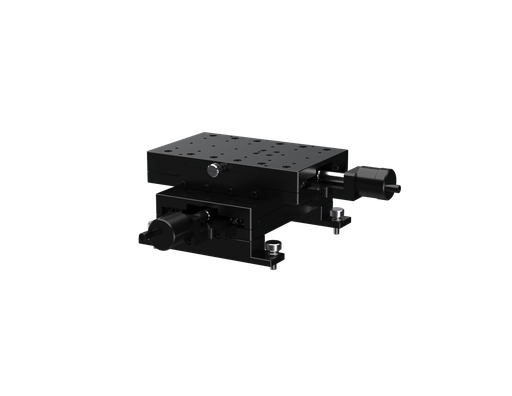

Manual XY translation stage for positioning devices and small circuit boards

-Included Components-
XY translation stage and mounting hardware for metric mounting tables

-Features-
100x160mm platform with M4-0.7mm mounting holes on 25mm centers and ±35mm travel with 0.1mm graduations

-More Information-
https://www.optotherm.com/shop/1115
