LW320-12 Camera

Test Article

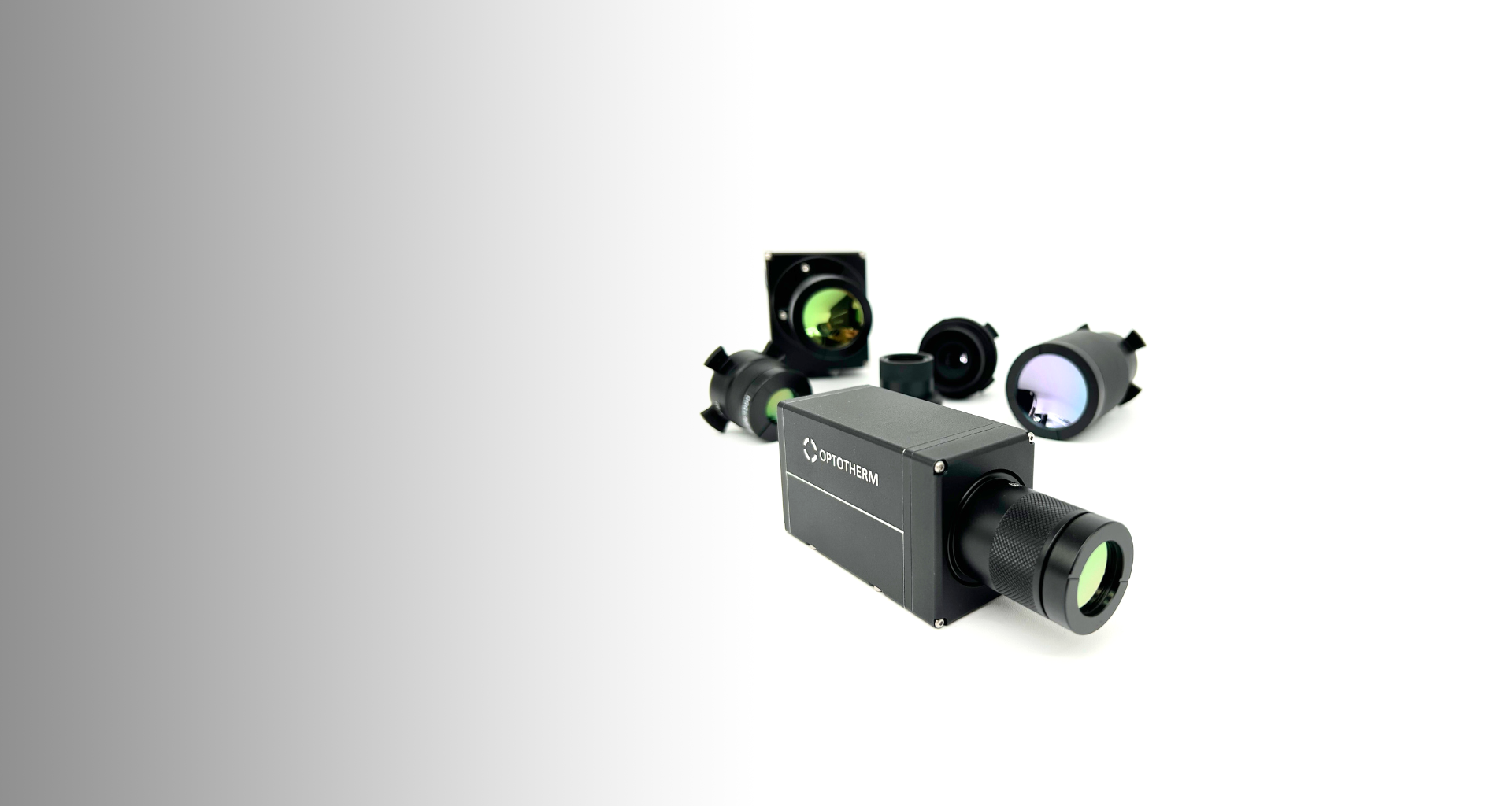

PN0923 At the core of the Micros system is Optotherm's LW320-12 camera, designed for applications requiring high sensitivity, resolution, and accuracy. We developed this camera series based on uncooled microbolometer technology to provide high performance and reliability at an affordable price point. A solid aluminum chassis improves thermal uniformity within the camera detector, optics, and electronics and facilitates optimum calibration accuracy over the ambient temperature operating range.

Applications

Semiconductor device failure analysis
Circuit board failure analysis
Microscopic temperature measurement and analysis of materials

Microbolometer Technology

Infrasight cameras contain an infrared detector called a microbolometer. A microbolometer is an array of tiny heat detecting sensors that are sensitive to infrared radiation from approximately 7 to 14µm in wavelength. Each array element is approximately 17 x 17µm in dimension.

As infrared energy strikes an individual bolometer element, the element increases in temperature, and its electrical resistance changes. This resistance change is measured and then processed into temperature values which can be represented graphically in a thermal image.

A microbolometer is an uncooled infrared sensor; the detector array does not need to be cooled in order to produce highly sensitive thermal images. Photon detectors, such as InSb (Indium Antimonide) and MCT (Mercury Cadmium Telluride) infrared detectors, can improve thermal sensitivity but require the detector to be cooled to cryogenic temperatures utilizing cooling methods such as Stirling cycle engines and liquid nitrogen. The use of photon detectors increase the cost of infrared cameras, decrease ease-of-use, and lead to more frequent and expensive maintenance.

Comprehensive Calibration

Each camera undergoes a rigorous calibration procedure over the span of several days to precisely correlate detector response to temperature measurement.

Included Components

Infrasight radiometric infrared camera (see models in specifications below)
Shock resistant carrying case
3m USB3 cable for IS640-17 (or 5m PoCL cable for retired IS640)

Required Products

[PN0177] Thermalyze Image Analysis Software
At least one LW320-12 compatible lens (see in specifications below)
