Camera Bracket IS640-17 to XS

PN0322

This bracket allows a IS640-17 camera to be mounted on PN0261.

Applications

Request a Quote

Overview

Specifications

Setup

Operation

Troubleshoot

Maintenance

    Overview

Included Components


Additional Items Required


Manufacturer Information


    Specifications


    Setup

Installation

  1. Attach PN0322 to PN0261 using four (4) 6-32 screws provided (Figure 1).

  2. Attach the IS640-17 camera to PN0322 using two (2) M6 thumbscrews provided (Figure 2).

Camera Damage: Hold the camera securely when handling and mounting.

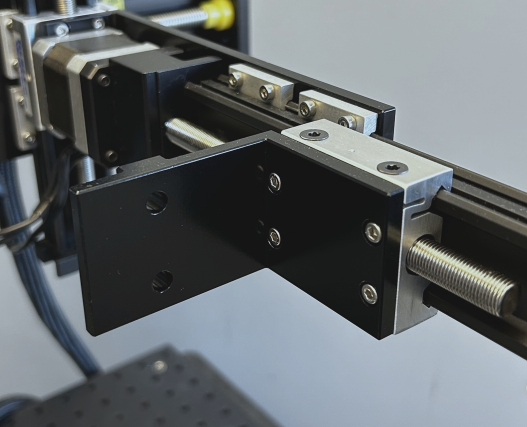

Figure 1: PN0322 mounted on PN0261

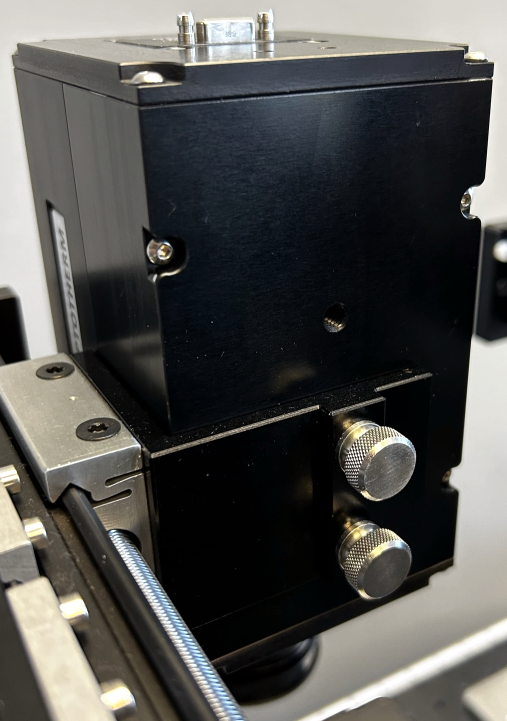

Figure 2: IS640-17 mounted on PN0322
