Camera Positioning System Auto Z 600

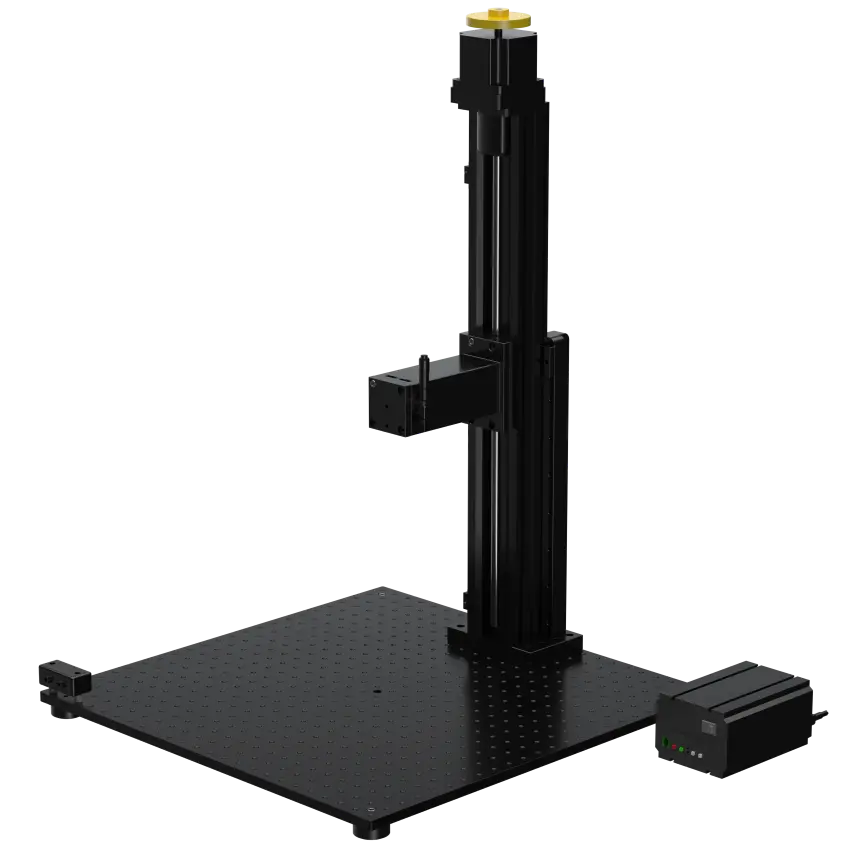

PN0303  enables fine positioning of a thermal camera along the Z-axis. The motorized Z stage enables homing and the ability to reposition the cameras automatically to known precise positions.

Applications
  • Semiconductor device failure analysis

  • Circuit board failure analysis

view in store

Overview

Specifications

Setup

Operation

Troubleshoot

Maintenance

    Specifications

Z travel 500 mm
